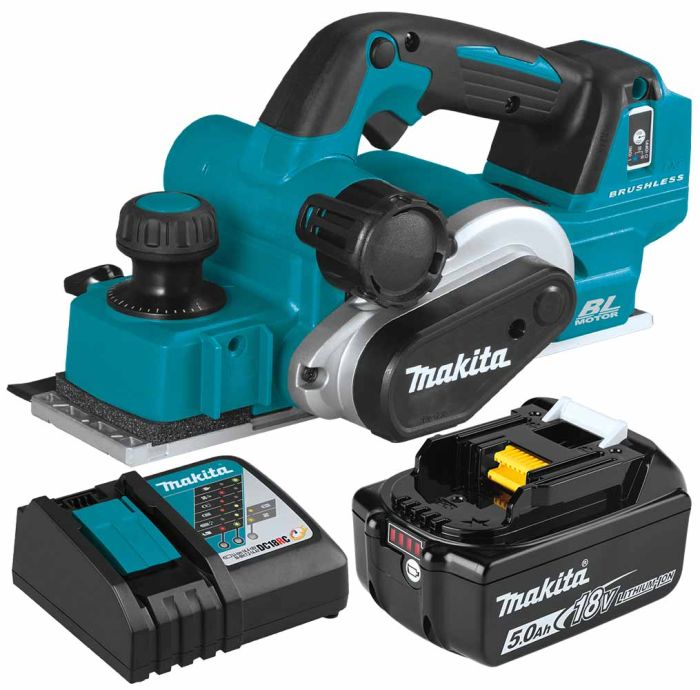

PLANER 3-1/4"2CT 18V BL 5AH BATTERY 5/64"D 12000RPM 2BLADEHEAD

INCLUDES

(1) DKP181Z 18V Brushless 3-1/4in Planer (Tool Only)
(1) 3-1/4in C.T. Mini Planer Blade
(1) Blade Gauge Assembly
(1) Guide Rule
(1) Depth Guide
(1) Socket Wrench 9
(1) 18V LXT® Lithium‑Ion Brushless Cordless 3‑1/4" Planer, AWS® Capable, Tool Only (DKP181Z)
(1) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)
(1) 18V LXT® Lithium-Ion Rapid Charger (DC18RC)

PRODUCT FEATURES

Makita-built brushless motor delivers 12,000 RPM for faster stock removal
Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
Auto-start Wireless System (AWS®) utilizes Bluetooth® technology for wireless power-on/off communication between tool and optional dust extractor
AWS® capable with Auto-start Wireless Transmitter (part no. 198901-5) sold separately
2-blade cutter head with double edge carbide blades for added performance and smooth finish
High power-to-weight ratio; weighs only 7.8 lbs. with battery (battery not included)
Planes up to 3-1/4" wide and 1/8" deep in a single pass with ability to rabbet up to 1" deep
Click depth adjustment knob with easy-to-read scale with settings from 0" to 7/64" for precise depth adjustment
Chip ejection can be directed to either side of the tool for convenience
Spring-loaded stand elevates the base to protect the blades and workpiece
Precision machined aluminum base for planing accuracy; features 3 chamfering groove options for convenience
Ergonomically centered balance with rubberized soft grips on the front and rear handles for increased comfort on the job
Easy blade setting system for fast blade installation
Electric brake for maximum productivity

PRODUCT DESCRIPTION

The 18V LXT® Brushless Cordless 3-1/4” Planer, AWS® Capable, Tool Only (XPK02Z) is engineered for door and window installers, finish carpenters, deck installers, remodelers, and general contractors seeking a brushless cordless planer.

The planer delivers 12,000 RPM for fast stock removal. It will plane up to 3-1/4” wide and 1/8” deep in a single pass. A Makita-built brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life. A 2-blade cutter head and double-edge carbide blades for added performance and a smooth finish.

Other features include a spring-loaded stand to elevate the base and protect the blades and work piece and a click-depth adjustment knob has an easy-to-read scale with settings from 0” to 7/64” for precise depth adjustment. In addition, the precision-machined aluminum base is engineered for increased planning accuracy and offers three chamfering groove options. Chip ejection can be directed to either side of the tool for convenience. The blade setting system is engineered for fast blade installation, with an electric brake for maximum productivity.

The Makita® LXT Cordless System, the world’s largest cordless tool system powered by 18V lithium-ion slide-style batteries, takes a user from power tools to outdoor power equipment to get the job done. Makita 18V LXT Batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

Auto-Start Wireless System (AWS®) uses Bluetooth® technology for wireless power-on and power-off communication between the equipped tool and dust extractor. Once connected via AWS, the AWS-equipped dust extractor will automatically power on or off when the AWS-equipped cordless tool starts or stops, running only when the tool is in use. This increases productivity on a single charge and reduces continuous noise at the job or work site. AWS is activated with an AWS Wireless Transmitter (198901-5, sold separately).

TECHNICAL SPECIFICATIONS

No Load Speed : 12,000 RPM
Planing Width : 3-1/4"
Planing Depth : 1/8"
Overall Length : 12-19/32"
Net Weight (with battery, sold separately) : 6.5 lbs.
Automatic-start Wireless System (AWS®) : Capable (transmitter sold separately)
Battery : 18V LXT® Lithium-Ion
Max. no load speed : 12,000 RPM
Power Type : Cordless
Form Factor (LXT) : 18V LXT®
Motor Type : Brushless
Packaged Depth (in) : 8.07"
Packaged Height (in) : 8.07"
Packaged Width (in) : 15.32"
Shipping Weight : 15 lbs
