PUMP 1/2 HP 30-50PSI USA 115/230V 60HZ 3500RPM
PRODUCT FEATURES
Pumps are manufacturer tested and may contain water inside from such testing,
See all sketch images for more details, NEMA standard, 60 Hz, 1/2 HP, 115/230 V capacitor start, single phase, 3500 RPM
Built-in overload with automatic reset, stainless steel shaft, pressure regulator included.
Rotation: Clockwise when viewed from motor end, UL778 listed
Pipe connections: 1. 25" Npt suction and 1" Npt discharge, pressure switch: as4 preset (30-50 PSI).
Pumps are manufacturer tested and may contain water inside from such testing,
See all sketch images for more details, NEMA standard, 60 Hz, 1/2 HP, 115/230 V capacitor start, single phase, 3500 RPM
Built-in overload with automatic reset, stainless steel shaft, pressure regulator included.
Rotation: Clockwise when viewed from motor end, UL778 listed
Pipe connections: 1. 25" Npt suction and 1" Npt discharge, pressure switch: as4 preset (30-50 PSI).
In stock
Only 3 left
SKU
GOULD-J5S
TTD4,099.01
INCLUDES

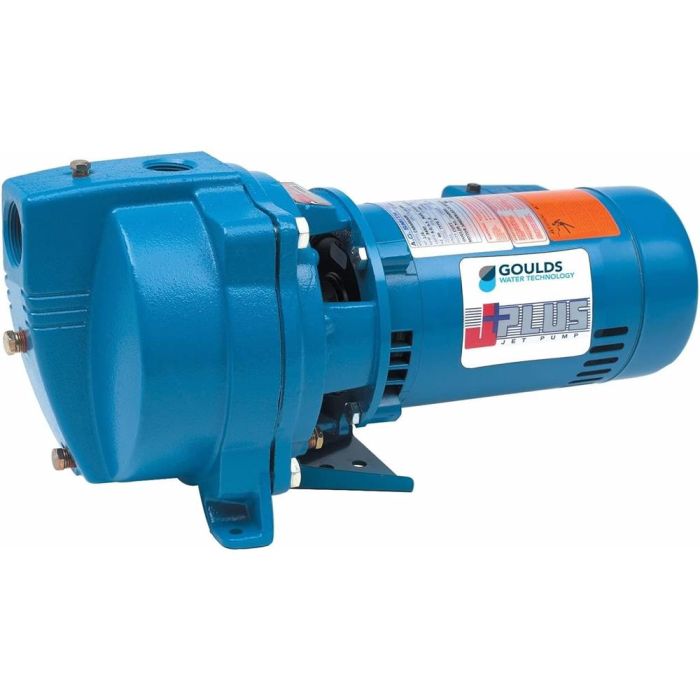

(1) Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
PRODUCT DESCRIPTION
Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. SERVICEABLE: Back pullout design allows disassembly of pump for service without disturbing piping. Two compartment motor for easy access to motor wiring and replaceable components. Nozzle clean out plug in pump case. Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring Impeller: F. D. A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Diffuser (Guide vane): Bolt down diffuser provides positive alignment with impeller. Diffuser also has stainless wear ring for extended performance in abrasive conditions. F. D. A. compliant, injection molded, food grade, glass filled Lexan for durability and abrasion resistance. Tubing and Fittings: F. D. A. compliant engineered plastic is corrosion and U. V. resistant. Powered for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage. Corrosion Resistant: Electro-coated paint process is applied inside and out, then baked on. Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve. Specifically designed for the following uses: Homes, Cottages & Booster service MAXIMUM TEMPERATURE: 140°F. SYSTEM COMPONENTS: Basic Pump Unit: Includes pump with integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing.
TECHNICAL SPECIFICATIONS
Manufacturer: ?Goulds Pump
Part Number: ?J5S
Item Weight: ?40.9lbs
Product Dimensions: ?17.25 x 9.88 x 8.75 inches
Item model number: ?J5S
Color: ?Stainless Steel
Style: ?Diaphragm
Material: ?Cast iron
Power Source: ?Ac/dc
Voltage: ?230 Volts
Horsepower: ?0.50
Item Package Quantity: ?1
Flow Rate: ?16.5 Gallons Per Minute
Included Components: ?Pump
Shipping Weight: 45lbs
(1) Goulds Pump J5S Shallow Well Jet Pump, 115/230 volt, 1/2 hp
PRODUCT DESCRIPTION
Design has an integral shallow well adapter built into the casing, which eliminates the need for a separate shallow well adapter. SERVICEABLE: Back pullout design allows disassembly of pump for service without disturbing piping. Two compartment motor for easy access to motor wiring and replaceable components. Nozzle clean out plug in pump case. Corrosion resistant, engineered plastic tubing and fittings are easily removed for cleaning. Premium O-ring Impeller: F. D. A. compliant, glass filled Noryl. Corrosion and abrasion resistant. Diffuser (Guide vane): Bolt down diffuser provides positive alignment with impeller. Diffuser also has stainless wear ring for extended performance in abrasive conditions. F. D. A. compliant, injection molded, food grade, glass filled Lexan for durability and abrasion resistance. Tubing and Fittings: F. D. A. compliant engineered plastic is corrosion and U. V. resistant. Powered for Continuous Operation: Pump ratings are within the motor manufacturer's recommended working limits. Can be operated continuously without damage. Corrosion Resistant: Electro-coated paint process is applied inside and out, then baked on. Protected Mechanical Seal: Special diaphragm design retains water in the casing at all times to ensure the mechanical seal can never run dry. Excellent Air Handling Ability: After initial priming the pump has the ability to re-prime itself even when air gets into the system. Pumping resumes once the water level rises above the foot valve. Specifically designed for the following uses: Homes, Cottages & Booster service MAXIMUM TEMPERATURE: 140°F. SYSTEM COMPONENTS: Basic Pump Unit: Includes pump with integral shallow well jet (nozzle and venturi), motor, pressure switch and tubing.
TECHNICAL SPECIFICATIONS
Manufacturer: ?Goulds Pump
Part Number: ?J5S
Item Weight: ?40.9lbs
Product Dimensions: ?17.25 x 9.88 x 8.75 inches
Item model number: ?J5S
Color: ?Stainless Steel
Style: ?Diaphragm
Material: ?Cast iron
Power Source: ?Ac/dc
Voltage: ?230 Volts
Horsepower: ?0.50
Item Package Quantity: ?1
Flow Rate: ?16.5 Gallons Per Minute
Included Components: ?Pump
Shipping Weight: 45lbs
| SKU | GOULD-J5S |
|---|---|
| Weight | 45.000000 |
| Manufacturer | GOULDS WATER TECHNOLOGY |
