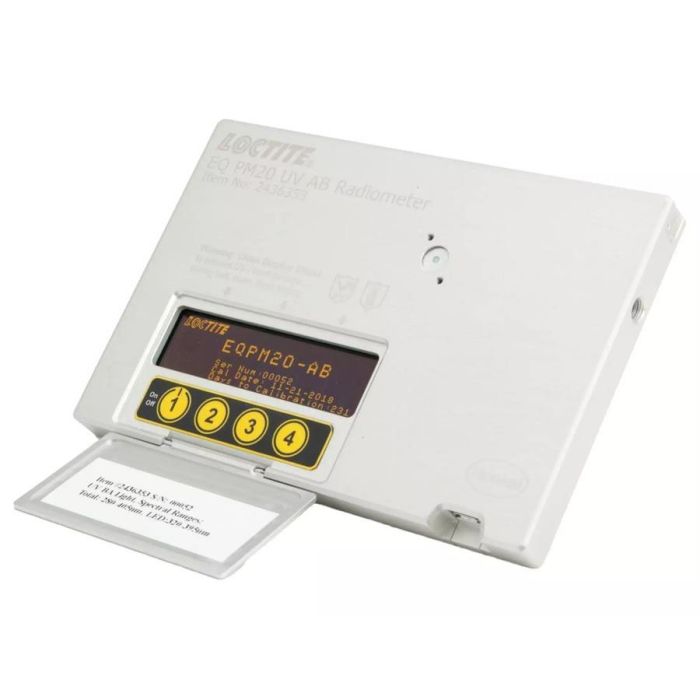

RADIOMETERS PM20 UV FOR USE OF LED CURING DEVICES
PRODUCT FEATURES
Designed for use with LOCTITE LED and bulb-based curing systems
Solid-state detector & ultra-stable amplifier technology
-Lower noise, greater speed, & higher accuracy
Digital display of peak intensity & total exposure
Graphical display (intensity vs. time)
Baseline profile reference plot (compare current performance of the curing unit with base line).
Built-in rechargeable battery (USB cable included).
Spectral Measurement Ranges:
-Total Range: 280 - 405nm
-LED Range: 320 - 395nm
Intensity dose range: 5 mW/cm² - 4 mW/cm²
Min. Operating Temperature: +50°F
Max. Operating Temperature: +122°F
Accuracy: Typically better than 6%
Digital display: 4 significant digits
NIST Traceable Calibration (Recommended every 12 months)
Dimensions: 152.4mm (W) x 101.6mm (D) x 12.7mm (H)
INCLUDES
(1) Loctite EQ PM 20 UV AB Radiometer - LOCTITE 2436353, IDH: 2436353
(1) PMUV 20 Radiometer
(1) micro USB 2.0 charging / data cable
(1) meter storage/ shipping case
(1) calibration certificate
(1) operating manual
Designed for use with LOCTITE LED and bulb-based curing systems
Solid-state detector & ultra-stable amplifier technology
-Lower noise, greater speed, & higher accuracy
Digital display of peak intensity & total exposure
Graphical display (intensity vs. time)
Baseline profile reference plot (compare current performance of the curing unit with base line).
Built-in rechargeable battery (USB cable included).
Spectral Measurement Ranges:
-Total Range: 280 - 405nm
-LED Range: 320 - 395nm
Intensity dose range: 5 mW/cm² - 4 mW/cm²
Min. Operating Temperature: +50°F
Max. Operating Temperature: +122°F
Accuracy: Typically better than 6%
Digital display: 4 significant digits
NIST Traceable Calibration (Recommended every 12 months)
Dimensions: 152.4mm (W) x 101.6mm (D) x 12.7mm (H)
INCLUDES
(1) Loctite EQ PM 20 UV AB Radiometer - LOCTITE 2436353, IDH: 2436353
(1) PMUV 20 Radiometer
(1) micro USB 2.0 charging / data cable
(1) meter storage/ shipping case
(1) calibration certificate
(1) operating manual
In stock
Only 1 left
SKU
LOC-2436353
TTD21,099.00
PRODUCT DESCRIPTION
LOCTITE® PM20 Radiometer is available in two configurations: UV visible and UV A/B wavelengths. They provide intensity measurement of LED light curing devices. The PM20 UV VIS Radiometer (item #2436352) is used to measure LED light curing devices that emit visible light wavelengths, while the PM20 UV AB Radiometer (Item #2436353) is used to measure LED light curing devices that emit in the UVA and UVB wavelengths. Each of the radiometers combines all-in-one exposure, intensity measurement, and profile memory capability into one device. The flat response curve makes these radiometers uniquely qualified to measure narrow band wavelengths of LED light curing devices.
TECHNICAL SPECIFICATIONS
SKU: 2436353
Brand: Loctite
Product category: Process control and monitoring systems for light curing systems
Technologies: Specialties, equipment
Applications: LED spot curing
Light intensity: 5.0 W/cm² - 40.0 W/cm²
Operating type: UV vis
Used to dispense: UV and visible light cure adhesives
Item Weight: 5.51lbs
Shipping Weight: 6lbs
LOCTITE® PM20 Radiometer is available in two configurations: UV visible and UV A/B wavelengths. They provide intensity measurement of LED light curing devices. The PM20 UV VIS Radiometer (item #2436352) is used to measure LED light curing devices that emit visible light wavelengths, while the PM20 UV AB Radiometer (Item #2436353) is used to measure LED light curing devices that emit in the UVA and UVB wavelengths. Each of the radiometers combines all-in-one exposure, intensity measurement, and profile memory capability into one device. The flat response curve makes these radiometers uniquely qualified to measure narrow band wavelengths of LED light curing devices.
TECHNICAL SPECIFICATIONS
SKU: 2436353
Brand: Loctite
Product category: Process control and monitoring systems for light curing systems
Technologies: Specialties, equipment
Applications: LED spot curing
Light intensity: 5.0 W/cm² - 40.0 W/cm²
Operating type: UV vis
Used to dispense: UV and visible light cure adhesives
Item Weight: 5.51lbs
Shipping Weight: 6lbs
| SKU | LOC-2436353 |
|---|---|
| Weight | 6.000000 |
| Manufacturer | LOCTITE |
