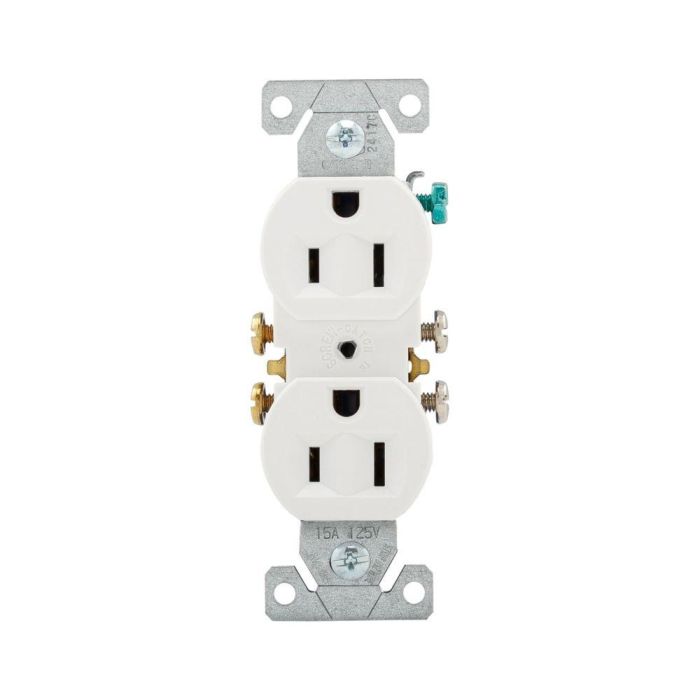

RECEPTACLE DUPLEX 15A WHT
PRODUCT FEATURES
Standard grade straight blade duplex receptacle
Feature longer, wider straps providing 40-Percent more contact area to wall board
Patented built-in wire stripper for No.14 and No.12 wire to speed installation
Tri-combo screws accept slotted, Phillips and robertson-head tools for installation flexibility. Total Outlet: 2
Standard grade straight blade duplex receptacle
Feature longer, wider straps providing 40-Percent more contact area to wall board
Patented built-in wire stripper for No.14 and No.12 wire to speed installation
Tri-combo screws accept slotted, Phillips and robertson-head tools for installation flexibility. Total Outlet: 2
In stock
Only 10 left
SKU
EATON-270W
TTD7.00
INCLUDES
(1) STRAIGHT BLADE RECEPTACLES 270W
PRODUCT DESCRIPTION
Eaton residential grade duplex receptacle, #14-10 AWG, 15A, Commercial|Residential, Flush, 125V, Side and push, White, Brass, Impact-resistant thermoplastic, 5-15R, Duplex, Screw, Thermoplastic, Core pack
TECHNICAL SPECIFICATIONS
DEVICE TYPE: Receptacle
TYPE: Duplex receptacle
AMPERAGE RATING:15A
VOLTAGE RATING: 125V
CONTACT MATERIAL:Brass
APPLICATION: Commercial/residential
DEVICE GRADE: Standard grade
WIRING METHOD: Side and push
NUMBER OF WIRES: 3
MOUNTING METHOD: Flush
NUMBER OF POLES: Two-pole
STYLE TYPE: Standard
MATERIAL: Thermoplastic
PACKAGING TYPE: Core pack
COLOR: White
CONNECTION TYPE: Screw
ALLOWABLE WIRE SIZE: #14-10 AWG
NEMA CONFIGURATION: 5-15R
TORQUE RATING: 14 lbf-inch
DESIGN TYPE: Straight blade
FACE/BODY MATERIAL: Impact-resistant thermoplastic
RECEPTACLE TYPE: Duplex
ITEM WEIGHT: 0.08lbs
SHIPPING WEIGHT: 1lb
(1) STRAIGHT BLADE RECEPTACLES 270W
PRODUCT DESCRIPTION
Eaton residential grade duplex receptacle, #14-10 AWG, 15A, Commercial|Residential, Flush, 125V, Side and push, White, Brass, Impact-resistant thermoplastic, 5-15R, Duplex, Screw, Thermoplastic, Core pack
TECHNICAL SPECIFICATIONS
DEVICE TYPE: Receptacle
TYPE: Duplex receptacle
AMPERAGE RATING:15A
VOLTAGE RATING: 125V
CONTACT MATERIAL:Brass
APPLICATION: Commercial/residential
DEVICE GRADE: Standard grade
WIRING METHOD: Side and push
NUMBER OF WIRES: 3
MOUNTING METHOD: Flush
NUMBER OF POLES: Two-pole
STYLE TYPE: Standard
MATERIAL: Thermoplastic
PACKAGING TYPE: Core pack
COLOR: White
CONNECTION TYPE: Screw
ALLOWABLE WIRE SIZE: #14-10 AWG
NEMA CONFIGURATION: 5-15R
TORQUE RATING: 14 lbf-inch
DESIGN TYPE: Straight blade
FACE/BODY MATERIAL: Impact-resistant thermoplastic
RECEPTACLE TYPE: Duplex
ITEM WEIGHT: 0.08lbs
SHIPPING WEIGHT: 1lb
| SKU | EATON-270W |
|---|---|
| Weight | 1.000000 |
| Manufacturer | EATON |
