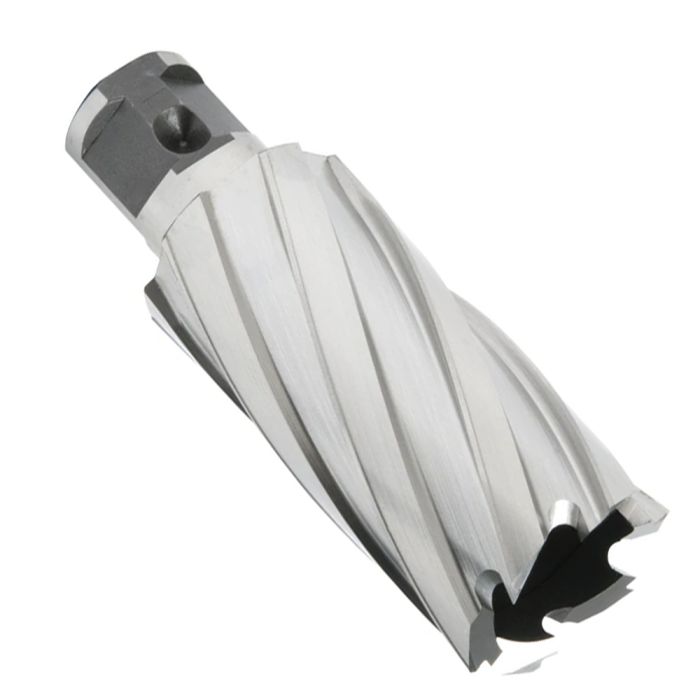

BIT 22MM X2"HSS FS2 ROTAB
PRODUCT FEATURES
Hardened M2 high-speed steel material
Precision ground & fully fluted provides better chip evacuation, require less horsepower & offer better performance in deeper holes
3/4" double flatted shank is very rigid & offers up to 2 times the tool life as compared to quick change tool mounting on competitive products
Only a thin area of material touches the outside of the hole which provides for less friction and a better hole finish
Patented hougen-edge geometry provides faster, smoother cuts, with less chatter
The tapered inner diameter provides a relief area between the slug & cutter to reduce horsepower & improve slug ejection
Up to 10 cutting edges distribute the cutting load evenly to maximize feed rates
The slug offers a higher scrap value than loose chips
INCLUDES
(1) Hougen 12422 22MM X 50MM "12,000-Series" Annular Cutter
Hardened M2 high-speed steel material
Precision ground & fully fluted provides better chip evacuation, require less horsepower & offer better performance in deeper holes
3/4" double flatted shank is very rigid & offers up to 2 times the tool life as compared to quick change tool mounting on competitive products
Only a thin area of material touches the outside of the hole which provides for less friction and a better hole finish
Patented hougen-edge geometry provides faster, smoother cuts, with less chatter
The tapered inner diameter provides a relief area between the slug & cutter to reduce horsepower & improve slug ejection
Up to 10 cutting edges distribute the cutting load evenly to maximize feed rates
The slug offers a higher scrap value than loose chips
INCLUDES
(1) Hougen 12422 22MM X 50MM "12,000-Series" Annular Cutter
In stock
Only 2 left
SKU
HOUG-12422
Attachments (1)
PRODUCT DESCRIPTION
For use with HougenĀ® Portable Magnetic Drills and many competitive models on materials up to 275 BHN (28.5 HRC). They are made of hardened M2 high-speed steel and are precision ground for excellent performance throughout the cut and long tool life. They require less horsepower and thrust to cut, and last much longer than traditional holemaking methods. "12,000-Series" cutters have a 3/4" diameter double-flatted shank. Modified end tooth geometry is also available for drilling in stacked plate applications. For extended tool life and lower cost per hole 12,000-Series Cutters are resharpenable.
Benefits
Makes large diameter holes efficiently without the mess of chips
A hole produces a slug of material that could be used for another job
TECHNICAL SPECIFICATIONS
SKU: 12422
Brand: ?Hougen
Item dimensions L x W x H: ?1.13 x 1.13 x 4.13 inches
Tool Flute Type: ?Straight
UPC: ?662850003510
Unit Count: ?1.0 Count
Manufacturer: ?Hougen Manufacturing
Part Number: ?12422
Item Weight: 0.28lbs
Shipping Weight: 1lb
For use with HougenĀ® Portable Magnetic Drills and many competitive models on materials up to 275 BHN (28.5 HRC). They are made of hardened M2 high-speed steel and are precision ground for excellent performance throughout the cut and long tool life. They require less horsepower and thrust to cut, and last much longer than traditional holemaking methods. "12,000-Series" cutters have a 3/4" diameter double-flatted shank. Modified end tooth geometry is also available for drilling in stacked plate applications. For extended tool life and lower cost per hole 12,000-Series Cutters are resharpenable.
Benefits
Makes large diameter holes efficiently without the mess of chips
A hole produces a slug of material that could be used for another job
TECHNICAL SPECIFICATIONS
SKU: 12422
Brand: ?Hougen
Item dimensions L x W x H: ?1.13 x 1.13 x 4.13 inches
Tool Flute Type: ?Straight
UPC: ?662850003510
Unit Count: ?1.0 Count
Manufacturer: ?Hougen Manufacturing
Part Number: ?12422
Item Weight: 0.28lbs
Shipping Weight: 1lb
| SKU | HOUG-12422 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | HOUGEN |
