ALARM FIRE MANUAL STATION
GE Security 270 Series Non-Coded Fire Alarm Stations are sturdy; attractive; and designed for economical installation.
The station is available in the following operational and functional designs:
? The 270 Series provides a single action; break glass initiating station. It is available with normally open (N.O.); normally closed (N.C.) or combination N.O./N.C. contacts. The basic 270 Series have screw terminals for field connection. The 270A Series Manual Stations have 6 inch (150mm) wire leads.
? The 270P Series is a break glass; normally open pre-signal station. The pull of the lever sounds an alarm on all pre-signal indicating devices. Inserting a key and turning it will initiate a general evacuation alarm. Screw terminals are provided for field connection.
All non-coded statins are designed for either flush or surface mounting. For flush mounting a 4 inch standard North American square box with single gang plaster cover should be used. For surface mounting the 270 Series or 270P Series; use P-027193 Cast Box; P-039250 Steel Box; or Cat. No. 1291 Housing for weatherproof enclosure. Standard Features:-
?Pull lever
?Simple positive operation
?Break glass
?Attractive; streamline design
?Less than 5 lb pull force complies with ADA
?Solid; die-cast metal construction
Related Items

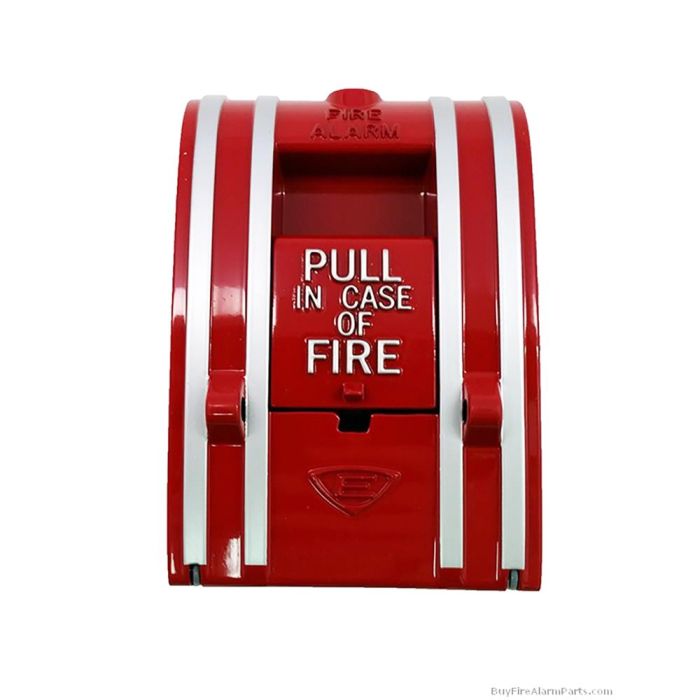

Product Photo
Technical Specification
Related Products
----------------------------------------------------------------- ---------------
The station is available in the following operational and functional designs:
? The 270 Series provides a single action; break glass initiating station. It is available with normally open (N.O.); normally closed (N.C.) or combination N.O./N.C. contacts. The basic 270 Series have screw terminals for field connection. The 270A Series Manual Stations have 6 inch (150mm) wire leads.
? The 270P Series is a break glass; normally open pre-signal station. The pull of the lever sounds an alarm on all pre-signal indicating devices. Inserting a key and turning it will initiate a general evacuation alarm. Screw terminals are provided for field connection.
All non-coded statins are designed for either flush or surface mounting. For flush mounting a 4 inch standard North American square box with single gang plaster cover should be used. For surface mounting the 270 Series or 270P Series; use P-027193 Cast Box; P-039250 Steel Box; or Cat. No. 1291 Housing for weatherproof enclosure. Standard Features:-
?Pull lever
?Simple positive operation
?Break glass
?Attractive; streamline design
?Less than 5 lb pull force complies with ADA
?Solid; die-cast metal construction
Related Items
Product Photo
Technical Specification
Related Products
----------------------------------------------------------------- ---------------
In stock
Only 1 left
SKU
ES-M270A-SPO
TTD156.94
GE Security 270 Series Non-Coded Fire Alarm Stations are sturdy; attractive; and designed for economical installation.
The station is available in the following operational and functional designs:
? The 270 Series provides a single action; break glass initiating station. It is available with normally open (N.O.); normally closed (N.C.) or combination N.O./N.C. contacts. The basic 270 Series have screw terminals for field connection. The 270A Series Manual Stations have 6 inch (150mm) wire leads.
? The 270P Series is a break glass; normally open pre-signal station. The pull of the lever sounds an alarm on all pre-signal indicating devices. Inserting a key and turning it will initiate a general evacuation alarm. Screw terminals are provided for field connection.
All non-coded statins are designed for either flush or surface mounting. For flush mounting a 4 inch standard North American square box with single gang plaster cover should be used. For surface mounting the 270 Series or 270P Series; use P-027193 Cast Box; P-039250 Steel Box; or Cat. No. 1291 Housing for weatherproof enclosure. Standard Features:-
?Pull lever
?Simple positive operation
?Break glass
?Attractive; streamline design
?Less than 5 lb pull force complies with ADA
?Solid; die-cast metal construction
Related Items
Product Photo
Technical Specification
Related Products
----------------------------------------------------------------- ---------------
The station is available in the following operational and functional designs:
? The 270 Series provides a single action; break glass initiating station. It is available with normally open (N.O.); normally closed (N.C.) or combination N.O./N.C. contacts. The basic 270 Series have screw terminals for field connection. The 270A Series Manual Stations have 6 inch (150mm) wire leads.
? The 270P Series is a break glass; normally open pre-signal station. The pull of the lever sounds an alarm on all pre-signal indicating devices. Inserting a key and turning it will initiate a general evacuation alarm. Screw terminals are provided for field connection.
All non-coded statins are designed for either flush or surface mounting. For flush mounting a 4 inch standard North American square box with single gang plaster cover should be used. For surface mounting the 270 Series or 270P Series; use P-027193 Cast Box; P-039250 Steel Box; or Cat. No. 1291 Housing for weatherproof enclosure. Standard Features:-
?Pull lever
?Simple positive operation
?Break glass
?Attractive; streamline design
?Less than 5 lb pull force complies with ADA
?Solid; die-cast metal construction
Related Items
Product Photo
Technical Specification
Related Products
----------------------------------------------------------------- ---------------
| SKU | ES-M270A-SPO |
|---|---|
| Weight | 1.000000 |
| Manufacturer | EDWARDS |
