BAR PUSH-TO-EXIT DEVICE RUGGED GRADE 1 RIM-TYPE

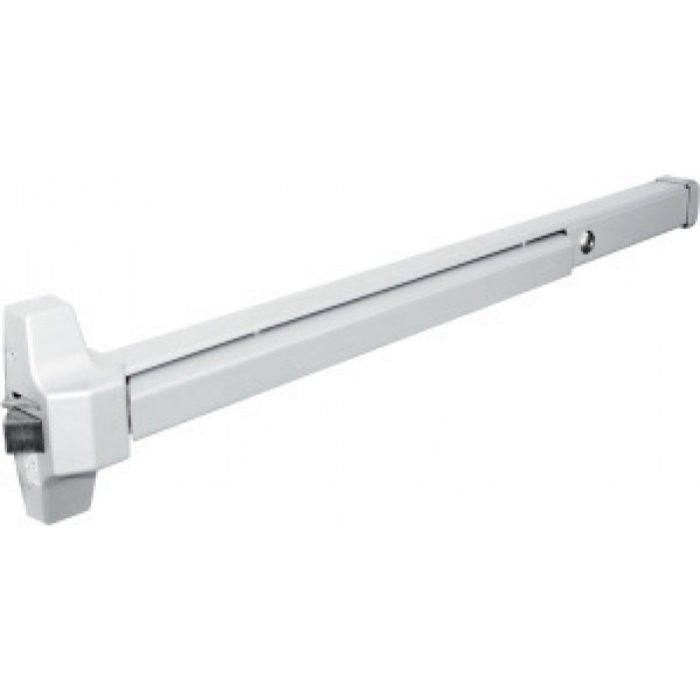

SL-SD962AR36A – BAR PUSH-TO-EXIT DEVICE Rim-Type Exit Device for Exit Doors, Push-to-Exit Bar SECO-LARM's SD-962AR-36A exit device, when mounted on the inside of a door to block entry to a protected premises, securely locks the door from outside access while allowing users inside the protected premises to exit. The stainless-steel enclosure protection. • Pushbar is UL Listed in the U.S. • Allows exit from inside while locked from outside • Reversible, non-handed design • For metal or wood doors up to 13/4" (44mm) thick • Stainless-steel 3/4" (19mm) throw latch bolt • Separate deadlocking latch -- Prevents the use of credit cards or similar means to open the latch bolt • Allen-type 1/4-turn dogging lock -- Allows the exit bar to be unlocked for extended periods of time • Includes all needed hardware for typical installations • Works with standard external door handle/lock devices such as the SD-962HL-4A (not included) • Fits doors from 30" (76cm) to 48" (122cm) wide • Heavy-duty steel construction • Stainless steel spring Door Type 1-3/4" (44mm) thick, wood or metal Hand Type Non-handed Latch Bolt Stainless steel, 3/4" (19mm) throw Dead Latch Stainless steel, 5/8" (16mm) Strike For 5/8"(16mm) stop plus shim for 1/2" (12.5mm) stop Spring Stainless steel Chassis Steel Cover High-density, rust-resistant alloy Rail Assembly Steel End Cap Steel Dogging Allen-type dogging standard
