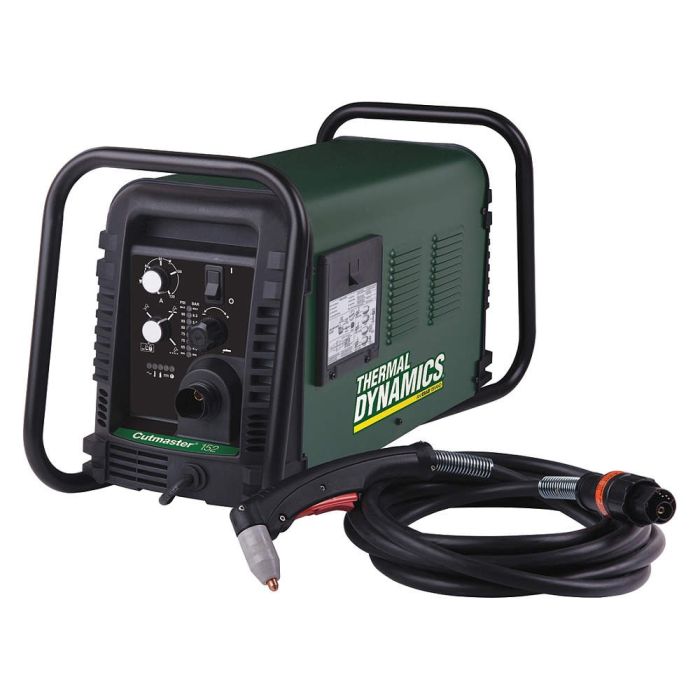

PLASMA CUTMASTR 152 SL100 20'220V 1/3PH MX-2/1"120A
PRODUCT FEATURES
TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
Color Coded LED’s indicate pressure status and setup errors
All user controls are conveniently located on the front panel
Lightweight design improves portability (Reduced nearly 50%)
Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Multiple Torch Capability (Hand, Mechanized, Automation)
The Industry’s only 60 Amp Drag Tip
Convenient storage compartment for spare and consumable parts
Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
Power Supply
20 ft. (6.1m) Lead
1Torch SL100, 75 deg. Head
10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
Spare Parts Kit
Operating Manual
Front Panel LEDs indicate status conditions for maximum efficiency.
Storage compartment for convenient access to spare parts and consumables
True Guard roll bar provides easy transportation and protection for unmatched durability
Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
Multi-voltage allows operation from 208 to 480 Volts in a single power supply
Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Lighter weight design for maximum portability
TRUE GUARD roll bar provides easy transportation and protects the front and rear of the power supply for unmatched durability
Color Coded LED’s indicate pressure status and setup errors
All user controls are conveniently located on the front panel
Lightweight design improves portability (Reduced nearly 50%)
Trigger latch feature prevents hand fatigue during long cuts. Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Multiple Torch Capability (Hand, Mechanized, Automation)
The Industry’s only 60 Amp Drag Tip
Convenient storage compartment for spare and consumable parts
Universal selectable input power from 208 to 460 VAC + 10%, single or three phase, 50 or 60 Hz.
Power Supply
20 ft. (6.1m) Lead
1Torch SL100, 75 deg. Head
10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
Spare Parts Kit
Operating Manual
Front Panel LEDs indicate status conditions for maximum efficiency.
Storage compartment for convenient access to spare parts and consumables
True Guard roll bar provides easy transportation and protection for unmatched durability
Versatile 1Torch with ATC disconnect makes it easy to add lead extensions or convert to a machine torch
Multi-voltage allows operation from 208 to 480 Volts in a single power supply
Auto Pilot Restart feature instantly reignites the pilot arc while cutting expanded metals
Lighter weight design for maximum portability
Out of stock
SKU
VIC-1-1730-1
TTD53,999.00
INCLUDES
(1) Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 20 ft Leads, 208-230V, 1Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1730-1
PRODUCT DESCRIPTION
CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 152 is the heavy weight of hand held cutting systems. This unit comes in a compact-light weight package, but don’t let that fool you. It offers enough cutting power to cut 2.
TECHNICAL SPECIFICATIONS
Process(es): Manual Air Plasma Cutting
Industrial Applications: Heavy Fabrication
Manufacturing: Contractors
Amperage Range: 20-120 Amps
Maximum Amperage Output: 120A
Output Power: 15.4 kW
Recommended Cut: 1 1/4" (30 mm)
Maximum Cut: 2" (50 mm)
Pierce Rating: 1" (25 mm)
Input Voltage: 208/230V 1/3 Phase 50/60 Hz Ready
Duty Cycle (@ 40 deg C): 60% @ 120A
Amperage Draw: 120A @ 230V, 1 ph 56A @ 230V, 3 ph: Pilot, Start Cartridge:
Dimensions (H x W x D): 15" (381 mm) x 12" (305 mm) x 30" (762 mm)
Weight: 62 lbs (28.1kg)
Certifications: IP23S
Hand, Automated & Mechanized: SL100:
Air Pressure: 70 psi (4.8 bar)
Flow: 7.5 cfm (212 l/m)
SHIPPING DIMENSIONS
Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Item Weight: 62 Lbs
Shipping Weight: 64lbs
(1) Cutmaster 152 Plasma System, 120 Amp, SL100, 75 Deg Head, 20 ft Leads, 208-230V, 1Ph, 50/60Hz Ready, Multi-Voltage/Phase Capable #1-1730-1
PRODUCT DESCRIPTION
CUTMASTER® TRUE™ Series has been designed with the idea that recommended cut capacity should also be the TRUE cut capacity. The TRUE Cut Series eliminates the concept of having to “buy up”, purchasing a machine larger than you actually need. With the introduction of the CUTMASTER TRUE Series, a one-half inch recommended capacity machine will cut one-half inch material ALL DAY, EVERY DAY. NO EXCEPTIONS. The CUTMASTER® 152 is the heavy weight of hand held cutting systems. This unit comes in a compact-light weight package, but don’t let that fool you. It offers enough cutting power to cut 2.
TECHNICAL SPECIFICATIONS
Process(es): Manual Air Plasma Cutting
Industrial Applications: Heavy Fabrication
Manufacturing: Contractors
Amperage Range: 20-120 Amps
Maximum Amperage Output: 120A
Output Power: 15.4 kW
Recommended Cut: 1 1/4" (30 mm)
Maximum Cut: 2" (50 mm)
Pierce Rating: 1" (25 mm)
Input Voltage: 208/230V 1/3 Phase 50/60 Hz Ready
Duty Cycle (@ 40 deg C): 60% @ 120A
Amperage Draw: 120A @ 230V, 1 ph 56A @ 230V, 3 ph: Pilot, Start Cartridge:
Dimensions (H x W x D): 15" (381 mm) x 12" (305 mm) x 30" (762 mm)
Weight: 62 lbs (28.1kg)
Certifications: IP23S
Hand, Automated & Mechanized: SL100:
Air Pressure: 70 psi (4.8 bar)
Flow: 7.5 cfm (212 l/m)
SHIPPING DIMENSIONS
Height: 15.00 Inches
Width: 12.00 Inches
Length: 30.00 Inches
Item Weight: 62 Lbs
Shipping Weight: 64lbs
| SKU | VIC-1-1730-1 |
|---|---|
| Weight | 64.000000 |
| Manufacturer | VICTOR TECHNOLOGIES |
