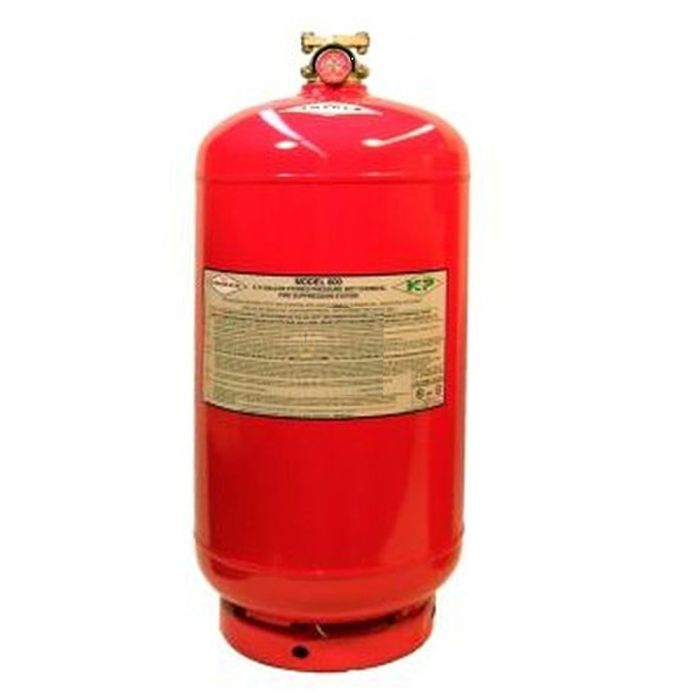

CYLINDER ASSY AGENT KP600
Agent Cylinder Assembly - KP600; 6.14 US gallons (23.2 L)
?6.14 Gallon Capacity Cylinder
?Amerex Restaurant Systems Parts
?Discharge valve
?Filled & charged
?Mild steel DOT 4BW 240 specification cylinders. AGENT CYLINDER/ASSEMBLY-KP600 (P/N 15196)
Amerex KP600 û 6.14 Gallon Capacity û Agent Cylinder
Assembly is shipped factory filled with Amerex KP Liquid Agent. It
is pressurized with dry Nitrogen to a pressure of 240 psi (1655 kPa)
at 70¦F (20¦C). The nitrogen charge is the expellant gas which
discharges the KP agent through the distribution network. Cylinders
are shipped from the factory with a shipping plate installed on the top
of the valve to prevent accidental discharge and an anti-recoil plate
on the valve outlet to redirect chemical flow should an accidental
discharge occur. BOTH OF THESE PLATES MUST BE REMOVED
AT INSTALLATION.
Agent cylinders are DOT 4BW240; tested to 480 psi (3309 kPa) and
require a hydrostatic test every twelve (12) years. The
operating temperature of this and other listed components is 32¦F to
120¦F (0¦C to 49¦C ). The cylinder is fitted with an attachment
bracket welded to the cylinder for ease of installation. The machined;
forged brass discharge valve is actuated via a pneumatic actuator.
The mechanical release module supplies the N2 required for
actuation of one (1) to six (6) KP600 agent cylinder assemblies.
?6.14 Gallon Capacity Cylinder
?Amerex Restaurant Systems Parts
?Discharge valve
?Filled & charged
?Mild steel DOT 4BW 240 specification cylinders. AGENT CYLINDER/ASSEMBLY-KP600 (P/N 15196)
Amerex KP600 û 6.14 Gallon Capacity û Agent Cylinder
Assembly is shipped factory filled with Amerex KP Liquid Agent. It
is pressurized with dry Nitrogen to a pressure of 240 psi (1655 kPa)
at 70¦F (20¦C). The nitrogen charge is the expellant gas which
discharges the KP agent through the distribution network. Cylinders
are shipped from the factory with a shipping plate installed on the top
of the valve to prevent accidental discharge and an anti-recoil plate
on the valve outlet to redirect chemical flow should an accidental
discharge occur. BOTH OF THESE PLATES MUST BE REMOVED
AT INSTALLATION.
Agent cylinders are DOT 4BW240; tested to 480 psi (3309 kPa) and
require a hydrostatic test every twelve (12) years. The
operating temperature of this and other listed components is 32¦F to
120¦F (0¦C to 49¦C ). The cylinder is fitted with an attachment
bracket welded to the cylinder for ease of installation. The machined;
forged brass discharge valve is actuated via a pneumatic actuator.
The mechanical release module supplies the N2 required for
actuation of one (1) to six (6) KP600 agent cylinder assemblies.
In stock
Only 2 left
SKU
AMX-15196
TTD10,659.00
Agent Cylinder Assembly - KP600; 6.14 US gallons (23.2 L)
?6.14 Gallon Capacity Cylinder
?Amerex Restaurant Systems Parts
?Discharge valve
?Filled & charged
?Mild steel DOT 4BW 240 specification cylinders. AGENT CYLINDER/ASSEMBLY-KP600 (P/N 15196)
Amerex KP600 û 6.14 Gallon Capacity û Agent Cylinder
Assembly is shipped factory filled with Amerex KP Liquid Agent. It
is pressurized with dry Nitrogen to a pressure of 240 psi (1655 kPa)
at 70¦F (20¦C). The nitrogen charge is the expellant gas which
discharges the KP agent through the distribution network. Cylinders
are shipped from the factory with a shipping plate installed on the top
of the valve to prevent accidental discharge and an anti-recoil plate
on the valve outlet to redirect chemical flow should an accidental
discharge occur. BOTH OF THESE PLATES MUST BE REMOVED
AT INSTALLATION.
Agent cylinders are DOT 4BW240; tested to 480 psi (3309 kPa) and
require a hydrostatic test every twelve (12) years. The
operating temperature of this and other listed components is 32¦F to
120¦F (0¦C to 49¦C ). The cylinder is fitted with an attachment
bracket welded to the cylinder for ease of installation. The machined;
forged brass discharge valve is actuated via a pneumatic actuator.
The mechanical release module supplies the N2 required for
actuation of one (1) to six (6) KP600 agent cylinder assemblies.
?6.14 Gallon Capacity Cylinder
?Amerex Restaurant Systems Parts
?Discharge valve
?Filled & charged
?Mild steel DOT 4BW 240 specification cylinders. AGENT CYLINDER/ASSEMBLY-KP600 (P/N 15196)
Amerex KP600 û 6.14 Gallon Capacity û Agent Cylinder
Assembly is shipped factory filled with Amerex KP Liquid Agent. It
is pressurized with dry Nitrogen to a pressure of 240 psi (1655 kPa)
at 70¦F (20¦C). The nitrogen charge is the expellant gas which
discharges the KP agent through the distribution network. Cylinders
are shipped from the factory with a shipping plate installed on the top
of the valve to prevent accidental discharge and an anti-recoil plate
on the valve outlet to redirect chemical flow should an accidental
discharge occur. BOTH OF THESE PLATES MUST BE REMOVED
AT INSTALLATION.
Agent cylinders are DOT 4BW240; tested to 480 psi (3309 kPa) and
require a hydrostatic test every twelve (12) years. The
operating temperature of this and other listed components is 32¦F to
120¦F (0¦C to 49¦C ). The cylinder is fitted with an attachment
bracket welded to the cylinder for ease of installation. The machined;
forged brass discharge valve is actuated via a pneumatic actuator.
The mechanical release module supplies the N2 required for
actuation of one (1) to six (6) KP600 agent cylinder assemblies.
| SKU | AMX-15196 |
|---|---|
| Weight | 114.000000 |
| Manufacturer | AMEREX |
