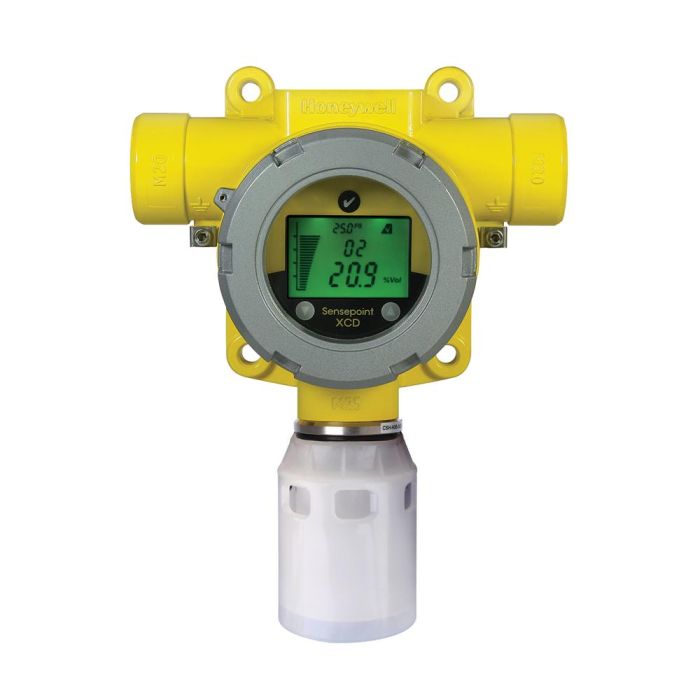

DETECTOR GAS COMBUSTIBLE
Honeywell XCD Sensepoint Gas Detector; CATALYTIC BEAD combustible 0-100% LEL (Lower Explosive Limit) Methane CH4 (natural gas) with Epoxy painted aluminium alloy LM25 housing; stainless steel sensor head; explosion-proof IP66; provides comprehensive monitoring of flammable gas hazards in potentially explosive atmospheres; both indoors and outdoors. 3-wire 24 VDC power; include 2 programmable alarm relays; 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable); Modbus RTU option available. User-Selectable full scale range 20%-100%; can be calibrated to several other combustible gases. UL/CSA Class I Division 1 or ATEX IECEx available.
FEATURES
One-Stop Shop
Flammable (catalytic or infrared); toxic and oxygen versions available
New and retrofit applications
Suitable for indoor or outdoor use
Stainless steel or aluminium explosion-proof housing options
IP66 as standard
Proven and Reliable Sensor Technology
SurecellTM electrochemical sensors
Reflex? sensor health check
Poison immune infrared sensors
Poison resistant catalytic bead sensors
Long life sensors
Global Approvals
US and Latin America; European; Canadian and Asian
Compliant with UL; INMETRO; ATEX; IECEx; CSA; KTL; PA; GB and CCCF standards
Easy to Use
User friendly and intuitive tri-colour backlit display with digits; bar graph and icons
Fully configurable via magnetic switches
Selectable sink or source 4-20mA output
Auto-inhibit during maintenance
MODBUS communications for remote diagnostics/configuration
Cost Effective
Common transmitter platform
Minimal training required
Reduced spares
Non-intrusive; one-man operation
Plug-in sensor replacement
MODBUS multi drop option offers cabling savings
Simple Installation
Plug-in display module removes to give access to terminal area
Integral mounting bracket
2 x M20 or 3?4? NPT cable/conduit entries (certification dependent)
Removable plug/socket type terminal blocks for ease of wiring
Sink/source switch to suit preferred wiring topology
Range of Optional Accessories
Remote sensor gassing kit
Duct mounting kit
Calibration gas flow housing
Collecting cone
The Sensepoint XCD range provides comprehensive monitoring of flammable; toxic and Oxygen gas hazards in potentially explosive atmospheres; both indoors and outdoors. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man; non-intrusive operation and reduces routine maintenance time and costs
Sensepoint XCD ensures easy installation and the fastest routine operation by removing the need for hot work permits in hazardous areas. Using easy to replace plug-in sensors; downtime is also reduced and on-going costs are minimized through the use of poison resistant flammable sensors; poison immune infrared Hydrocarbon sensors and patented SurecellTM toxic sensors and Reflex? sensor health check.
All detectors are supplied pre-configured and include 2 programmable alarm relays; 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and Modbus.
A tri-color backlit LCD clearly indicates the unit?s status at a glance; even from a distance. A steady green backlight indicates normal operation; flashing yellow indicates fault and flashing red indicates an alarm.
The scale; range; relay operation; alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment; thereby reducing the risk of false alarm at the control panel during maintenance.
Sensepoint XCD has an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Two M20 or 3?4?NPT entries are provided (depending on certification). A weatherproof cap is also included for use in the harshest outdoor conditions. Other optional accessories include a sunshade/deluge protection; duct mounting kit and collecting cone.
TYPICAL APPLICATIONS
Industrial manufacturing facilities
Power plants
Waste water facilities
Utilities
Food and beverage production
Refineries and chemical plants
Onshore oil and gas terminals
Production platforms
Exploration and drilling
FEATURES
One-Stop Shop
Flammable (catalytic or infrared); toxic and oxygen versions available
New and retrofit applications
Suitable for indoor or outdoor use
Stainless steel or aluminium explosion-proof housing options
IP66 as standard
Proven and Reliable Sensor Technology
SurecellTM electrochemical sensors
Reflex? sensor health check
Poison immune infrared sensors
Poison resistant catalytic bead sensors
Long life sensors
Global Approvals
US and Latin America; European; Canadian and Asian
Compliant with UL; INMETRO; ATEX; IECEx; CSA; KTL; PA; GB and CCCF standards
Easy to Use
User friendly and intuitive tri-colour backlit display with digits; bar graph and icons
Fully configurable via magnetic switches
Selectable sink or source 4-20mA output
Auto-inhibit during maintenance
MODBUS communications for remote diagnostics/configuration
Cost Effective
Common transmitter platform
Minimal training required
Reduced spares
Non-intrusive; one-man operation
Plug-in sensor replacement
MODBUS multi drop option offers cabling savings
Simple Installation
Plug-in display module removes to give access to terminal area
Integral mounting bracket
2 x M20 or 3?4? NPT cable/conduit entries (certification dependent)
Removable plug/socket type terminal blocks for ease of wiring
Sink/source switch to suit preferred wiring topology
Range of Optional Accessories
Remote sensor gassing kit
Duct mounting kit
Calibration gas flow housing
Collecting cone
The Sensepoint XCD range provides comprehensive monitoring of flammable; toxic and Oxygen gas hazards in potentially explosive atmospheres; both indoors and outdoors. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man; non-intrusive operation and reduces routine maintenance time and costs
Sensepoint XCD ensures easy installation and the fastest routine operation by removing the need for hot work permits in hazardous areas. Using easy to replace plug-in sensors; downtime is also reduced and on-going costs are minimized through the use of poison resistant flammable sensors; poison immune infrared Hydrocarbon sensors and patented SurecellTM toxic sensors and Reflex? sensor health check.
All detectors are supplied pre-configured and include 2 programmable alarm relays; 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and Modbus.
A tri-color backlit LCD clearly indicates the unit?s status at a glance; even from a distance. A steady green backlight indicates normal operation; flashing yellow indicates fault and flashing red indicates an alarm.
The scale; range; relay operation; alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment; thereby reducing the risk of false alarm at the control panel during maintenance.
Sensepoint XCD has an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Two M20 or 3?4?NPT entries are provided (depending on certification). A weatherproof cap is also included for use in the harshest outdoor conditions. Other optional accessories include a sunshade/deluge protection; duct mounting kit and collecting cone.
TYPICAL APPLICATIONS
Industrial manufacturing facilities
Power plants
Waste water facilities
Utilities
Food and beverage production
Refineries and chemical plants
Onshore oil and gas terminals
Production platforms
Exploration and drilling
In stock
Only 3 left
SKU
ELEV-SPXCDULNFX
Honeywell XCD Sensepoint Gas Detector; CATALYTIC BEAD combustible 0-100% LEL (Lower Explosive Limit) Methane CH4 (natural gas) with Epoxy painted aluminium alloy LM25 housing; stainless steel sensor head; explosion-proof IP66; provides comprehensive monitoring of flammable gas hazards in potentially explosive atmospheres; both indoors and outdoors. 3-wire 24 VDC power; include 2 programmable alarm relays; 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable); Modbus RTU option available. User-Selectable full scale range 20%-100%; can be calibrated to several other combustible gases. UL/CSA Class I Division 1 or ATEX IECEx available.
FEATURES
One-Stop Shop
Flammable (catalytic or infrared); toxic and oxygen versions available
New and retrofit applications
Suitable for indoor or outdoor use
Stainless steel or aluminium explosion-proof housing options
IP66 as standard
Proven and Reliable Sensor Technology
SurecellTM electrochemical sensors
Reflex? sensor health check
Poison immune infrared sensors
Poison resistant catalytic bead sensors
Long life sensors
Global Approvals
US and Latin America; European; Canadian and Asian
Compliant with UL; INMETRO; ATEX; IECEx; CSA; KTL; PA; GB and CCCF standards
Easy to Use
User friendly and intuitive tri-colour backlit display with digits; bar graph and icons
Fully configurable via magnetic switches
Selectable sink or source 4-20mA output
Auto-inhibit during maintenance
MODBUS communications for remote diagnostics/configuration
Cost Effective
Common transmitter platform
Minimal training required
Reduced spares
Non-intrusive; one-man operation
Plug-in sensor replacement
MODBUS multi drop option offers cabling savings
Simple Installation
Plug-in display module removes to give access to terminal area
Integral mounting bracket
2 x M20 or 3?4? NPT cable/conduit entries (certification dependent)
Removable plug/socket type terminal blocks for ease of wiring
Sink/source switch to suit preferred wiring topology
Range of Optional Accessories
Remote sensor gassing kit
Duct mounting kit
Calibration gas flow housing
Collecting cone
The Sensepoint XCD range provides comprehensive monitoring of flammable; toxic and Oxygen gas hazards in potentially explosive atmospheres; both indoors and outdoors. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man; non-intrusive operation and reduces routine maintenance time and costs
Sensepoint XCD ensures easy installation and the fastest routine operation by removing the need for hot work permits in hazardous areas. Using easy to replace plug-in sensors; downtime is also reduced and on-going costs are minimized through the use of poison resistant flammable sensors; poison immune infrared Hydrocarbon sensors and patented SurecellTM toxic sensors and Reflex? sensor health check.
All detectors are supplied pre-configured and include 2 programmable alarm relays; 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and Modbus.
A tri-color backlit LCD clearly indicates the unit?s status at a glance; even from a distance. A steady green backlight indicates normal operation; flashing yellow indicates fault and flashing red indicates an alarm.
The scale; range; relay operation; alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment; thereby reducing the risk of false alarm at the control panel during maintenance.
Sensepoint XCD has an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Two M20 or 3?4?NPT entries are provided (depending on certification). A weatherproof cap is also included for use in the harshest outdoor conditions. Other optional accessories include a sunshade/deluge protection; duct mounting kit and collecting cone.
TYPICAL APPLICATIONS
Industrial manufacturing facilities
Power plants
Waste water facilities
Utilities
Food and beverage production
Refineries and chemical plants
Onshore oil and gas terminals
Production platforms
Exploration and drilling
FEATURES
One-Stop Shop
Flammable (catalytic or infrared); toxic and oxygen versions available
New and retrofit applications
Suitable for indoor or outdoor use
Stainless steel or aluminium explosion-proof housing options
IP66 as standard
Proven and Reliable Sensor Technology
SurecellTM electrochemical sensors
Reflex? sensor health check
Poison immune infrared sensors
Poison resistant catalytic bead sensors
Long life sensors
Global Approvals
US and Latin America; European; Canadian and Asian
Compliant with UL; INMETRO; ATEX; IECEx; CSA; KTL; PA; GB and CCCF standards
Easy to Use
User friendly and intuitive tri-colour backlit display with digits; bar graph and icons
Fully configurable via magnetic switches
Selectable sink or source 4-20mA output
Auto-inhibit during maintenance
MODBUS communications for remote diagnostics/configuration
Cost Effective
Common transmitter platform
Minimal training required
Reduced spares
Non-intrusive; one-man operation
Plug-in sensor replacement
MODBUS multi drop option offers cabling savings
Simple Installation
Plug-in display module removes to give access to terminal area
Integral mounting bracket
2 x M20 or 3?4? NPT cable/conduit entries (certification dependent)
Removable plug/socket type terminal blocks for ease of wiring
Sink/source switch to suit preferred wiring topology
Range of Optional Accessories
Remote sensor gassing kit
Duct mounting kit
Calibration gas flow housing
Collecting cone
The Sensepoint XCD range provides comprehensive monitoring of flammable; toxic and Oxygen gas hazards in potentially explosive atmospheres; both indoors and outdoors. Users can modify detector operation using the LCD and magnet switches without ever needing to open the unit. This enables one-man; non-intrusive operation and reduces routine maintenance time and costs
Sensepoint XCD ensures easy installation and the fastest routine operation by removing the need for hot work permits in hazardous areas. Using easy to replace plug-in sensors; downtime is also reduced and on-going costs are minimized through the use of poison resistant flammable sensors; poison immune infrared Hydrocarbon sensors and patented SurecellTM toxic sensors and Reflex? sensor health check.
All detectors are supplied pre-configured and include 2 programmable alarm relays; 1 programmable fault relay as well as an industry standard 4-20mA output (sink or source selectable) and Modbus.
A tri-color backlit LCD clearly indicates the unit?s status at a glance; even from a distance. A steady green backlight indicates normal operation; flashing yellow indicates fault and flashing red indicates an alarm.
The scale; range; relay operation; alarm set point and electronic tag number of the detector can be adjusted using the transmitter's LCD and non-intrusive magnetic switches. Outputs are automatically inhibited during adjustment; thereby reducing the risk of false alarm at the control panel during maintenance.
Sensepoint XCD has an integral mounting plate for surface mounting or can be mounted to a horizontal or vertical pipe using the optional pipe mounting bracket. Electrical installation can be made using either conduit or cable with suitable mechanical protection. Two M20 or 3?4?NPT entries are provided (depending on certification). A weatherproof cap is also included for use in the harshest outdoor conditions. Other optional accessories include a sunshade/deluge protection; duct mounting kit and collecting cone.
TYPICAL APPLICATIONS
Industrial manufacturing facilities
Power plants
Waste water facilities
Utilities
Food and beverage production
Refineries and chemical plants
Onshore oil and gas terminals
Production platforms
Exploration and drilling
| SKU | ELEV-SPXCDULNFX |
|---|---|
| Weight | 2.000000 |
| Manufacturer | LEVITON |
