DETECTOR SMOKE END TO END
PRODUCT FEATURES
Separate Transmitter and Receiver Heads
Range 16.5 to 393 feet (5 m to 120 m), configurable per set of Detectors
Lateral Spacing per NFPA 72 is 60 feet
2-wire Interface between Controller and Receiver
Single and twin-channel capability
Low-Level Controller with LCD display
Programmable Sensitivity and Fire Threshold
Separate Transmitter and Receiver Heads
Range 16.5 to 393 feet (5 m to 120 m), configurable per set of Detectors
Lateral Spacing per NFPA 72 is 60 feet
2-wire Interface between Controller and Receiver
Single and twin-channel capability
Low-Level Controller with LCD display
Programmable Sensitivity and Fire Threshold
In stock
Only 1 left
SKU
ES-EC3000-103
TTD11,409.00
INCLUDES
(1) Edwards EC3000-103 Beam Detector
PRODUCT DESCRIPTION

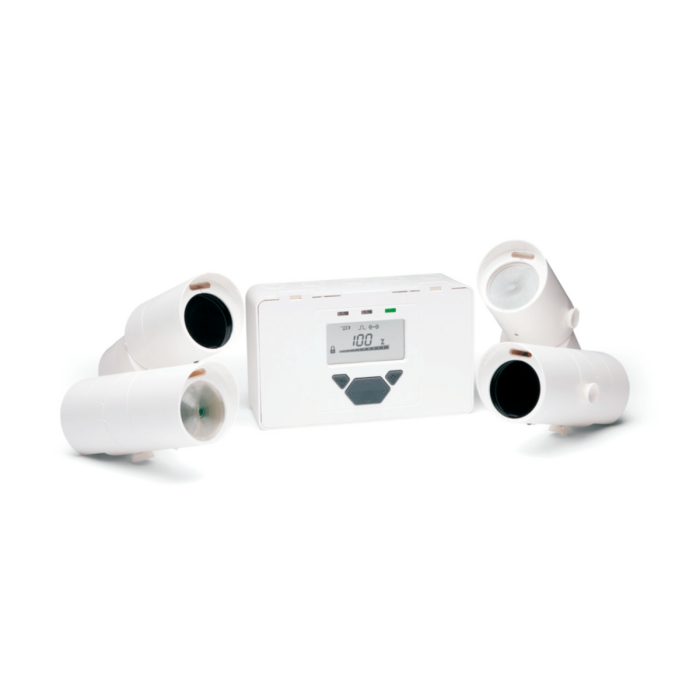

The Edwards EC3000-103 is an end-to-end infrared optical beam smoke detector that comprises an infrared transmitter, receiver, and controller. The transmitter and receiver ar e installed near the ceiling of the protected area up to 393 feet apart. Wh ile the controller i s mounted at ground level where it remains accessible for maintenance and setup functions. Each controller will handle up to two transmitter/receiver pairs, each with separate fire and fault relays.
The Edwards EC3000-103 i s typically used wh en it i s impractical, or inappropriate. Not cost-effective to use point-type detectors. It enables coverage of a large protected area at minimal cost. It i s ideally suited for situations that might include high ceilings and dusty. And dirty environments, or environments that ar e prone to temperature extremes.
The EC3000 features integrated laser alignment, simplifying installation, and configurable detector sensitivity and drift compensation, reducing nuisance alarms. These features and capabilities make the EC3000 a practical and effective wide-area detection solution.
TECHNICAL SPECIFICATIONS
SKU: EC3000-103
Brand: Edwards
Item Weight: 4 lbs
Dimensions: 16 × 12 × 10 in
Shipping Weight: 5lbs
(1) Edwards EC3000-103 Beam Detector
PRODUCT DESCRIPTION
The Edwards EC3000-103 is an end-to-end infrared optical beam smoke detector that comprises an infrared transmitter, receiver, and controller. The transmitter and receiver ar e installed near the ceiling of the protected area up to 393 feet apart. Wh ile the controller i s mounted at ground level where it remains accessible for maintenance and setup functions. Each controller will handle up to two transmitter/receiver pairs, each with separate fire and fault relays.
The Edwards EC3000-103 i s typically used wh en it i s impractical, or inappropriate. Not cost-effective to use point-type detectors. It enables coverage of a large protected area at minimal cost. It i s ideally suited for situations that might include high ceilings and dusty. And dirty environments, or environments that ar e prone to temperature extremes.
The EC3000 features integrated laser alignment, simplifying installation, and configurable detector sensitivity and drift compensation, reducing nuisance alarms. These features and capabilities make the EC3000 a practical and effective wide-area detection solution.
TECHNICAL SPECIFICATIONS
SKU: EC3000-103
Brand: Edwards
Item Weight: 4 lbs
Dimensions: 16 × 12 × 10 in
Shipping Weight: 5lbs
| SKU | ES-EC3000-103 |
|---|---|
| Weight | 5.000000 |
| Manufacturer | EDWARDS |
