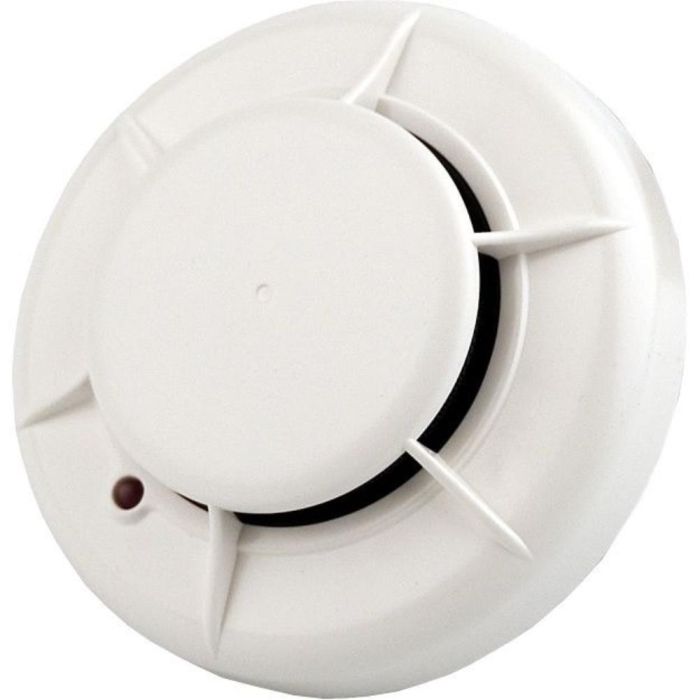

DETECTOR SMOKE HEAD PHOTO ELECTRIC
PRODUCT FEATURES
Consists of an optical chamber sensitive to light scattering
Alarm display LED
Output for alarm repetition
Prepared for testing by laser remote control
CPR certified according to EN54 part 7 standard
Power supply 8-30Vdc (nominal 12/24Vdc)
Operating temperature from - 20 to + 60°C
Relative humidity up to 95% without condensation
Dimensions (without base): 32.5 mm x 102 mm
INCLUDES
(1) System Sensor ECO1003 A Conventional Photoelectric Smoke Detector
Consists of an optical chamber sensitive to light scattering
Alarm display LED
Output for alarm repetition
Prepared for testing by laser remote control
CPR certified according to EN54 part 7 standard
Power supply 8-30Vdc (nominal 12/24Vdc)
Operating temperature from - 20 to + 60°C
Relative humidity up to 95% without condensation
Dimensions (without base): 32.5 mm x 102 mm
INCLUDES
(1) System Sensor ECO1003 A Conventional Photoelectric Smoke Detector
In stock
Only 2 left
SKU
FPC-SS-ECO1003
TTD219.95
PRODUCT DESCRIPTION
The ECO1003A photoelectric smoke detector's combination of unique chamber design and other technically advanced features significantly extend the service intervals before cleaning of the detector becomes necessary.
A laser-based hand-held Remote Test Unit can be used in conjunction with the range of ECO1000 detectors for alarm test purposes. The detector also has an integral LED, which latches on and remains illuminated until the detector is reset by a momentary power interruption. Bases are fitted with a shorting spring to allow circuit testing prior to fitting the detector.
The System Sensor ECO1003 is a Conventional plug-in Photoelectric Smoke Detector.
COMPATIBLE SYSTEM SENSOR BASES:
— ECO1000B Standard Base
— ECO1000BSD Standard base with Shottky diode
— ECO1000R Resistor base 470 Oohm
— ECO1000BRSD Resistor base 470 Ohm with Shottky diode
— ECO1000DB Deep base
— ECO1000DBSD Deep base with Shottky diode
— ECO100DBR Deep resistor base 470 Ohm
— ECO100DBRSD Deep resistor base 470 Ohm with Schottky diode
— ECO1000BREL12L Relay base 12V Latching
— ECO1000BREL12NL Relay base 12V Non —latching
— ECO1000BREL24NL Relay base 24V Latching
TECHNICAL SPECIFICATIONS
SKU: SS-ECO1003
Brand: System Sensor
Optical: Smoke detector
Power supply: 14 - 28V DC
Made of PC / ABS
Dimensions: 102 x 32.5 mm (without base)
Item Weight: 0.4lbs
Complies with EN54-7
Shipping Weight: 1lbs
The ECO1003A photoelectric smoke detector's combination of unique chamber design and other technically advanced features significantly extend the service intervals before cleaning of the detector becomes necessary.
A laser-based hand-held Remote Test Unit can be used in conjunction with the range of ECO1000 detectors for alarm test purposes. The detector also has an integral LED, which latches on and remains illuminated until the detector is reset by a momentary power interruption. Bases are fitted with a shorting spring to allow circuit testing prior to fitting the detector.
The System Sensor ECO1003 is a Conventional plug-in Photoelectric Smoke Detector.
COMPATIBLE SYSTEM SENSOR BASES:
— ECO1000B Standard Base
— ECO1000BSD Standard base with Shottky diode
— ECO1000R Resistor base 470 Oohm
— ECO1000BRSD Resistor base 470 Ohm with Shottky diode
— ECO1000DB Deep base
— ECO1000DBSD Deep base with Shottky diode
— ECO100DBR Deep resistor base 470 Ohm
— ECO100DBRSD Deep resistor base 470 Ohm with Schottky diode
— ECO1000BREL12L Relay base 12V Latching
— ECO1000BREL12NL Relay base 12V Non —latching
— ECO1000BREL24NL Relay base 24V Latching
TECHNICAL SPECIFICATIONS
SKU: SS-ECO1003
Brand: System Sensor
Optical: Smoke detector
Power supply: 14 - 28V DC
Made of PC / ABS
Dimensions: 102 x 32.5 mm (without base)
Item Weight: 0.4lbs
Complies with EN54-7
Shipping Weight: 1lbs
| SKU | FPC-SS-ECO1003 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | SYSTEM SENSOR |
