DETECTOR SMOKE OPTICAL INTEL UL/ULCOSD
PRODUCT FEATURES
Patented multi-criteria optical smoke sensing technology
Wide 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) smoke obscuration
Uses Existing Wiring
Integrated nuisance rejection reducing unwanted alarms from general cooking particulates
Listed to UL 268 7th edition
Automatic Device Mapping
Up To 250 Total Kidde Intelligent Addresses Per Loop
Two Levels of Environmental Compensation
Two Levels of Dirty Detector Warning
Twenty Pre-Alarm Settings
Five Sensitivity Settings
Non-VolatileMemory
Electronic Addressing
Environmentalcompensation
Automatic Day/Night Sensitivity Adjustment
Bicolor (Green/Red) Status LED
Standard, Relay, Fault Isolator, and Audible Mounting Bases
Sensor Markings Provide Easy Testing Identification
INCLUDES
(1) Kidde KI-OSD Optica Series Intelligent Optical Smoke Detector
Patented multi-criteria optical smoke sensing technology
Wide 0.5 to 4.36 %/ft. (1.6 to 13.6 %/m) smoke obscuration
Uses Existing Wiring
Integrated nuisance rejection reducing unwanted alarms from general cooking particulates
Listed to UL 268 7th edition
Automatic Device Mapping
Up To 250 Total Kidde Intelligent Addresses Per Loop
Two Levels of Environmental Compensation
Two Levels of Dirty Detector Warning
Twenty Pre-Alarm Settings
Five Sensitivity Settings
Non-VolatileMemory
Electronic Addressing
Environmentalcompensation
Automatic Day/Night Sensitivity Adjustment
Bicolor (Green/Red) Status LED
Standard, Relay, Fault Isolator, and Audible Mounting Bases
Sensor Markings Provide Easy Testing Identification
INCLUDES
(1) Kidde KI-OSD Optica Series Intelligent Optical Smoke Detector
In stock
Only 5 left
SKU
ES-KI-OSD
TTD323.31
PRODUCT DESCRIPTION

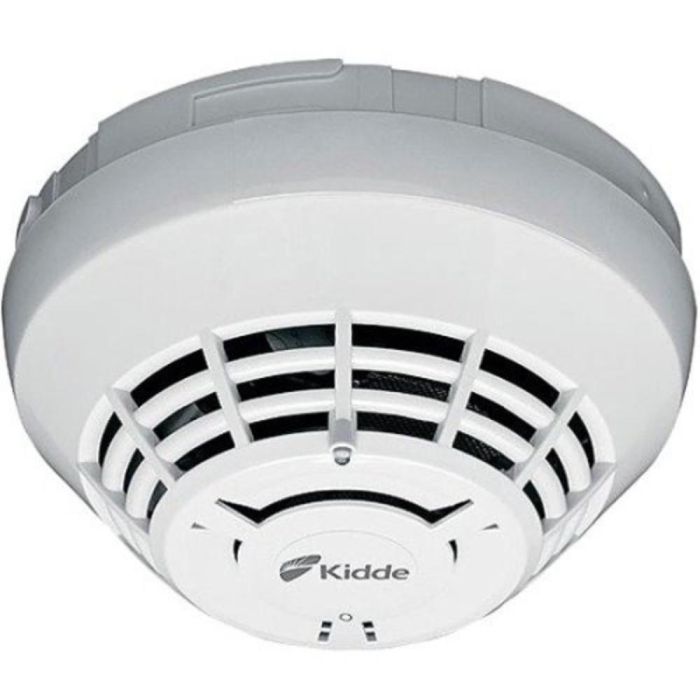

The Kidde Intelligent Optica Series KI-OSD smoke detector brings advanced optical (photoelectric) sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends life safety and property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while environmental compensation helps reduce maintenance costs.
Like all Kidde Intelligent Optica Series detectors, the KI-OSD is an intelligent device that gathers analog information from multiple optical sensors, converting this data into digital signals. Utilizing dual optical wavelengths combined with multiple detection angles, the KI-OSD differentiates particles that are not representative of actual smoke. Particle data is input into digital filters which feed a series of ratios removing signal patterns that are typical of nuisance sources, thus reducing unwanted alarms. To make an alarm decision, the detector’s on-board microprocessor measures and analyzes all optical sensor readings and compares this information to preprogrammed settings.
TECHNICAL SPECIFICATIONS
SKU: KI-OSD
Item Weight: 0.4lbs
Dimensions: 2.30 × 4.30 × 4.30 in
Manufacturer: Carrier
Brand: Kidde
Condition: New
Type: Detector
Style: Plug-In
Construction: Polymer
Detectable Medium: Fire
Detection Method: Photoelectric
Material Qualities: High Impact Resistance
Programming: Electronic
Protocol: Intelligent Loop Controller
Test Method: Testifire 1000, Testifire 2000
Voltage Range: 15.20 – 19.95 VDC
Series: Intelligent Optica Series
Production Status: Active
Shipping Weight: 1lb
The Kidde Intelligent Optica Series KI-OSD smoke detector brings advanced optical (photoelectric) sensing technology to a practical design that increases efficiency, saves installation time, cuts costs, and extends life safety and property protection capabilities. Continuous self-diagnostics ensure reliability over the long-haul, while environmental compensation helps reduce maintenance costs.
Like all Kidde Intelligent Optica Series detectors, the KI-OSD is an intelligent device that gathers analog information from multiple optical sensors, converting this data into digital signals. Utilizing dual optical wavelengths combined with multiple detection angles, the KI-OSD differentiates particles that are not representative of actual smoke. Particle data is input into digital filters which feed a series of ratios removing signal patterns that are typical of nuisance sources, thus reducing unwanted alarms. To make an alarm decision, the detector’s on-board microprocessor measures and analyzes all optical sensor readings and compares this information to preprogrammed settings.
TECHNICAL SPECIFICATIONS
SKU: KI-OSD
Item Weight: 0.4lbs
Dimensions: 2.30 × 4.30 × 4.30 in
Manufacturer: Carrier
Brand: Kidde
Condition: New
Type: Detector
Style: Plug-In
Construction: Polymer
Detectable Medium: Fire
Detection Method: Photoelectric
Material Qualities: High Impact Resistance
Programming: Electronic
Protocol: Intelligent Loop Controller
Test Method: Testifire 1000, Testifire 2000
Voltage Range: 15.20 – 19.95 VDC
Series: Intelligent Optica Series
Production Status: Active
Shipping Weight: 1lb
| SKU | ES-KI-OSD |
|---|---|
| Weight | 1.000000 |
| Manufacturer | KIDDIE FIRE SYSTEMS |
