DETECTOR SMOKE PHOTO

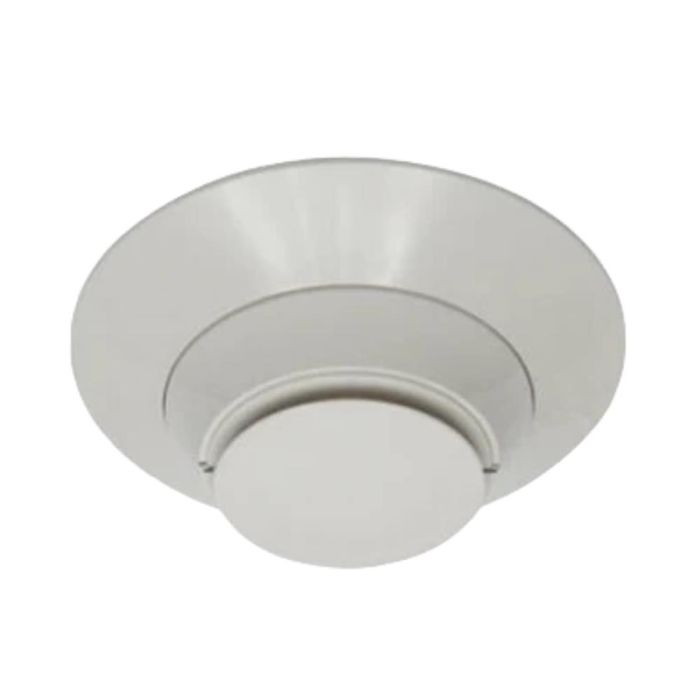

IDP-Photo Intelligent Photoelectric Smoke Detector is a plug-in addressable photoelectric smoke detector head for use with compatible Silent Knight fire alarm control panels. Plugs into a compatible IDP-series detector base (sold separately).
Intelligent Device Protocol (IDP) devices are intelligent addressable devices for use with the following Farenhyt addressable fire alarm control panels (FACPs): IFP-2000/ECS; IFP-1000/ECS; IFP-100/ECS; and IFP-50. IDP detectors; modules; and accessories communicate to the FACP over the signaling line circuit loop (SLC loop) using a two-wire connection. Shielded or twisted wire is not required. Up to 99 addressable IDP detectors and 99 IDP modules can communicate with the IFP-50; IFP-100/ECS; and IFP- 1000/ECS FACP on a single loop. The Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels
Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels. IDP-Photo and IDP-Photo-T have a unique optical sensing chamber that is engineered to sense smoke produced by a wide range of combustion sources. In the IDP-Photo-T; dual electronic thermistors add 135Ȇ (57ȃ) thermal technology to maximize detection. The IDP-PhotoR is a remote test capable detector for use with the DNR (W) duct smoke detectors
Features
Reliable analog communications for trouble-free operation
Age resistant polymer housing
Dual electronic thermistor design on the IDP-Photo-T
Superior EMI resistance for reliability*
Simple field cleaning for code compliance
Variety of mounting options to meet any application
Dual LED indicators for 360Ǡvisibility
Detector transmits signal to indicate maintenance is required
Optional remote; single-gang LED Indicator (RA400Z)
Plug-in mounting provides ease of installation
Tamper-proof feature available on mounting bases
UL Listed
Intelligent Device Protocol (IDP) devices are intelligent addressable devices for use with the following Farenhyt addressable fire alarm control panels (FACPs): IFP-2000/ECS; IFP-1000/ECS; IFP-100/ECS; and IFP-50. IDP detectors; modules; and accessories communicate to the FACP over the signaling line circuit loop (SLC loop) using a two-wire connection. Shielded or twisted wire is not required. Up to 99 addressable IDP detectors and 99 IDP modules can communicate with the IFP-50; IFP-100/ECS; and IFP- 1000/ECS FACP on a single loop. The Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels
Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels. IDP-Photo and IDP-Photo-T have a unique optical sensing chamber that is engineered to sense smoke produced by a wide range of combustion sources. In the IDP-Photo-T; dual electronic thermistors add 135Ȇ (57ȃ) thermal technology to maximize detection. The IDP-PhotoR is a remote test capable detector for use with the DNR (W) duct smoke detectors
Features
Reliable analog communications for trouble-free operation
Age resistant polymer housing
Dual electronic thermistor design on the IDP-Photo-T
Superior EMI resistance for reliability*
Simple field cleaning for code compliance
Variety of mounting options to meet any application
Dual LED indicators for 360Ǡvisibility
Detector transmits signal to indicate maintenance is required
Optional remote; single-gang LED Indicator (RA400Z)
Plug-in mounting provides ease of installation
Tamper-proof feature available on mounting bases
UL Listed
In stock
Only 10 left
SKU
FPC-IDP-PHOTO
TTD769.01
IDP-Photo Intelligent Photoelectric Smoke Detector is a plug-in addressable photoelectric smoke detector head for use with compatible Silent Knight fire alarm control panels. Plugs into a compatible IDP-series detector base (sold separately).
Intelligent Device Protocol (IDP) devices are intelligent addressable devices for use with the following Farenhyt addressable fire alarm control panels (FACPs): IFP-2000/ECS; IFP-1000/ECS; IFP-100/ECS; and IFP-50. IDP detectors; modules; and accessories communicate to the FACP over the signaling line circuit loop (SLC loop) using a two-wire connection. Shielded or twisted wire is not required. Up to 99 addressable IDP detectors and 99 IDP modules can communicate with the IFP-50; IFP-100/ECS; and IFP- 1000/ECS FACP on a single loop. The Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels
Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels. IDP-Photo and IDP-Photo-T have a unique optical sensing chamber that is engineered to sense smoke produced by a wide range of combustion sources. In the IDP-Photo-T; dual electronic thermistors add 135Ȇ (57ȃ) thermal technology to maximize detection. The IDP-PhotoR is a remote test capable detector for use with the DNR (W) duct smoke detectors
Features
Reliable analog communications for trouble-free operation
Age resistant polymer housing
Dual electronic thermistor design on the IDP-Photo-T
Superior EMI resistance for reliability*
Simple field cleaning for code compliance
Variety of mounting options to meet any application
Dual LED indicators for 360Ǡvisibility
Detector transmits signal to indicate maintenance is required
Optional remote; single-gang LED Indicator (RA400Z)
Plug-in mounting provides ease of installation
Tamper-proof feature available on mounting bases
UL Listed
Intelligent Device Protocol (IDP) devices are intelligent addressable devices for use with the following Farenhyt addressable fire alarm control panels (FACPs): IFP-2000/ECS; IFP-1000/ECS; IFP-100/ECS; and IFP-50. IDP detectors; modules; and accessories communicate to the FACP over the signaling line circuit loop (SLC loop) using a two-wire connection. Shielded or twisted wire is not required. Up to 99 addressable IDP detectors and 99 IDP modules can communicate with the IFP-50; IFP-100/ECS; and IFP- 1000/ECS FACP on a single loop. The Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels
Detector sensitivity can be programmed from the FACP software. Sensitivity is continuously monitored and reported to the FACP. Point ID capability allows each detector?s address to be set with rotary address switches; providing exact detector locations for selective maintenance when chamber contamination reaches unacceptable levels. IDP-Photo and IDP-Photo-T have a unique optical sensing chamber that is engineered to sense smoke produced by a wide range of combustion sources. In the IDP-Photo-T; dual electronic thermistors add 135Ȇ (57ȃ) thermal technology to maximize detection. The IDP-PhotoR is a remote test capable detector for use with the DNR (W) duct smoke detectors
Features
Reliable analog communications for trouble-free operation
Age resistant polymer housing
Dual electronic thermistor design on the IDP-Photo-T
Superior EMI resistance for reliability*
Simple field cleaning for code compliance
Variety of mounting options to meet any application
Dual LED indicators for 360Ǡvisibility
Detector transmits signal to indicate maintenance is required
Optional remote; single-gang LED Indicator (RA400Z)
Plug-in mounting provides ease of installation
Tamper-proof feature available on mounting bases
UL Listed
| SKU | FPC-IDP-PHOTO |
|---|---|
| Weight | 1.000000 |
