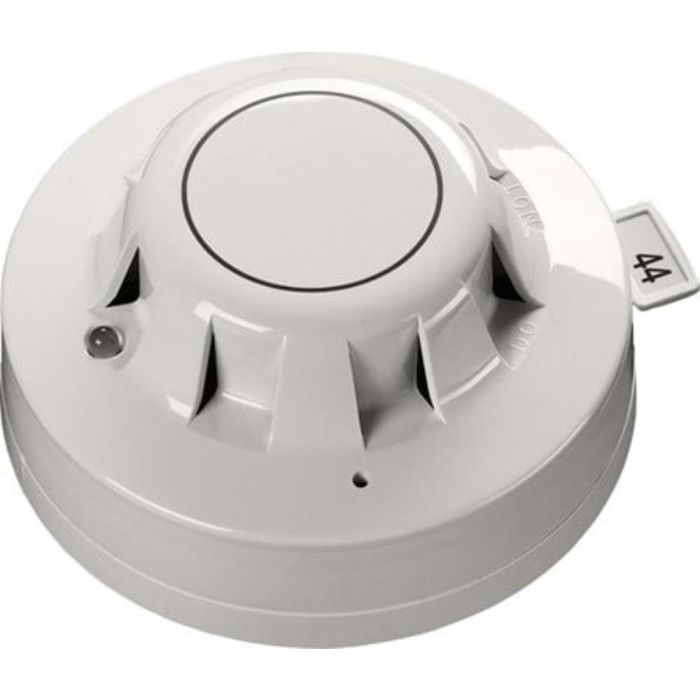

DETECTOR SMOKE PHOTO XP95
PRODUCT FEATURES
Reliable fire detection in areas with a wide temperature range from -20°C to +60°C
Ideal for escape routes
Unaffected by wind and atmospheric pressure
Insect resistant screen
INCLUDES
(1) XP95 Optical Smoke Detector 55000-600APO
Reliable fire detection in areas with a wide temperature range from -20°C to +60°C
Ideal for escape routes
Unaffected by wind and atmospheric pressure
Insect resistant screen
INCLUDES
(1) XP95 Optical Smoke Detector 55000-600APO
In stock
Only 5 left
SKU
GFC-SA5050250AP
TTD900.00
PRODUCT DESCRIPTION
The XP95 Optical Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.
TECHNICAL SPECIFICATIONS
SKU: XP95
Brand: Apollo
Applications: Escape routes, Hotels, Offices, Restaurants, Retail, Medium to large buildings, Bedrooms.
Fire Type: Slow burning, smouldering fires
Colour: White
Sensor configuration: Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Item Weight: 0.23lbs
Materials housing: Polycarbonate
Materials terminals: Nickel plated stainless steel
Product length: 42mm
Product diameter: 100mm
Detection principle: Photo-electric light scattering.
Product length: 1.65in
Product diameter: 3.94in
Standards: EN 54-7
Approvals: CPR, KRS, LPCB
Performance: Analogue value nominal: 25
Analogue value (- tolerance): 7
Analogue value (+ tolerance): 7
Analogue value: 25 +7/-7
Alarm level analogue value: 55
Chamber type: Chevron
Protocol voltage: 5 to 9V peak to peak
Protocol voltage (max): 9V
Protocol voltage (min): 5V
Power-up surge current: 1mA
Maximum power-up time: 4 seconds
Status indicator - Alarm: Red
Status indicator - Fault: Off
Quiescent current: 340?A
Supply voltage (max): 28V dc
Supply voltage (min): 17V dc
Supply voltage (Vmin-Vmax): 17 to 28V dc
Terminal functions L2: +L2 Loop in & out positive, double terminal
Terminal functions L1 in: -L1 in Loop in & out, double terminal
Terminal functions +R: +R Remote indicator positive connection
Terminal functions -R: -R Remote indicator negative connection
Polarity: L1 & L2 are polarity insensitive
Battery powered: No
Sampling frequency: Once per second
Humidity (max): 95% RH
Humidity (min): 0% RH
Humidity Note: no condensation or icing
Humidity: 0% to 95% (no condensation or icing)
Operating temperature: -20 to 60°C
Operating temperature (max): 60°C
Operating temperature (min): -20°C
Storage temperature (max): 80°C
Storage temperature (min): -30°C
Storage temperature: -30 to 80°C
Effect of wind speed: None
Operating temperature: -4 to 140°F
Operating temperature (max): 140°F
Operating temperature (min): -4°F
Item Weight: 2lbs
Shipping Weight: 2lbs
The XP95 Optical Smoke Detector uses the light scatter principle to quickly and effectively detect a range of slow burning and smouldering fires.
TECHNICAL SPECIFICATIONS
SKU: XP95
Brand: Apollo
Applications: Escape routes, Hotels, Offices, Restaurants, Retail, Medium to large buildings, Bedrooms.
Fire Type: Slow burning, smouldering fires
Colour: White
Sensor configuration: Horizontal optical bench housing infra-red emitter and sensor, arranged radially to detect forward scattered light.
Item Weight: 0.23lbs
Materials housing: Polycarbonate
Materials terminals: Nickel plated stainless steel
Product length: 42mm
Product diameter: 100mm
Detection principle: Photo-electric light scattering.
Product length: 1.65in
Product diameter: 3.94in
Standards: EN 54-7
Approvals: CPR, KRS, LPCB
Performance: Analogue value nominal: 25
Analogue value (- tolerance): 7
Analogue value (+ tolerance): 7
Analogue value: 25 +7/-7
Alarm level analogue value: 55
Chamber type: Chevron
Protocol voltage: 5 to 9V peak to peak
Protocol voltage (max): 9V
Protocol voltage (min): 5V
Power-up surge current: 1mA
Maximum power-up time: 4 seconds
Status indicator - Alarm: Red
Status indicator - Fault: Off
Quiescent current: 340?A
Supply voltage (max): 28V dc
Supply voltage (min): 17V dc
Supply voltage (Vmin-Vmax): 17 to 28V dc
Terminal functions L2: +L2 Loop in & out positive, double terminal
Terminal functions L1 in: -L1 in Loop in & out, double terminal
Terminal functions +R: +R Remote indicator positive connection
Terminal functions -R: -R Remote indicator negative connection
Polarity: L1 & L2 are polarity insensitive
Battery powered: No
Sampling frequency: Once per second
Humidity (max): 95% RH
Humidity (min): 0% RH
Humidity Note: no condensation or icing
Humidity: 0% to 95% (no condensation or icing)
Operating temperature: -20 to 60°C
Operating temperature (max): 60°C
Operating temperature (min): -20°C
Storage temperature (max): 80°C
Storage temperature (min): -30°C
Storage temperature: -30 to 80°C
Effect of wind speed: None
Operating temperature: -4 to 140°F
Operating temperature (max): 140°F
Operating temperature (min): -4°F
Item Weight: 2lbs
Shipping Weight: 2lbs
| SKU | GFC-SA5050250AP |
|---|---|
| Weight | 2.000000 |
| Manufacturer | APOLLO |
