EYEWASH STATION / COMBO
PRODUCT FEATURES
CONSTRUCTION - 1-1/4" IPS Schedule 40 hot-dipped galvanized steel pipe and ttings along with powder-coated cast-iron 9" (22.9 cm) diameter floor flange and 11" (27.9 cm) stainless steel receptor provide an additional corrosion resistance in a long lasting product.
EYE/FACE WASH HEAD - AXION® MSR eye/face wash head uses an inverted directional laminar flow to sweep contaminants away from the vulnerable nasal cavity.
SHOWERHEAD - AXION® MSR ABS plastic drench showerhead uses a hydrodynamic design to give equal distribution of water throughout the entire footprint of flow.
BALL VALVES - Eyewash and shower ball valves are designed to make the flushing of contaminants occur with the simple pull of a lever or push of a stainless steel flag. Both valves come equipped with stainless steel ball and stem to provide greater protection against corrosion and breakage.
IN-LINE STRAINER - Chrome-plated brass in-line 50 x 50 mesh water strainer prevents debris from reaching the eyewash so the unit stays functioning at its best. Strainer is easily serviceable.
QUALITY CONTROL - Eye/face wash and valve assembly are pre-built and fully water/pressure tested to ensure no leaks and proper function which ultimately reduces installation time.
INCLUDES
(1) 8300-8309 AXION® MSR Emergency Shower and Eye/Face Wash
In stock
Only 4 left
SKU
HAWS-8300
TTD10,743.75
PRODUCT DESCRIPTION

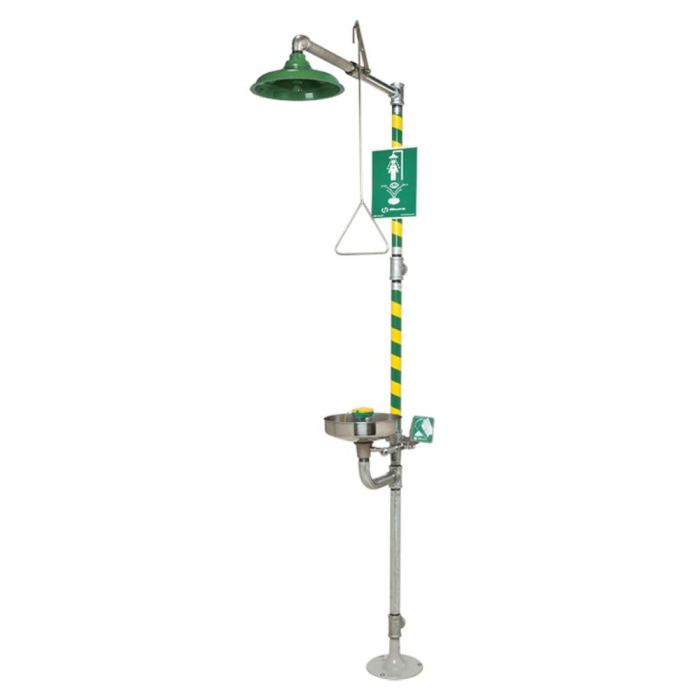

Model 8300-8309 Emergency Shower & Eyewash Station features the medically acclaimed AXION MSR eye/face wash head assembly (patent pending). This revolutionary inverted flow design is the only product on the market that provides a Medically Superior Response consistent with all EMT, emergency room and doctors' office protocols by sweeping contaminants away from the vulnerable nasal cavity. Traditional eyewashes irrigate from the outside edge of the eye back toward the nose, where contaminants can then be flushed into the nasal cavity through the lacrimal punctum, nature's ocular cavity drain. AXION MSR also offers a new hydrodynamic shower design that minimizes the strong physical pressure that drives the water to the outer rim of normal showerheads, making the distribution equal across the entire footprint of the flow. Better use of the water flowing through the shower makes it more effective while providing a more comfortable environment by breaking the streams of water into smaller individual droplets.
Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
AXION MSR ABS plastic drench showerhead with flow control delivers dispersed flow for uniform drenching
Also features a stainless steel push flag for eyewash activation, a round 11" (27.9 cm) stainless steel bowl, stainless steel pull rod for shower activation, mesh in-line eyewash strainer to collect line debris, and ball valves with stainless steel ball and stem for durability
Pipe and fitting: 1-1/4" Schedule 40 hot-dipped galvanized steel. Supply and Waste: 1-1/4" NPT
ANSI/ISEA Z358.1 tempering compliance
OPTIONS
Scald Protect Bleed Valve: Model SP157A, stainless steel scald protection bleed valve. Automatic thermal actuator bleed valve
opens when internal water temperature reaches 98° F (36.7° C) and closes at 95° F (35° C). Thermostatic Mixing Valve: Model 9201E AXION® Emergency Tempering Valve thermostatically mixes hot and cold water to provide a safe fluid supply for emergency showers and eyewash equipment, with a flow rate of 31 gpm (117.3 L). Emergency Alarm System: Model 9001, 1-1/4" 120 VAC emergency alarm and light system. Buzzer and flashing light are activated by an 1-1/4" double pole, double throw flow switch. Dust Cover: Model 9102 is a stainless steel cover that protects the eyewash heads as well as the bowl.
APPLICATIONS
Where the eyes or body of any person may be exposed to injurious or corrosive materials, suitable facilities for quick drenching or flushing of the eyes and body shall be provided within the work area for immediate emergency use. Emergency eyewash facilities and deluge showers shall be in unobstructed and accessible locations that require no more than 10 seconds for the injured person to reach. Model 8300-8309 is certied by CSA to meet the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment.
TECHNICAL SPECIFICATIONS
SKU: 8300
Brand: HAWS
Item: Combination Safety Shower Eyewash Stations
Sprayhead: Eye/Facewash
Shower Mounting: Floor Mount
Eyewash Bowl Material: Stainless Steel
Operation: Push Handle
Shower Operation: Pull Down Arm
Shower Head Material: Plastic
Head Dia.: 10-5/8"
Bowl Dia.: 11"
ANSI Compliant: Yes
Item Weight: 45lbs
Shipping Weight: 50lbs
| SKU | HAWS-8300 |
|---|---|
| Weight | 50.000000 |
| Manufacturer | HAWS |
