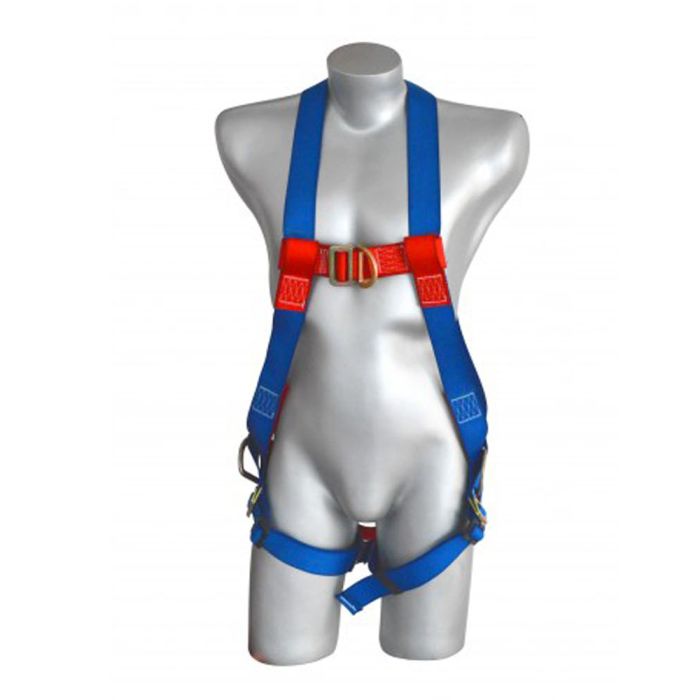

HARNESS CONTRACTOR RN V2
DETENTION OF FALLS (Dorsal Ring) The whole body harness is used as a component of a personal fall arrest system. He system must include a full-body harness and a connection subsystem (sling with absorber Energy). The maximum stopping force must not exceed 8kN (1800lb). Harnesses equipped with a front eye as fall arrest element must be used only as part of a personal fall arrest system that limits the maximum fall distance to 0.6m limit the maximum stopping force to 900lb. RESTRICTION (Dorsal loop) The full body harness is used as a component of a restraint system to prevent the user reaches the free fall zone. A fall restriction system must include a body harness whole and a sling or restriction line. POSITIONING (Side rings) Full body harness equipped with system to support the user on vertical high surfaces allowing work with free hands. CONTROLLED RISING AND LOWERING (Front Loop) Harness equipped with frontal hoop that allows controlled ascent and descent work. Use HARNESS IN "H" CONTRACTOR 4 ARGOLLAS Ref.1170186 CAPITAL SAFETY - FIRST Colombia - Bogotá - Cra 37A # 7 - 20 T: + (571) 593 47 47 www.capitalsafety.la
Page 2
DATA SHEET characteristics * * * * Made in 45 mm wide loop. Reata 100% high resistance to stress and abrasion. Support and reinforcement that ensure and maintain the position of the dorsal ring. Made with fittings with high breaking strength and high resistance to corrosion, the rings in D are inspected and tested 100% at 16kN (3600lb). Seams in high resistance yarn and different color to the reata for easy identification. Harness endorsed in accordance with ANSI / ASSE Z359.1-2007, element by element, in set in dynamic test (simulating head drop and foot drop) and static according to the requirements of the standard. All the parts that make up the harness and the set are evaluated in our Laboratory which is under metrological assurance with its equipment calibrated * * CHARACTERISTICS BY MODEL ANSI / ASSE Standard Z359.1 "Safety requirements for components, subsystems and Personal systems for fall arrest. " REFERENCE NORM DESCRIPTION DETAIL Harness 4 rings, dorsal ring, side and front in steel, overlap adjustment buckles in the legs. JOINT VALIDATION HARNESS IN "H" CONTRACTOR 4 ARGOLLAS Tension Static Tension Dynamic Front Eye Dorsal Hoop Front Eye Dorsal Hoop CUMPLE CUMPLE CUMPLE CUMPLE Minimum 3600lb Sliding buckles max. 25 mm Minimum 5000lb Sliding buckles max. 25 mm Do not release mannequin Do not release mannequin angle of rest <30º
In stock
Only 33 left
SKU
3M-1170186
TTD549.00
DETENTION OF FALLS (Dorsal Ring) The whole body harness is used as a component of a personal fall arrest system. He system must include a full-body harness and a connection subsystem (sling with absorber Energy). The maximum stopping force must not exceed 8kN (1800lb). Harnesses equipped with a front eye as fall arrest element must be used only as part of a personal fall arrest system that limits the maximum fall distance to 0.6m limit the maximum stopping force to 900lb. RESTRICTION (Dorsal loop) The full body harness is used as a component of a restraint system to prevent the user reaches the free fall zone. A fall restriction system must include a body harness whole and a sling or restriction line. POSITIONING (Side rings) Full body harness equipped with system to support the user on vertical high surfaces allowing work with free hands. CONTROLLED RISING AND LOWERING (Front Loop) Harness equipped with frontal hoop that allows controlled ascent and descent work. Use HARNESS IN "H" CONTRACTOR 4 ARGOLLAS Ref.1170186 CAPITAL SAFETY - FIRST Colombia - Bogotá - Cra 37A # 7 - 20 T: + (571) 593 47 47 www.capitalsafety.la
Page 2
DATA SHEET characteristics * * * * Made in 45 mm wide loop. Reata 100% high resistance to stress and abrasion. Support and reinforcement that ensure and maintain the position of the dorsal ring. Made with fittings with high breaking strength and high resistance to corrosion, the rings in D are inspected and tested 100% at 16kN (3600lb). Seams in high resistance yarn and different color to the reata for easy identification. Harness endorsed in accordance with ANSI / ASSE Z359.1-2007, element by element, in set in dynamic test (simulating head drop and foot drop) and static according to the requirements of the standard. All the parts that make up the harness and the set are evaluated in our Laboratory which is under metrological assurance with its equipment calibrated * * CHARACTERISTICS BY MODEL ANSI / ASSE Standard Z359.1 "Safety requirements for components, subsystems and Personal systems for fall arrest. " REFERENCE NORM DESCRIPTION DETAIL Harness 4 rings, dorsal ring, side and front in steel, overlap adjustment buckles in the legs. JOINT VALIDATION HARNESS IN "H" CONTRACTOR 4 ARGOLLAS Tension Static Tension Dynamic Front Eye Dorsal Hoop Front Eye Dorsal Hoop CUMPLE CUMPLE CUMPLE CUMPLE Minimum 3600lb Sliding buckles max. 25 mm Minimum 5000lb Sliding buckles max. 25 mm Do not release mannequin Do not release mannequin angle of rest <30º
| SKU | 3M-1170186 |
|---|---|
| Weight | 2.000000 |
| Manufacturer | 3M |
