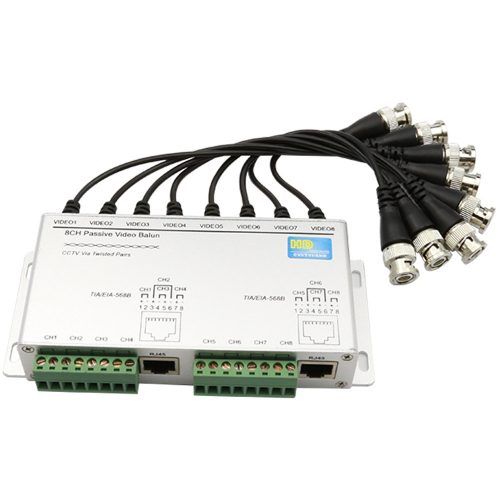

HUB 8 CH HD BALUN SCREW TERMINAL W/ PIGTAIL
Model VZ-808M-HD:
Color: CVBS: 984ft (300m)
HD-AHD: 720p: 1050ft (320m); 1080p: 722ft (220m)
HD-CVI: 720p: 1476ft (450m); 1080p: 820ft (250m)
HD-TVI: 720p/1080p: 820ft (250m)
Video Format: NTSC; PAL; SECAM
Maximum Input: 1Vp-p
Frequency Response: DC to 60MHz
CMMR: 60dB; (20K ~ 60M) Hz
Wire Type: UTP (22~ 24) AWG
Wire Category: CAT5e û CAT6
Impedance: Coax: 75?@1MHz
RJ45: 100?@1MHz
Operating Temperature: -14¦F~ 140¦F (-10¦C~ 60¦C)
Storage Temperature: -22¦F~ 140¦F (-30¦C~ 60¦C)
Humidity Range: 0~ 95%; non-condensing
Color: CVBS: 984ft (300m)
HD-AHD: 720p: 1050ft (320m); 1080p: 722ft (220m)
HD-CVI: 720p: 1476ft (450m); 1080p: 820ft (250m)
HD-TVI: 720p/1080p: 820ft (250m)
Video Format: NTSC; PAL; SECAM
Maximum Input: 1Vp-p
Frequency Response: DC to 60MHz
CMMR: 60dB; (20K ~ 60M) Hz
Wire Type: UTP (22~ 24) AWG
Wire Category: CAT5e û CAT6
Impedance: Coax: 75?@1MHz
RJ45: 100?@1MHz
Operating Temperature: -14¦F~ 140¦F (-10¦C~ 60¦C)
Storage Temperature: -22¦F~ 140¦F (-30¦C~ 60¦C)
Humidity Range: 0~ 95%; non-condensing
In stock
Only 5 left
SKU
FPC-VZ-808M-HD
TTD157.47
HUB 8 CH HD BALUN
| SKU | FPC-VZ-808M-HD |
|---|---|
| Weight | 8.000000 |
| Manufacturer | VEZCO |
