PANEL FOUR LOOP 110/220V GREY
PRODUCT FEATURES:
Four-loop capable fire alarm control panel.
One onboard 250-point intelligent SLC included.
Expandable to 1,000 addressable devices using optional loop modules.
Dual-voltage 110V/220V power supply.
Built-in 4 configurable NACs (Class A/B capable).
10-inch color touchscreen LCD user interface.
Built-in Ethernet (IP) connectivity for monitoring and diagnostics.
USB-C programming port.
Automatic device mapping and electronic addressing.
Supports up to 30 serial annunciators.
Configurable primary and alternate languages.
Grey outer door enclosure for commercial installations.
In stock
Only 2 left
SKU
ES-EDGE-ML-G
TTD16,046.46
INCLUDES:
[1] Control Panel Assembly
[1] Power Supply
[1] CPU Board
[1] Touchscreen LCD
[1] Cabinet Backbox
[1] Inner Door
[1] Grey Outer Door
PRODUCT DESCRIPTION:

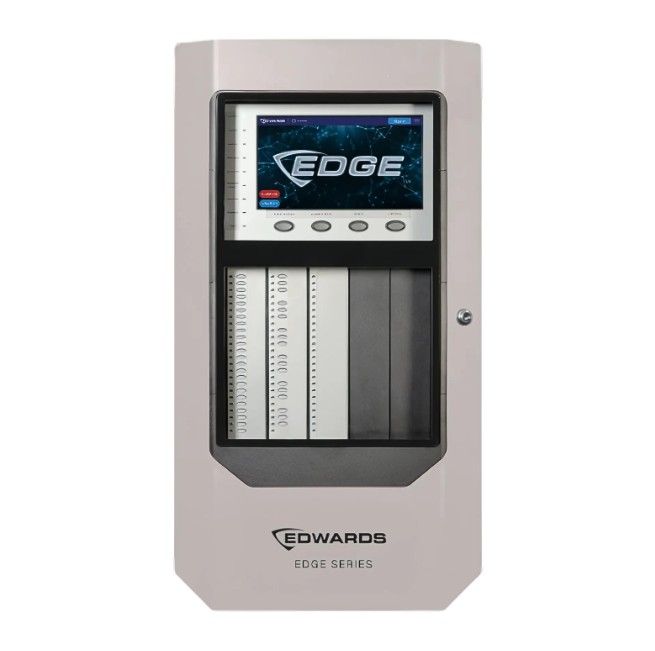

The Edwards EDGE-ML-G is an intelligent addressable fire alarm control panel designed for medium to large commercial and institutional installations. It provides one onboard 250-point signaling line circuit (SLC) and can be expanded to support up to four loops, allowing a maximum of 1,000 addressable devices. The panel includes a 10-inch touchscreen LCD interface, built-in network connectivity, USB programming support, and configurable notification appliance circuits, making it suitable for both new installations and retrofit projects.
TYPICAL APPLICATIONS:
Commercial Buildings
Schools and Universities
Health Facilities
Industrial Facilities
Hotels and Hospitality Properties
Large Office Complexes
Government and Industrial Buildings
TECHNICAL SPECIFICATIONS:
Brand: Edwards (EST)
Item Model Number: EDGE-ML-G
Product Type: Fire Alarm Control Panel
Power Input: 110V / 220V AC
Onboard SLC Capacity: 250 Addressable points
Maximum System Capacity: 1,000 addressable devices
Number of Loops: 4-Loop capable
NACs: 4 Built in configurable NACs
User Interface: 10" Touchscreen LCD
Network Connectivity: Ethernet (IP) Port
Programming Port: USB-C
Enclosure: Cabinet backbox with grey outer door
Listing & Approvals: UL,ULC, CSFM, FDNY
Shipping Weight: 42 lbs
| SKU | ES-EDGE-ML-G |
|---|---|
| Weight | 42.000000 |
| Manufacturer | EDWARDS |
