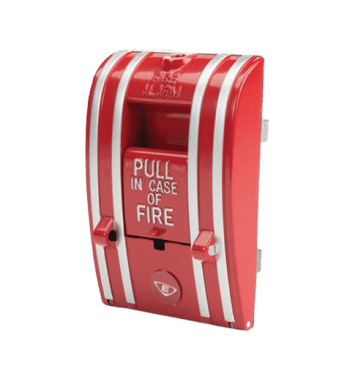

PULL STATION MAN NON-CODE SING POLE OPEN CIRCUIT
Product Features
-
Pull lever
-
Simple positive operation
-
Break glass
-
Attractive, streamline design
-
Less than 5lb pull force complies with ADA
-
Solid, die-cast metal construction
In stock
Only 135 left
SKU
ES-270-SPO
TTD299.00
Description
Edwards 270 Series Non-Coded Fire Alarm Stations are sturdy, attractive, and designed for economical installation.
The station is available in the following operational and functional designs:
The 270 Series provides a single action, break glass initiating station. It is available with normally open (N.O.), normally closed (N.C.) or combination N.O./N.C. contacts. The basic 270 Series have screw terminals for field connection. The 270A Series Manual Stations have 6 inch (150mm) wire leads.
All non-coded statins are designed for either flush or surface mounting. For flush mounting a 4 inch standard North American square box with single gang plaster cover should be used. For surface mounting the 270 Series, use P-027193 Cast Box, P-039250 Steel Box.
Attributes
| Weight | 0.3 lbs |
|---|---|
| Condition |
New |
| Color |
Red |
| Construction |
Die-Cast Metal |
| Mounting |
Flush, Surface |
| Operation |
Break-Glass, Single-Action |
| Terminal Type |
Screw Terminals |
| Series | |
| Brand | |
| Production Status |
Active |
| SKU | ES-270-SPO |
|---|---|
| Weight | 1.000000 |
| Manufacturer | KIDDIE FIRE SYSTEMS |
