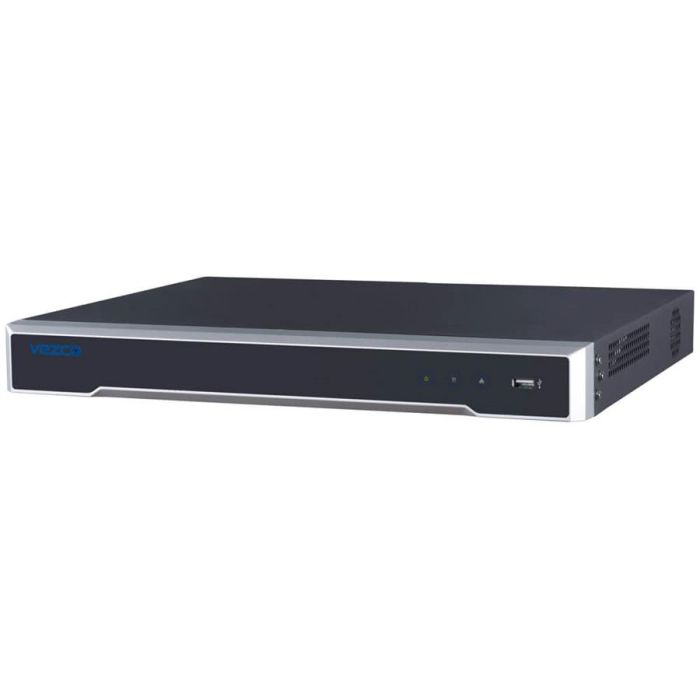

RECORDER NVR 160MBPS 2 SATA INTERFACES 16 CH
Z-NVR-161080-P
NVR 16CH 160Mbps; Full 16ch Independent PoE
PRODUCT DESCRIPTION:
Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/H.264/H.264+/MPEG4 video formats
Connectable to the third-party network cameras
Up to 16 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view; storage; and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI and VGA independent outputs provided
HDMI Video output at up to 4K (3840 + 2160) resolution
HD Storage
Up to 2 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
1 self-adaptive 10M/100M/1000 Mbps network interface
16 independent PoE network interfaces are provided
Various Applications
Centralized management of IP cameras; including configuration; information import/export; real-time information display; two-way audio; upgrade; etc.
Connectable to smart IP cameras from Vezco and the recording; playing back; and backing up of VCA alarms can be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports HDD quota and group modes; different capacity can be assigned to different channels
SPECIFICATIONS:
IP video input: 16-ch
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 160 Mbps
Decoding Format: H.265/H.264/H.264+/MPEG4
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2 CIF/CIF/QCIF
Synchronous Playback: 16-ch
Capability: 2-ch @ 4K; or 8-ch @ 1080p
SATA: 2 SATA interfaces for 2HDDs
Capacity: Up to 6TB capacity for each disk
Two-way Audio: 1-ch; RCA (2.0 Vp-p; 1k?)
Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface: Front panel: 1 + USB 2.0; Rear panel: 1 + USB 3.0
Alarm In/Out: 4/1
Power supply: 100 to 240 VAC
Power: ?280 W
Consumption (without hard disk): ?15 W
Working Temperature: -10 ¦C to +55 ¦C (14 ¦F to 131 ¦F)
Working Humidity: 10% to 90%
Chassis: 385 mm chassis
Dimensions (W + D + H): 385 + 315+ 52 mm (15.2? + 12.4? + 2.0?)
Weight: 7lbs
NVR 16CH 160Mbps; Full 16ch Independent PoE
PRODUCT DESCRIPTION:
Professional and Reliable
Dual-OS design to ensure high reliability of system running
ANR technology to enhance the storage reliability when the network is disconnected
HD Input
H.265/H.264/H.264+/MPEG4 video formats
Connectable to the third-party network cameras
Up to 16 IP cameras can be connected
Recording at up to 8 MP resolution
Supports live view; storage; and playback of the connected camera at up to 8 MP resolution
HD Output
HDMI and VGA independent outputs provided
HDMI Video output at up to 4K (3840 + 2160) resolution
HD Storage
Up to 2 SATA interfaces connectable for recording and backup
Storage space effectively saved by 50% to 70% with the use of H.264+ decoding format
HD Transmission
1 self-adaptive 10M/100M/1000 Mbps network interface
16 independent PoE network interfaces are provided
Various Applications
Centralized management of IP cameras; including configuration; information import/export; real-time information display; two-way audio; upgrade; etc.
Connectable to smart IP cameras from Vezco and the recording; playing back; and backing up of VCA alarms can be realized
VCA detection alarm is supported
Instant playback for assigned channel during multi-channel display mode
Smart search for the selected area in the video; and smart playback to improve the playback efficiency
Supports HDD quota and group modes; different capacity can be assigned to different channels
SPECIFICATIONS:
IP video input: 16-ch
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 160 Mbps
Decoding Format: H.265/H.264/H.264+/MPEG4
Recording Resolution: 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2 CIF/CIF/QCIF
Synchronous Playback: 16-ch
Capability: 2-ch @ 4K; or 8-ch @ 1080p
SATA: 2 SATA interfaces for 2HDDs
Capacity: Up to 6TB capacity for each disk
Two-way Audio: 1-ch; RCA (2.0 Vp-p; 1k?)
Network Interface: 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
USB Interface: Front panel: 1 + USB 2.0; Rear panel: 1 + USB 3.0
Alarm In/Out: 4/1
Power supply: 100 to 240 VAC
Power: ?280 W
Consumption (without hard disk): ?15 W
Working Temperature: -10 ¦C to +55 ¦C (14 ¦F to 131 ¦F)
Working Humidity: 10% to 90%
Chassis: 385 mm chassis
Dimensions (W + D + H): 385 + 315+ 52 mm (15.2? + 12.4? + 2.0?)
Weight: 7lbs
In stock
Only 1 left
SKU
FPC-VZNVR161080
TTD3,432.75
RECORDER NVR 160MBPS
| SKU | FPC-VZNVR161080 |
|---|---|
| Weight | 7.000000 |
| Manufacturer | VEZCO |
