RELAY MODULE

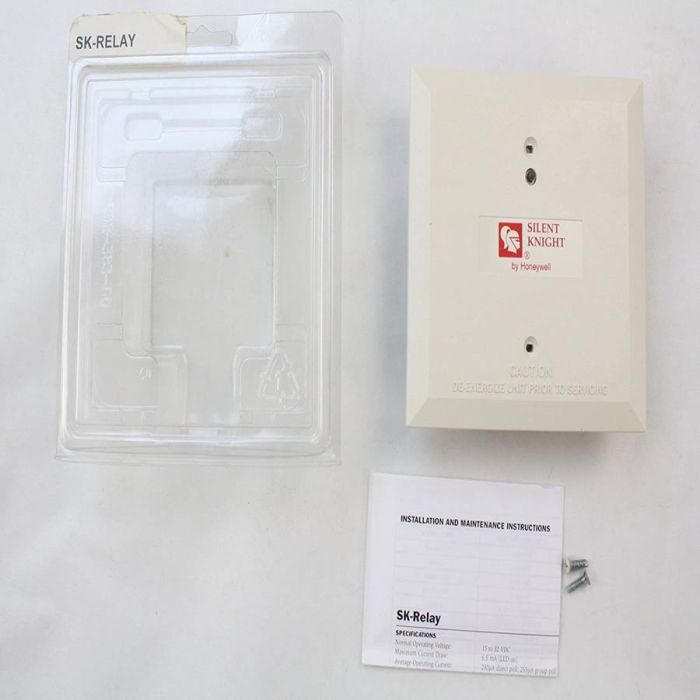

FPC-SK-RELAY - Addressable Relay Module
DESCRIPTION:
The SK-Relay is an addressable relay module for use with Silent Knight IntelliKnight series fire alarm control panels (FACPs). The SK-Relay allows a Silent Knight FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit. The SK-Relay contacts can be used for virtually any normally open or normally closed application. Each SK-Relay is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the SK-Relay, the relay is triggered by the FACP.
Part Number - SK-RELAY
Product Dimensions - 4.9 x 4.9 x 1.4 inches
Item Weight – 6.4 oz
Color - White
In stock
Only 5 left
SKU
FPC-SK-RELAY
TTD909.00
FPC-SK-RELAY - Addressable Relay Module
DESCRIPTION:
The SK-Relay is an addressable relay module for use with Silent Knight IntelliKnight series fire alarm control panels (FACPs). The SK-Relay allows a Silent Knight FACP to switch discrete contacts by code command. The relay contains two isolated sets of Form C contacts, which operate as a DPDT switch. No supervision is provided for the notification appliance circuit. The SK-Relay contacts can be used for virtually any normally open or normally closed application. Each SK-Relay is programmed with a unique signaling line circuit (SLC) loop address. When an event occurs that controls the SK-Relay, the relay is triggered by the FACP.
Part Number - SK-RELAY
Product Dimensions - 4.9 x 4.9 x 1.4 inches
Item Weight – 6.4 oz
Color - White
| SKU | FPC-SK-RELAY |
|---|---|
| Weight | 1.000000 |
