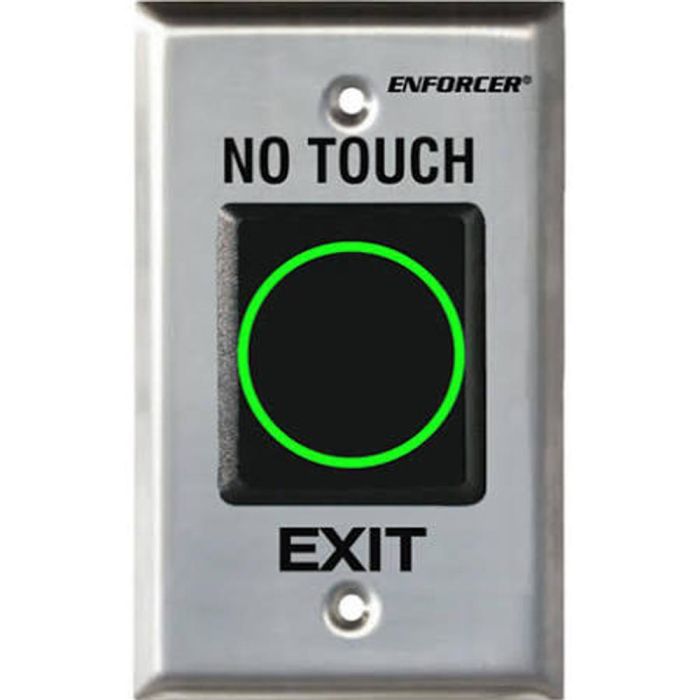

SENSOR EXIT NO TOUCH REF:SL-SD927PKC-NEQ
"""The ENFORCER """"No Touch"""" Request-To-Exit Sensor Plates use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch; this wall plate sensor is ideal for use in hospitals; clinics; labs; cleanrooms (to reduce the risk of contamination); schools; factories; or offices.
֎o Touch -- just wave a hand in front of sensor.
֓ensing range up to 4"""" (10cm). (Range for SD-927PWCQ is up to 2"""" (5 cm))
֒eliable IR technology senses motion.
֎o touch reduces the risk of cross-contamination.
֓tainless steel or white plastic single gang plate.
ճA relay; triggers min. 0.5 sec. or as long as hand is near the sensor.
ED illuminated sensor area for easy identification.
ED changes color to show the relay is triggered.
֑uick-connect screwless terminal block.
Specifications
Model # SD-927PKC-NxQ SD-927PWCQ
Current Draw 40mA@12VDC
Operating Voltage 12VDC
Relay Type Form C (NO/NC/COM)
Switching capacity 3A@24VDC
Response Time 10mS
LEDs Standby Green Red
Triggered Red Green
Output Time 0.5S or as long as unit is triggered
Range Up to 4"""" (10cm) Up to 2"""" (5cm)
Operating Temperature -4?~131? F (-20?~55? C)
Weight 3oz (85g) 2.5oz (70g)
Dimensions 41/2""""x23/4""""x15/16"""" (115x70x33.5mm "
֎o Touch -- just wave a hand in front of sensor.
֓ensing range up to 4"""" (10cm). (Range for SD-927PWCQ is up to 2"""" (5 cm))
֒eliable IR technology senses motion.
֎o touch reduces the risk of cross-contamination.
֓tainless steel or white plastic single gang plate.
ճA relay; triggers min. 0.5 sec. or as long as hand is near the sensor.
ED illuminated sensor area for easy identification.
ED changes color to show the relay is triggered.
֑uick-connect screwless terminal block.
Specifications
Model # SD-927PKC-NxQ SD-927PWCQ
Current Draw 40mA@12VDC
Operating Voltage 12VDC
Relay Type Form C (NO/NC/COM)
Switching capacity 3A@24VDC
Response Time 10mS
LEDs Standby Green Red
Triggered Red Green
Output Time 0.5S or as long as unit is triggered
Range Up to 4"""" (10cm) Up to 2"""" (5cm)
Operating Temperature -4?~131? F (-20?~55? C)
Weight 3oz (85g) 2.5oz (70g)
Dimensions 41/2""""x23/4""""x15/16"""" (115x70x33.5mm "
In stock
Only 2 left
SKU
ISTC-927PKCNEQ
TTD260.49
"""The ENFORCER """"No Touch"""" Request-To-Exit Sensor Plates use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it requires no touch; this wall plate sensor is ideal for use in hospitals; clinics; labs; cleanrooms (to reduce the risk of contamination); schools; factories; or offices.
֎o Touch -- just wave a hand in front of sensor.
֓ensing range up to 4"""" (10cm). (Range for SD-927PWCQ is up to 2"""" (5 cm))
֒eliable IR technology senses motion.
֎o touch reduces the risk of cross-contamination.
֓tainless steel or white plastic single gang plate.
ճA relay; triggers min. 0.5 sec. or as long as hand is near the sensor.
ED illuminated sensor area for easy identification.
ED changes color to show the relay is triggered.
֑uick-connect screwless terminal block.
Specifications
Model # SD-927PKC-NxQ SD-927PWCQ
Current Draw 40mA@12VDC
Operating Voltage 12VDC
Relay Type Form C (NO/NC/COM)
Switching capacity 3A@24VDC
Response Time 10mS
LEDs Standby Green Red
Triggered Red Green
Output Time 0.5S or as long as unit is triggered
Range Up to 4"""" (10cm) Up to 2"""" (5cm)
Operating Temperature -4?~131? F (-20?~55? C)
Weight 3oz (85g) 2.5oz (70g)
Dimensions 41/2""""x23/4""""x15/16"""" (115x70x33.5mm "
֎o Touch -- just wave a hand in front of sensor.
֓ensing range up to 4"""" (10cm). (Range for SD-927PWCQ is up to 2"""" (5 cm))
֒eliable IR technology senses motion.
֎o touch reduces the risk of cross-contamination.
֓tainless steel or white plastic single gang plate.
ճA relay; triggers min. 0.5 sec. or as long as hand is near the sensor.
ED illuminated sensor area for easy identification.
ED changes color to show the relay is triggered.
֑uick-connect screwless terminal block.
Specifications
Model # SD-927PKC-NxQ SD-927PWCQ
Current Draw 40mA@12VDC
Operating Voltage 12VDC
Relay Type Form C (NO/NC/COM)
Switching capacity 3A@24VDC
Response Time 10mS
LEDs Standby Green Red
Triggered Red Green
Output Time 0.5S or as long as unit is triggered
Range Up to 4"""" (10cm) Up to 2"""" (5cm)
Operating Temperature -4?~131? F (-20?~55? C)
Weight 3oz (85g) 2.5oz (70g)
Dimensions 41/2""""x23/4""""x15/16"""" (115x70x33.5mm "
| SKU | ISTC-927PKCNEQ |
|---|---|
| Weight | 1.000000 |
| Manufacturer | ENFORCER |
