TIME ATTENDANCE W/P WIFI

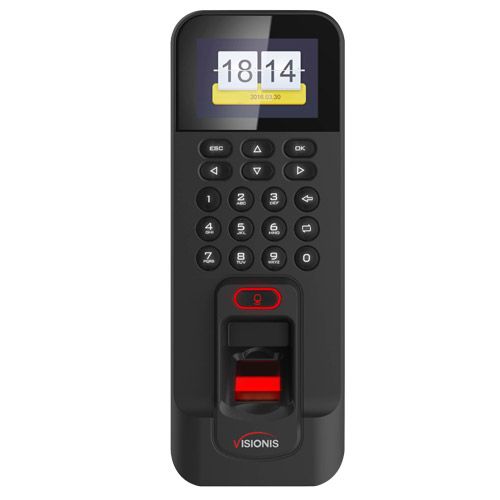

The VIS-3013 is a time and attendance waterproof fingerprint reader. This outdoor biometric reader (which is IP and wiegand) is also a combination keypad and card/tag reader. It can be used through a wired network or Wi-Fi; allowing for flexibility depending on your application. You have a maximum of 3;000 users and 100;000 event records. You can generate time and attendance reports automatically that will include all necessary information.

Integrated management of access control and the attendance.
2.4-inch LCD screen to display the time; the date and swiping/fingerprint authentication results.
Wired network and Wi-Fi are available.
Accurate and fast fingerprint recognition. The recognition time duration is less than 1.5s.
Max. 3000 users; Max. 3000 fingerprints and Max. 100;000 event records are available.
Different authentication types can be configured according to different situations.
Stand-alone operation: Locally add person; card and fingerprint information; Export the swiping card data and the attendance report to the USB.
Up to 32 normal shifts and up to 32 man-hour shifts can be configured.
Up to 32 attendance holiday schedules and up to 128 access control holiday schedules can be configured.
Generate the attendance report automatically.
The doorbell can connect the third party buzzer.
Standard wiegand 26/34 protocol for output and input.
Tampering alarm and duress alarm function.
It is available to connect the external RS-485 secure door control to avoid the door opening when the terminal is destroyed.
Intelligent Chinese and English input.

Attention:

Proximity cards model number: VIS-APRXCARD/26TH and Key tags model number: VIS-AKEYTAG; ARE NOT INCLUDED; SOLD SEPARATELY
You can only use EM cards with this product. Mifare cards and other type of cards from other brands may not be compatible.
This is a hardwired reader
This device also has a feature that you can add a wiegand reader that you can use for Exit. You can use this type of reader instead of an exit button or in addition to an exit button. This reader is sold separately.
This software is not compatible with MAC computers; only with Microsoft

Operating System Linux
Storage Up to 3000 Valid Cards; Up to 100;000 Records
Fingerprint Capacity Up to 3000 Fingerprints
Fingerprint Recognition Duration 1:N Recognition Duration (Up to 3000 fingerprints) < 1s
FAR(False Accept Rate) ? 0.001 %
FRR (False Rejection Rate) ? 0.01 %
Fingerprint Recognizer Optical Fingerprint Recognizer Module
External Card Reader Standard Wiegand 26/34
Card Reading Mode EM Card
Card Reading Distance ? 5cm (1.96 in.)
Key Board Keyboard (Backlight)
Reset Key X1
Communication Interface Wi-Fi; TCP/IP; RS-485 (For Secure Door Control Unit); Wiegand Output (w26/w34) and Input (Wiegand 26/34)
Transmission Rate TCP/IP: 10/100Mbps; Self-adaptive; RS485: 19200 bps-N-8-1
Input Interface Door Switch Button ×1; Magnetic Door ×1 and Alarm Input ×1
Output Interface Relay (Lock Output) ×1; Doorbell Output ×1 and Alarm Output ×1
USB USB 2.0
LCD Screen 2.4-inch (320×240 LCD-TFT Display Screen)
Audio 1 Buzzer and 1 Loudspeaker
LED Indicator Power/Status (Red/Green); Key Back Light(White)
Power Supply DC 12V
Working Current 1A (max)
Working Temperature -10°C to 55°C (14°F to 131°F)
Working Humidity 10% to 90% (No Condensing)
Waterproof IP42
Temper-Proof Support
Dimension 205L x 76.5W × 37D (mm) – 8.07L x 3.11W x 1.45D (in.)
