SANDER DRUM OPEN JWDS2244 22X5"STAND 1.75HP 15A120V
PRODUCT FEATURES:
5″ × 22″ sanding drum — suitable for wide boards and panels.
1-3/4 HP motor provides plenty of power for heavy sanding tasks.
Variable speed conveyor (0–10 ft/min) lets you match feed rate to material and grit.
Sandsmart™ load monitoring automatically adjusts feed to prevent overloads.
Separate feed and drum motors for optimized control and performance.
Tool-less parallelism adjustment with a dial for quick conveyor bed calibration.
Precision-machined extruded aluminum drum dissipates heat and protects work surface.
Dust hood with integrated channel mirrors the drum shape to improve dust pickup.
Tool-less abrasive take-up clips make paper changes fast and easy.
Adjustable tension rollers minimize snipe (end dips).
4″ dust port for shop vac or dust collection hookup.
Integrated controls (on/off and variable speed) are conveniently located.
In stock
Only 1 left
SKU
JET-723540OSK
TTD22,999.01
PRODUCT DESCRIPTION:

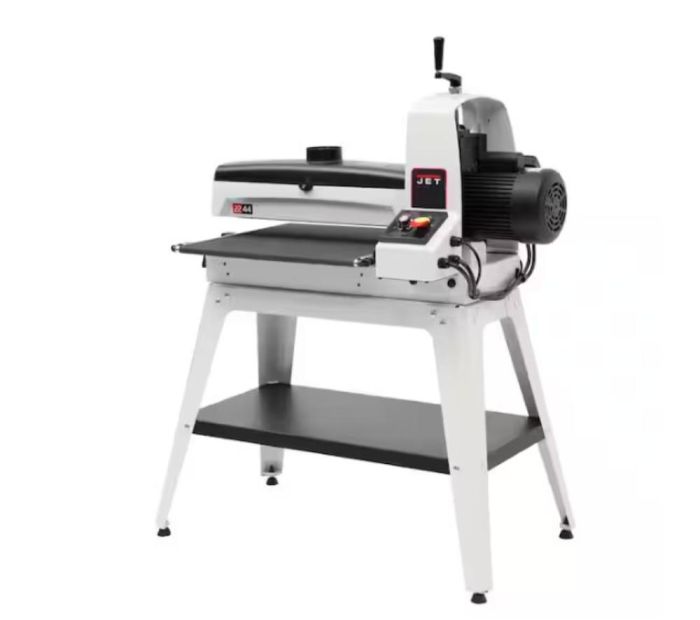

The Jet JWDS-2244 Drum Sander with open stand (723540OSK) is a heavy-duty floor-mounted sanding machine designed for woodworking shops and professional applications. Its 5-inch diameter by 22-inch wide drum and 1-3/4 HP motor handle a wide range of sanding tasks — from dimensioning boards to finishing large panels — with precision and power. The variable-speed conveyor and Sandsmart™ load monitoring system let you dial in the right feed rate for different materials and grits, while separate drum and feed motors and easy tool-less adjustments help maintain consistent results. The large, rugged open stand with storage shelf and dust management features make this sander a stable central piece in busy shops.
TECHNICAL SPECIFICATIONS:
Brand: JET
Item Model Number: 7235400SK
Product Type: Drum Sander
Voltage: 115V
Amperage: 15A
Motor Phase: Single
Horsepower: 1-3/4 Hp
Drum Diameter: 5"
Drum Length: 22"
Drum Speed: 1,720 RPM
Conveyor Motor: 43 in-lbs. Torque, Direct Drive
Conveyor Speed: 0 - 10 FPM
Max Board Thickness: 4"
Max Board Width: 44"
Min Board Length: 2-3/8"
Min Board Thickness: 1/32"
Dust Port Size: 4"
Stand Footprint: 23.25" x 41.75"
Shipping Weight: 475 lbs
| SKU | JET-723540OSK |
|---|
