SAW CIRCULAR 8-14" 5/8"15A 2300W 5200RPM MX-90DG-3" MAGNESIUM

INCLUDES

(1) 8-1/4" 24T Carbide-Tipped Saw Blade, Framing (D-21521)
(1) Hex Wrench (783204-6)
(1) Rip Fence (164095-8)

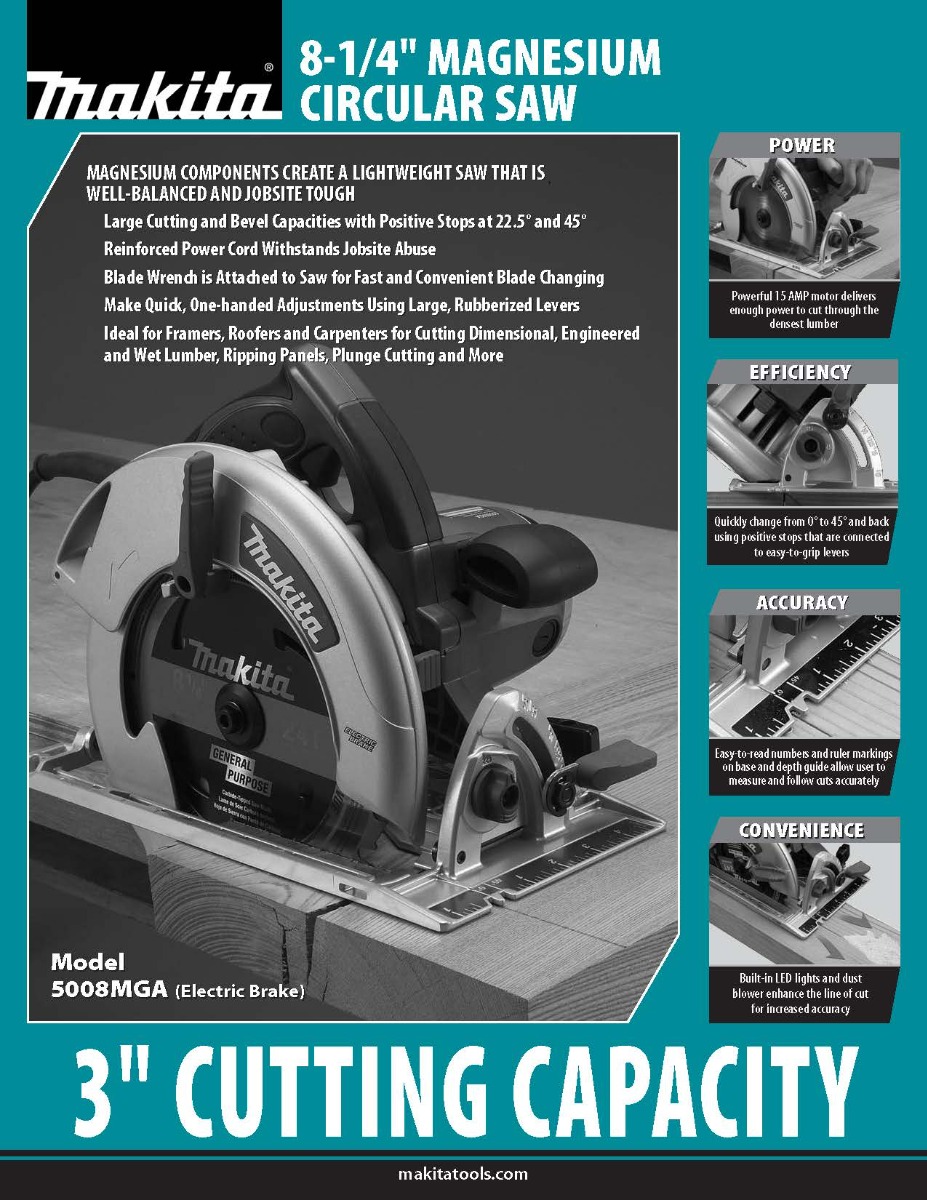

PRODUCT FEATURES

Magnesium components create a lightweight saw (11.4 lbs.) that is well balanced and job site tough
Large cutting capacity (3" at 90°) and bevel capacity (0°-50°) with positive stops at 22.5° and 45°
Two built-in L.E.D. lights illuminate the line of cut for increased accuracy
Powerful 15.0 AMP motor delivers 5,200 RPM for proven performance
Make quick, one-handed adjustments using large, rubberized levers
Built-in dust blower clears the line of cut for greater accuracy
Better fit with comfortable rubber grip on handle
Settings are easy to read with oversized number and ruler markings
Blade wrench is attached to saw for fast and convenient blade changing
Reinforced power cord withstands jobsite abuse and lowers repair costs

PRODUCT DESCRIPTION

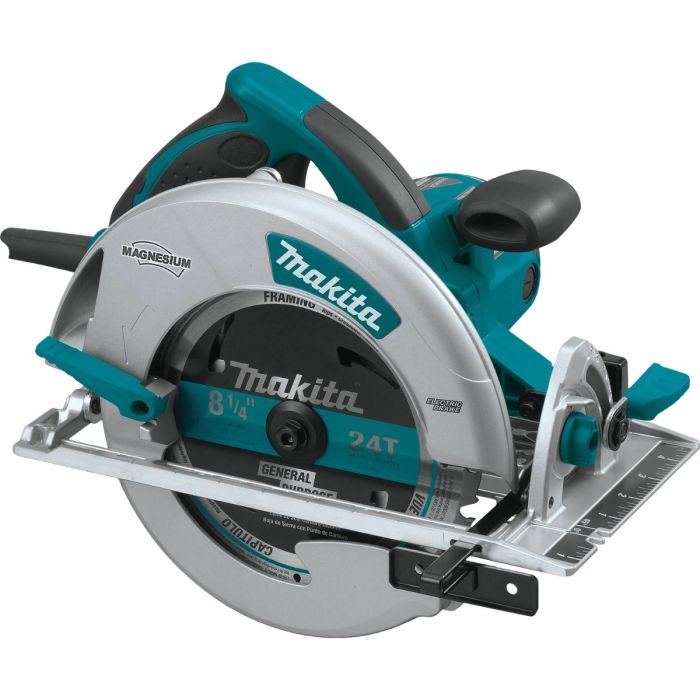

The Makita 8-1/4” Magnesium Circular Saw  features highly durable magnesium components and a powerful 15 AMP Makita-built industrial motor, powerful enough to cut through the densest lumber. The 5008MGA balances weight, power, durability, and ease of use with a 3” maximum cutting capacity, making it perfect for framers, roofers, as well as general contractors who require a best-in-class engineered circular saw.

Makita-Built Motor Engineered for Versatile Power

The 5008MGA features a Makita-built 15 AMP industrial motor that delivers 5,200 RPM, combined with well-balanced magnesium components for a lighter weight saw that delivers true power the professional user demands. The saw has a large cutting capacity (3” at 90°) with a maximum bevel capacity of 50° and positive stops at 22.5° and 45° for quick back-and-forth changes. The 5008MGA includes an electric brake to stop the blade quickly for maximum productivity, as well as a premium carbide-tipped blade and a blade wrench attached to the saw for fast and convenient blade changing.

Ergonomic and Ease-of-Use Features

Magnesium components allowed Makita to engineer a saw with less weight (11.4 lbs.) that is well-balanced and jobsite tough. Additional design details include greater clearance between the rear handle and the blade case to provide a better grip for larger hands or for users with gloves, as well as a wider space between the blade and housing for a clearer view of the blade and measurement scale. The saw features twin L.E.D. lights for better illumination, as well as ducting designed to blow dust away from the line of cut. Makita also engineered ergonomics and ease-of-use into the saw, including clearly visible depth and bevel markings and ergonomic hand grips to improve overall control while minimizing operator fatigue. The large rubberized levers provide quick, one-handed adjustments for more efficient work.

Engineered for a Range of Applications

The 5008MGA 8-1/4” Circular Saw is built for framing walls, floors and roofs using a range of dimensional lumber and dense engineered lumber, including LVL, Parallam and I-Joists, headers and microlams; as well as ripping panels such as plywood, OSB, particle board, and dense structural panels like Advantech. Other applications include plunge cutting, pocket cutting, bevel cutting, masonry and metal cutting.

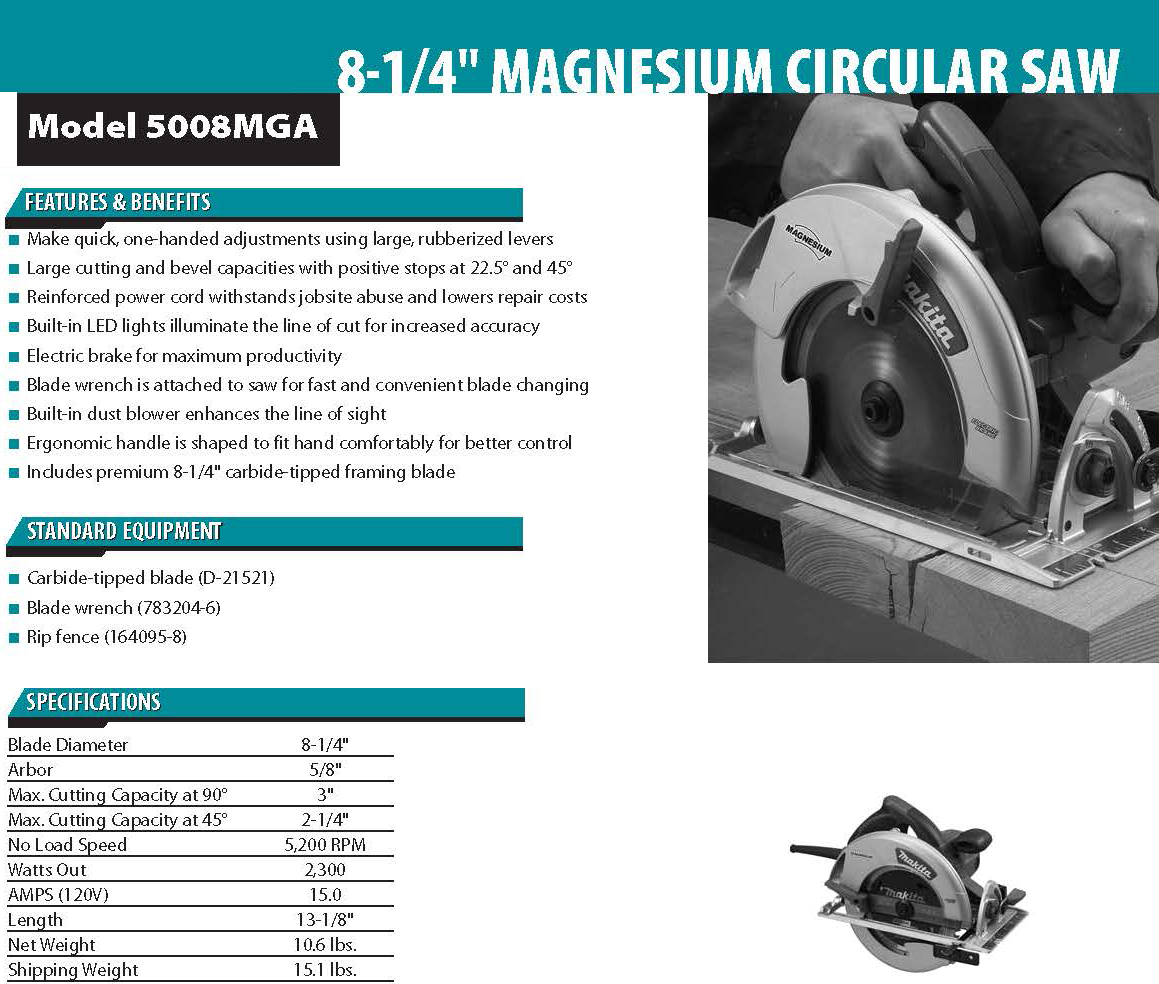

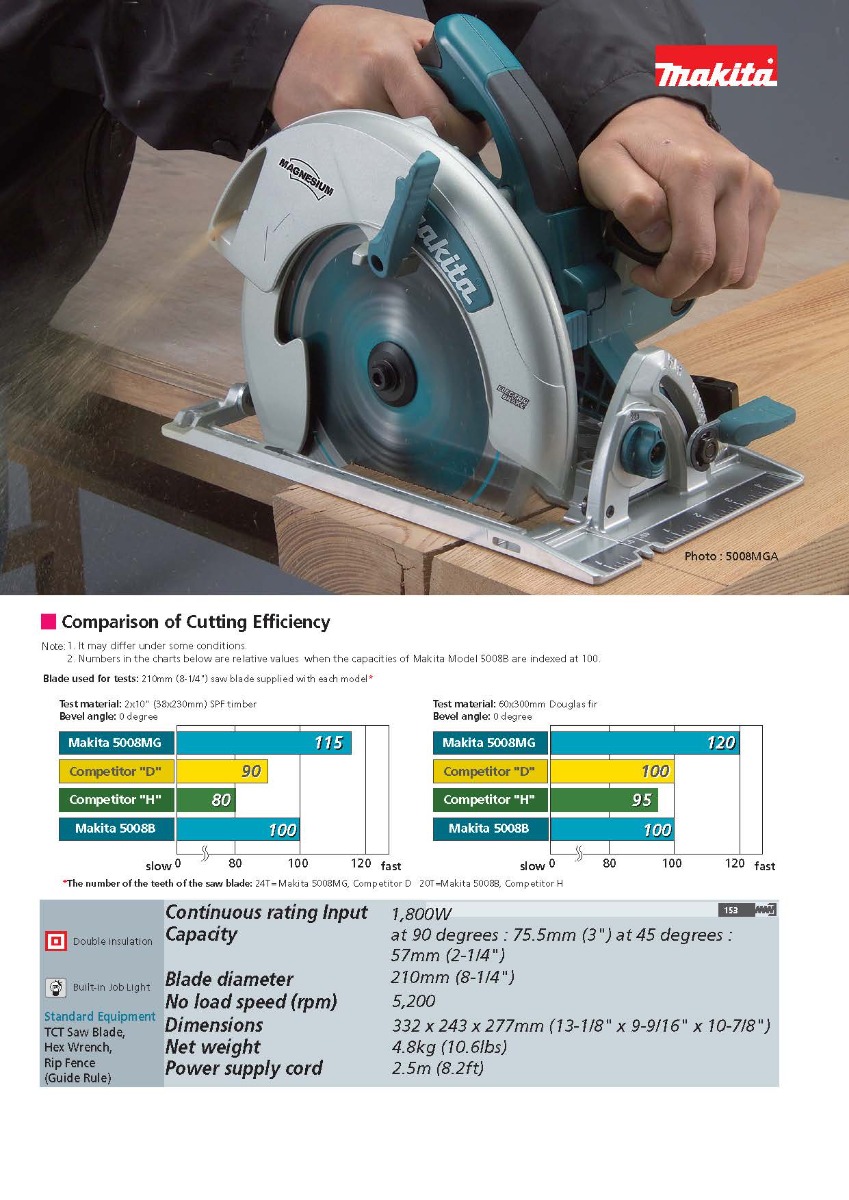

TECHNICAL SPECIFICATIONS

Blade Diameter : 8-1/4"
Arbor : 5/8"
Max. Cutting Capacity (at 90°) : 3"
Max. Cutting Capacity (at 45°) : 2-1/4"
Max. Cutting Capacity (at 50°) : 2"
No Load Speed : 5,200 RPM
Watts Out : 2,300
AMPS : 15
Overall Length : 13-1/8"
Net Weight : 11.4 lbs.
Power Type : Corded
Packaged Depth (in) : 12.6"
Packaged Height (in) : 13.58"
Packaged Width (in) : 18.11"
Shipping Weight : 17 lbs.
