SAW MITER 12"DOUBLE BEVEL SLIDE 15A 1675W XPS SHADOW LINE

INCLUDES

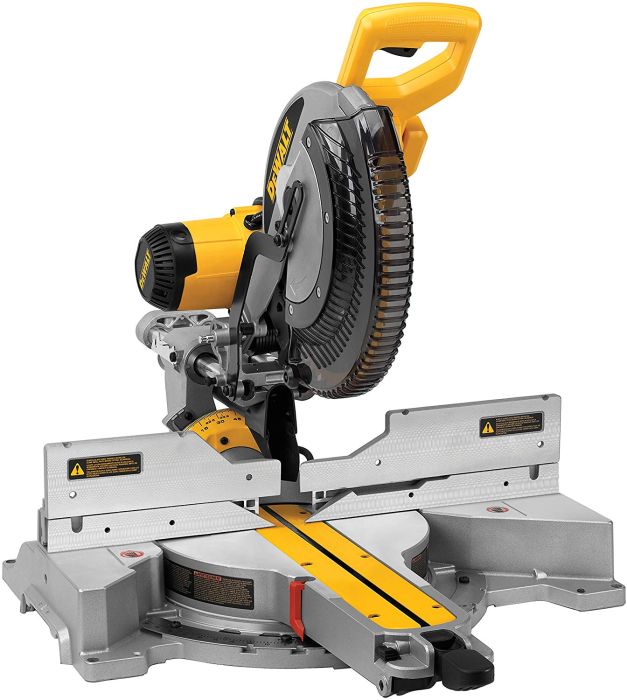

DWS780 12 in. Double Bevel Sliding Compound Miter Saw

(1) DWS780 12 in Miter Saw
(1) Blade Wrench
(1) Dust Bag
(1) Vertical Material Clamp
(1) 12 in Carbide Blade

PRODUCT FEATURES

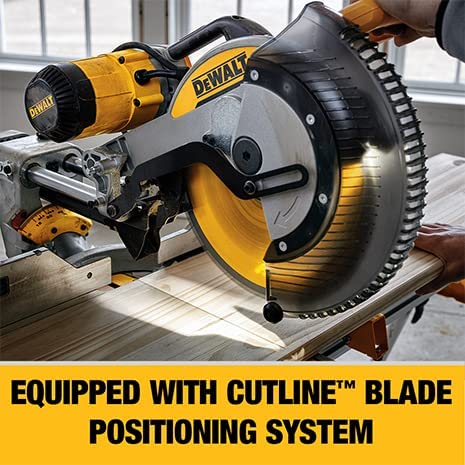

Integrated CUTLINE™ Blade Positioning System provides adjustment free cut line indication for better accuracy and visibility
Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability
Super-efficient dust collection system captures over 75% of dust generated
Tall sliding fences support crown molding up to 7-1/2 in. nested and base molding up to 6-3/4 in. vertically against the fence while easily sliding out of the way for bevel cuts
Exclusive back fence design cuts up to 2x14 dimensional lumber at 90° and 2x10 at 45°
Adjustable stainless-steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy
Miters 60° to the right and 50° to the left providing increased capacity

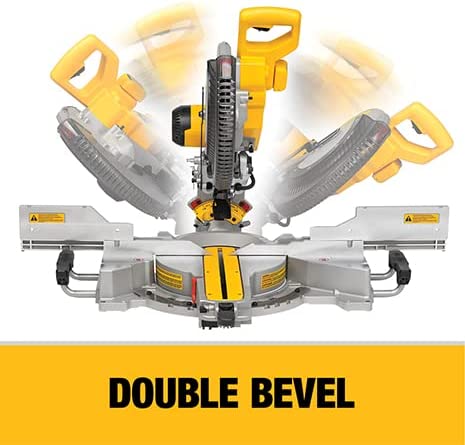

Oversized bevel scale makes bevel angle adjustments accurate and easy
Compact, lightweight design (58 lbs.) allows for easy transport and storage

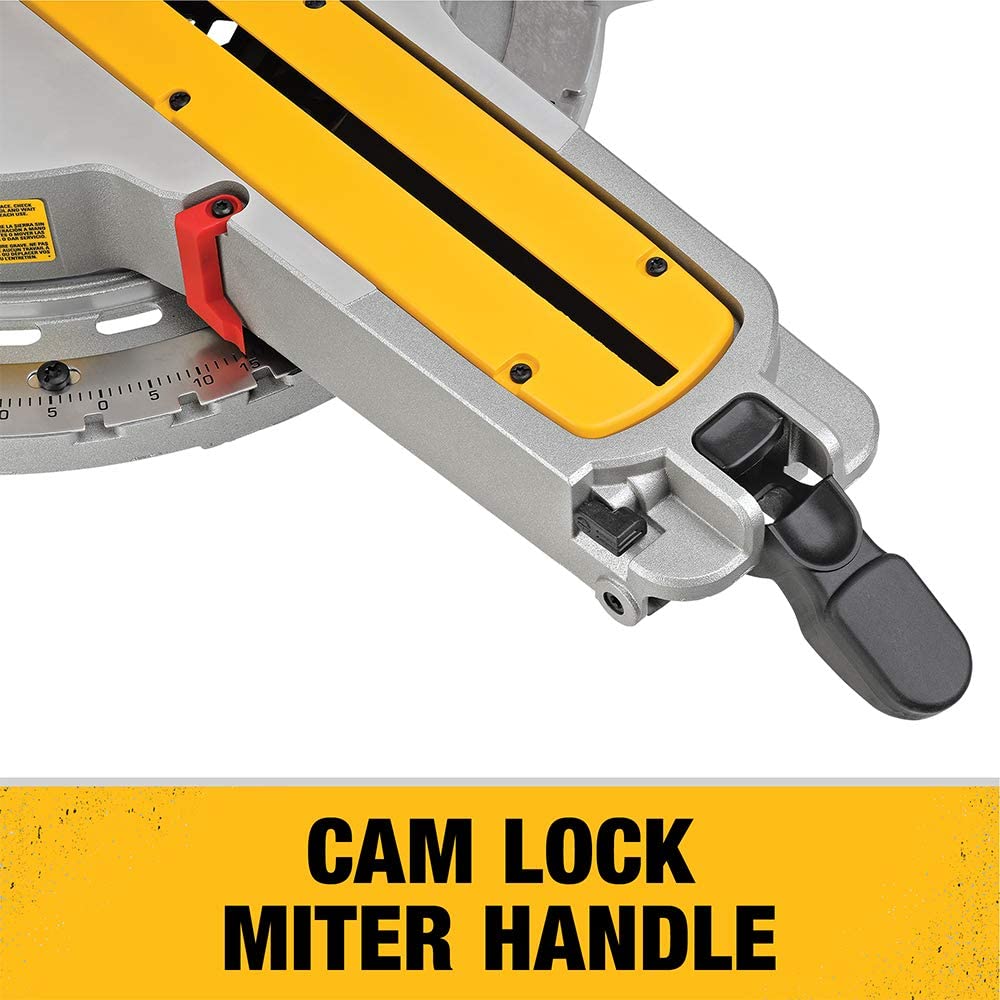

Cam lock miter handle with detent override deliver quick and accurate miter angles
Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact sawInnovative gearbox and belt-drive design increases vertical cutting capacity
Precise miter system and machined base fence support optimize durability and cutting accuracy

PRODUCT DESCRIPTION

The 12 in. Double Bevel Sliding Compound Miter Saw has a 15 Amp motor and integrated XPS crosscut positioning system for adjustment-free, accurate cut line indication. Tall sliding fences support 7-1/2 in. of nested crown and 6-3/4 in. of base molding vertically. Exclusive Back Fence Design cuts up to 2x14 dimensional lumber at 90 increased miter capacity of 60 (R) and 50 (L) features durable stainless-steel miter detent plate with cam lock for repeatable accuracy with easy adjustments.

TECHNICAL SPECIFICATIONS

Max. Depth of Cut 170 mm
Blade Speed 1900-3800 rpm
Blade Bore 30 mm
Bevel Capacity 49°/49°
Max. Cutting Capacity (90°/90°) 303 x 110 mm
Possible Mitre Angles 50 deg Left/60 deg Right
Accessories Included Yes
Weight (Including Battery) 56 lbs
No Load Speed (RPM) 3800
Tool Weight 56 lbs
Max. Watts Out 1675 W
Max. Cutting Capacity (45°/90°) 211 x 112 mm
Product Height 396 mm
Product Height 19.5 in
Product Width 23 in
Product Weight 24.8 Kg
Cord Length 6 ft
Uncertainty K1 (Vibration) 1.5 m/s2
Blade Diameter 305 mm
Blade Diameter 12 in
Power Output 960 W
Power Source Corded
Max. Cutting Capacity (90°/45°) 268 x 63 mm
Depth 470 mm
Power Input 1675 W
Depth 32.33 in
Dust Collection Yes
Product Length 770 mm
Product Weight 56 lbs
Shipping Weight 75 lb
