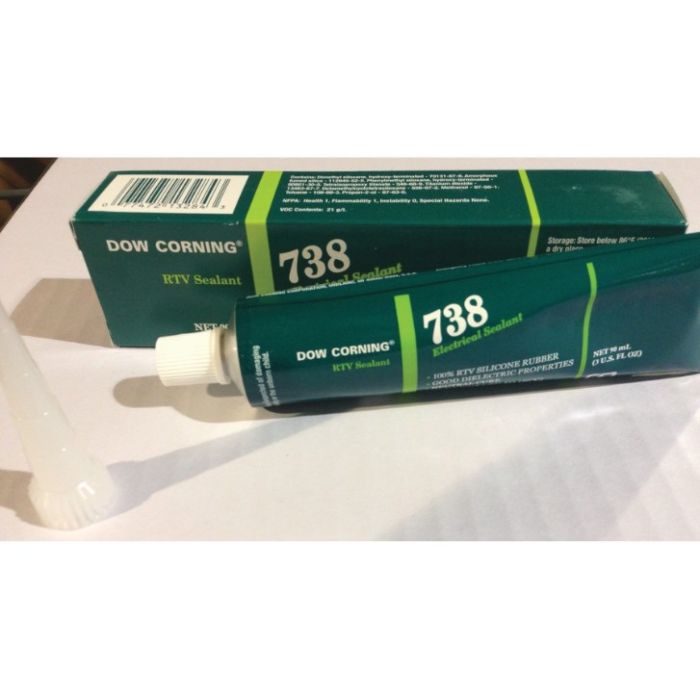

SEALANT ELECTRICAL 3OZ
PRODUCT FEATURES:
Non‑flowing, paste‑like consistency for precise application
Cures at room temperature through moisture in the air
High elongation for flexibility and stress relief
Excellent dielectric (electrical insulation) properties
Good adhesion to metals, glass, plastics, laminates, ceramics, and more
Silicon‑based, moisture‑curing chemistry suitable for many electrical assemblies and housings
In stock
Only 8 left
SKU
DOW-738
TTD569.00
PRODUCT DESCRIPTION:
DOW‑738 (formerly Dow Corning 738, now sold under the DOWSIL brand) is a high‑performance, one‑component electrical sealant designed for bonding and sealing electrical assemblies and components. In its 3 oz tube format (often part number D632087), it provides a non‑flowing, moisture‑cure silicone adhesive that forms a durable, flexible rubber upon cure. Its combination of high elongation, good tensile strength, and excellent dielectric strength makes it ideal for sealing housings, connections, printed circuit boards, motors, generators, and other electrical and electronic equipment without the need for ovens or mixing.
TYPICAL APPLICATIONS:
Sealing and bonding electrical enclosures and junction boxes
Insulating printed circuit boards and electronic assemblies
Potting or bonding components in motors, generators, and transformers
Sealing around wires, terminals, conduit ends, and connectors
General electrical assembly and maintenance work
Protection of components exposed to humidity or vibration
TECHNICAL SPECIFICATIONS:
Brand: Dow Corning
Item Model Number: 738
Product Type: Electrical Sealant
Composition: Silicone
Color: White
Cure Type: Moisture cure, RTV
Durometer: Shore A 35 (Hardness)
Tensile Strength: 360 psi
Elongation at Break: 500%
Dielectric Strength: 468 - 475 V/mil
Specific Gravity (Cured): 1.04
Tack - Free Time: 89 min @ 25 °C
Operating Temperature Range: –62 °C to +180 °C (peaks to +205 °C)
Shelf Life: 240 days unopened
Packaging: 3 oz tube
Shipping Weight: 1 lb
| SKU | DOW-738 |
|---|---|
| Weight | 1.000000 |
