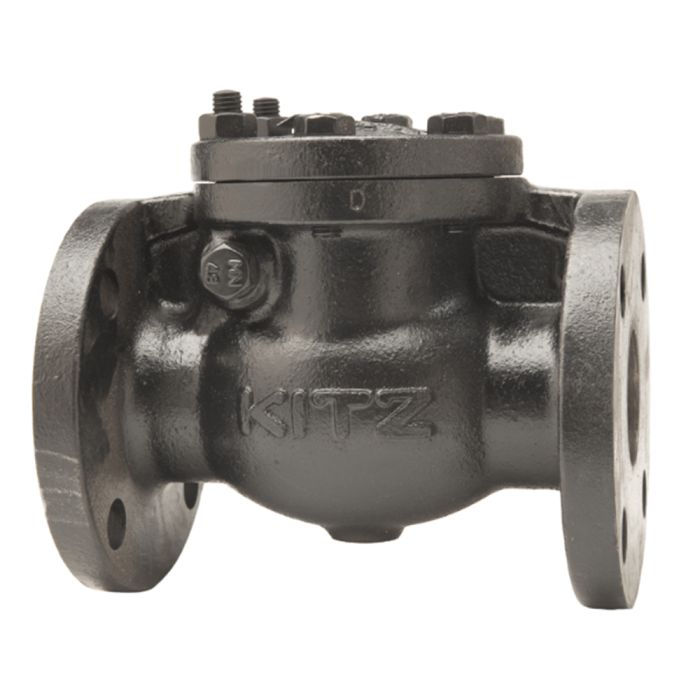

SWING CHECK VALVE 150# FS BB RF 2" TRIM 8 13%CR-1/2HF
The KITZ Swing Check Valve is a flanged, bolted bonnet valve engineered to maintain unidirectional flow and automatically prevent backflow in piping systems. Featuring a full steel (FS) body with raised face (RF) flanged ends, it ensures secure installation and long-term durability in demanding industrial environments. The swing-type disc opens under forward flow pressure and closes tightly against the seat when flow reverses, protecting downstream equipment such as pumps and compressors.
This valve is equipped with Trim 8 internals, utilizing 13% chromium stainless steel with hardfaced (HF) seating surfaces for enhanced resistance to corrosion, wear, and erosion. Manufactured to high-quality standards, it is suitable for applications involving water, oil, gas, and other general service fluids.
Specifications:
- Design: Swing Check Valve
- Pressure Rating: Class 150
- Size: 2"-8"
- Construction: Full Steel (FS), Bolted Bonnet (BB)
- End Connection: Raised Face Flanged (RF)
- Trim: Trim 8 – 13% Cr Stainless Steel with 1/2 HF
- Seat: Hardfaced
- Operation: Automatic (Non-return)
- Application: Prevents reverse flow in pipelines
- Typical Media: Water, Oil, Gas, and general industrial fluids
In stock
Only 1 left
SKU
312-KTZ205010
The KITZ Swing Check Valve is a flanged, bolted bonnet valve engineered to maintain unidirectional flow and automatically prevent backflow in piping systems. Featuring a full steel (FS) body with raised face (RF) flanged ends, it ensures secure installation and long-term durability in demanding industrial environments. The swing-type disc opens under forward flow pressure and closes tightly against the seat when flow reverses, protecting downstream equipment such as pumps and compressors.

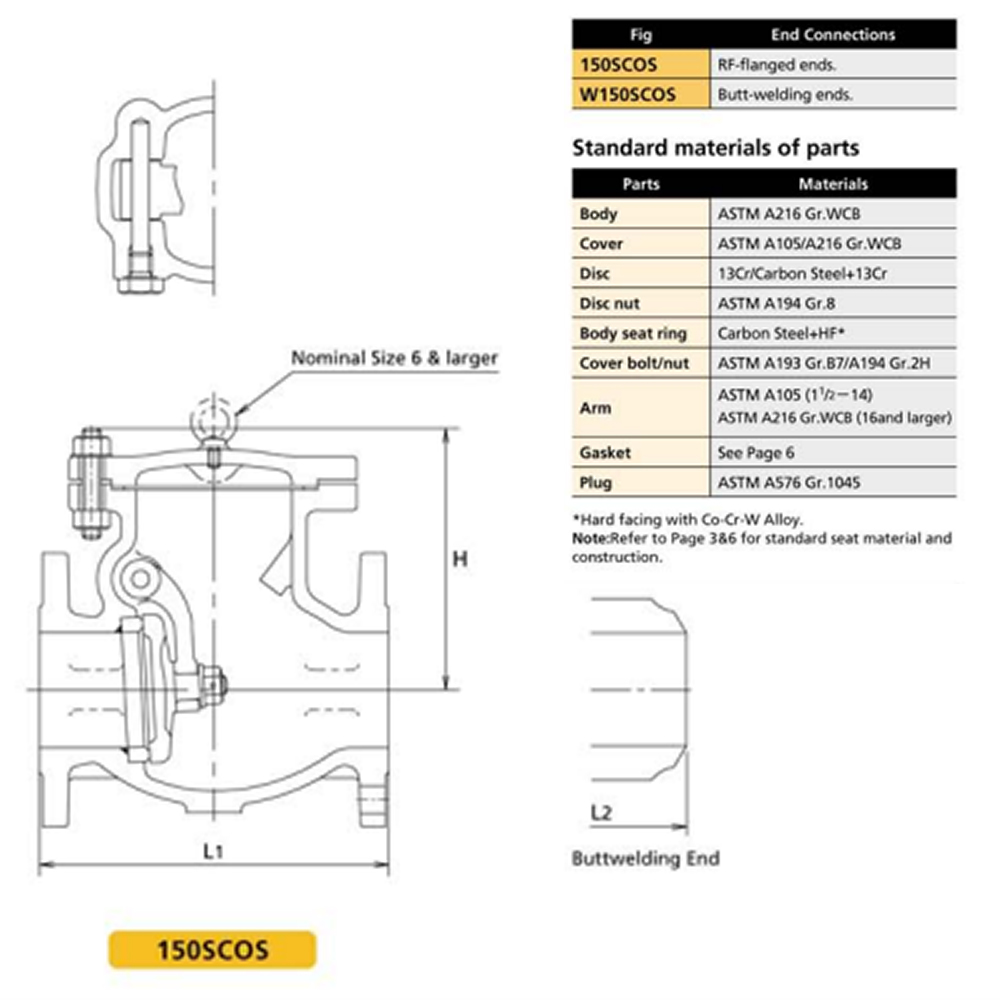

MATERIALS AND CONSTRUCTION

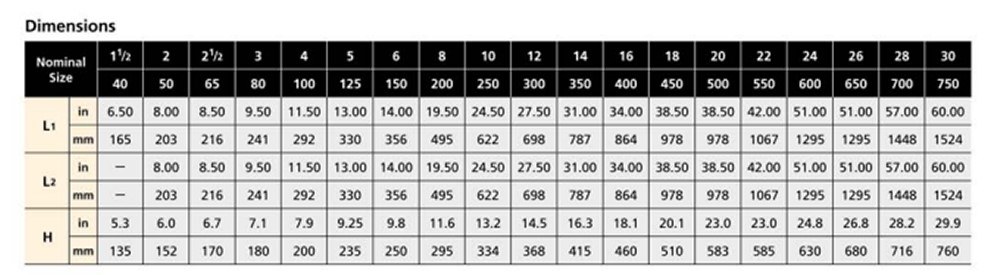

DIMENSIONS
| SKU | 312-KTZ205010 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | KITZ. |
