SWING CHECK VALVE 300# FS BB RF 6" TRIM 8 13%CR-1/2HF
The KITZ Swing Check Valve is a flanged, bolted bonnet valve designed to maintain unidirectional flow and automatically prevent backflow in piping systems. Featuring a full steel (FS) body with raised face (RF) flanged ends, it ensures secure installation and long-term durability in demanding industrial environments. The swing-type disc operates automatically, opening under forward flow pressure and closing tightly against the seat when flow reverses, effectively protecting downstream equipment such as pumps and compressors.
This valve is equipped with Trim 8 internals, incorporating 13% chromium stainless steel with hardfaced (HF) seating surfaces for enhanced resistance to corrosion, wear, and erosion. Manufactured to high-quality standards, it is suitable for use in water, oil, gas, and other general industrial applications.
Specifications:
- Design: Swing Check Valve
- Pressure Rating: Class 300
- Size Range: 2" – 8"
- Construction: Full Steel (FS), Bolted Bonnet (BB)
- End Connection: Raised Face Flanged (RF)
- Trim: Trim 8 – 13% Cr Stainless Steel with 1/2 HF
- Seat: Hardfaced
- Operation: Automatic (Non-return)
- Application: Backflow prevention in pipelines
In stock
Only 1 left
SKU
312-KTZ205110
The KITZ Swing Check Valve is a flanged, bolted bonnet valve engineered to maintain unidirectional flow and automatically prevent backflow in piping systems. Featuring a full steel (FS) body with raised face (RF) flanged ends, it ensures secure installation and long-term durability in demanding industrial environments. The swing-type disc opens under forward flow pressure and closes tightly against the seat when flow reverses, protecting downstream equipment such as pumps and compressors.

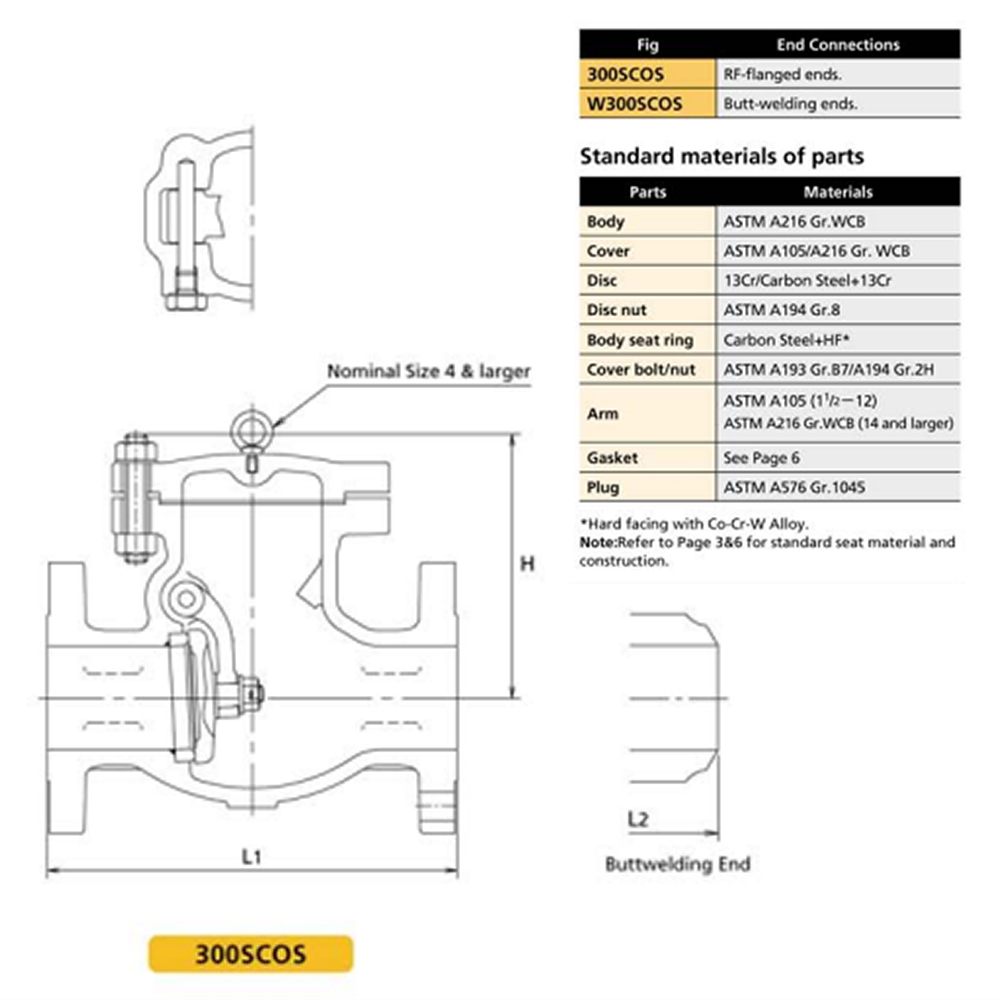

MATERIALS AND CONSTRUCTION

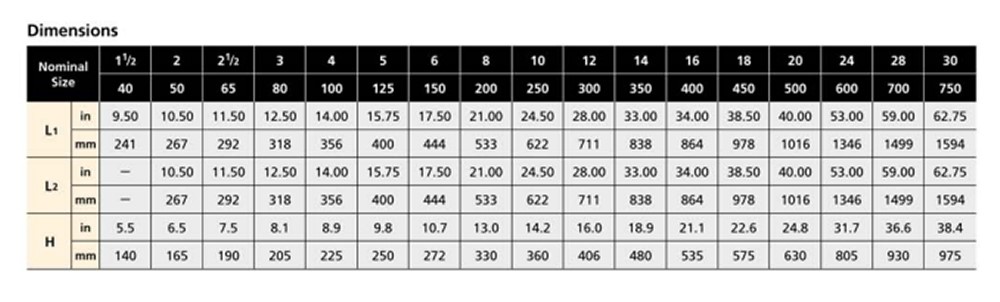

DIMENSIONS
| SKU | 312-KTZ205110 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | KITZ. |
