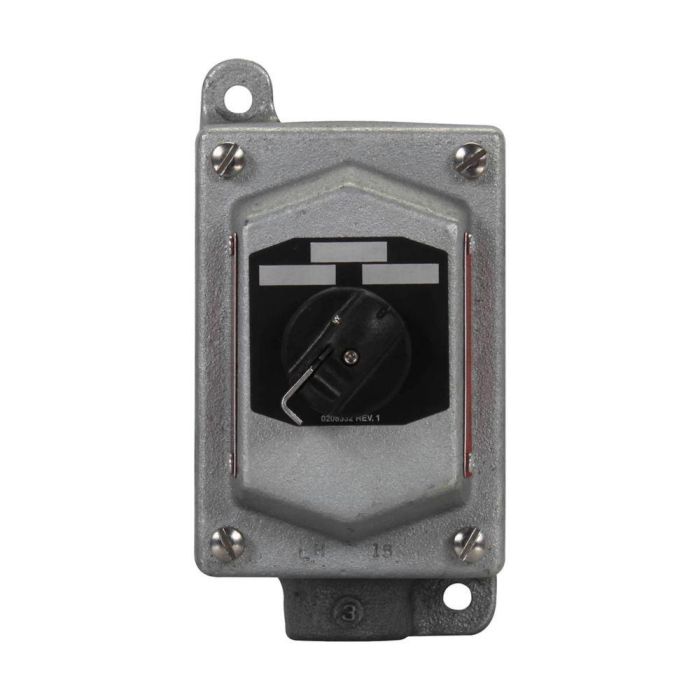

SWITCH CONTROL STATION W/ONE HUB
PRODUCT FEATURES
Area classification - Hazardous/Classified Locations
Standards type - NEC/CEC
NEC hazardous rating - Class I, Division 1
Class I, Division 2
Class II, Division 1
Class II, Division 2
Class III
NEMA Rating - 3
7
9
INCLUDES
(1) EDSX, EDS and EFS Hazardous Area Pushbutton, Pilot Light and Selector Switch Control Stations EDS11274
Area classification - Hazardous/Classified Locations
Standards type - NEC/CEC
NEC hazardous rating - Class I, Division 1
Class I, Division 2
Class II, Division 1
Class II, Division 2
Class III
NEMA Rating - 3
7
9
INCLUDES
(1) EDSX, EDS and EFS Hazardous Area Pushbutton, Pilot Light and Selector Switch Control Stations EDS11274
In stock
Only 1 left
SKU
EATON-EDS11274
TTD8,259.00
PRODUCT DESCRIPTION
Eaton Crouse-Hinds series EDS selector switch control station, With selector switch, With one 1/2" hub, Feraloy iron alloy, Three-position, four-circuit, 4, 1, Single-gang, 3, Dead end, 1/2", 600 Vac
TECHNICAL SPECIFICATIONS
SKU: EDS11274
Brand: Eaton
Enclosure type: With selector switch
Voltage rating: 600 Vac
Number of gangs: Single-gang
Number of devices: 1
Normal position: Three-position, four-circuit
Style: Dead end
Trade size: 1/2"
Number Of Positions: 3
Number of circuits: 4
Hub style: With one 1/2" hub
Material: Feraloy iron alloy
Product Length/Depth: 5.9 in
Product Height: 5.44 in
Product Width: 3.5 in
Item Weight: 8.72lbs
Shipping Weight: 9lbs
Eaton Crouse-Hinds series EDS selector switch control station, With selector switch, With one 1/2" hub, Feraloy iron alloy, Three-position, four-circuit, 4, 1, Single-gang, 3, Dead end, 1/2", 600 Vac
TECHNICAL SPECIFICATIONS
SKU: EDS11274
Brand: Eaton
Enclosure type: With selector switch
Voltage rating: 600 Vac
Number of gangs: Single-gang
Number of devices: 1
Normal position: Three-position, four-circuit
Style: Dead end
Trade size: 1/2"
Number Of Positions: 3
Number of circuits: 4
Hub style: With one 1/2" hub
Material: Feraloy iron alloy
Product Length/Depth: 5.9 in
Product Height: 5.44 in
Product Width: 3.5 in
Item Weight: 8.72lbs
Shipping Weight: 9lbs
| SKU | EATON-EDS11274 |
|---|---|
| Weight | 9.000000 |
| Manufacturer | EATON |
