TANK 4.4 GAL IN-LINE
PRODUCT FEATURES
Inline well tank
Deep drawn domes are double the strength of rolled steel
The industry's thickest diaphragm provides extra strength and flexibility
Seamless design conforms exactly to the shell without stretching, creasing or forming bubbles that could trap water or sediment
Unique hoop ring and groove design secures the diaphragm, liner and shell for added strength and reliability
Inline well tank
Deep drawn domes are double the strength of rolled steel
The industry's thickest diaphragm provides extra strength and flexibility
Seamless design conforms exactly to the shell without stretching, creasing or forming bubbles that could trap water or sediment
Unique hoop ring and groove design secures the diaphragm, liner and shell for added strength and reliability
In stock
Only 2 left
SKU
WELLX-WX102
TTD1,089.00
INCLUDES

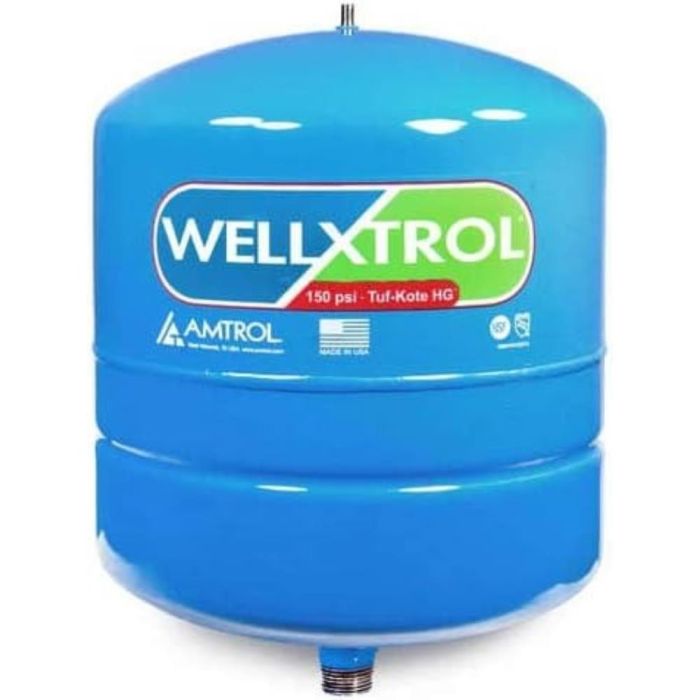

(1) AMTROL WX-102 Pre-Pressurized Well Tank
PRODUCT DESCRIPTION
TECHNICAL SPECIFICATIONS
Tank Volume: 4.4 Gallons
Max Accept. Factor: 0.55
Precharged PSI: 18
Connection Size: 3/4"
Max Pressure (PSI): 150
Height (Inches): 15"
Diameter (Inches): 11"
Item Weight (lbs): 9 lbs
Warranty: 7 Year Limited
Max Temp (F): 200°F
Coating: Blue Enamel
Shell Material: Steel
Diaphragm Material: Heavy Duty Butyl
Liner Material: Virgin Polypropylene
Application: Plumbing
Shipping Weight: 10lbs
(1) AMTROL WX-102 Pre-Pressurized Well Tank
PRODUCT DESCRIPTION
TECHNICAL SPECIFICATIONS
Tank Volume: 4.4 Gallons
Max Accept. Factor: 0.55
Precharged PSI: 18
Connection Size: 3/4"
Max Pressure (PSI): 150
Height (Inches): 15"
Diameter (Inches): 11"
Item Weight (lbs): 9 lbs
Warranty: 7 Year Limited
Max Temp (F): 200°F
Coating: Blue Enamel
Shell Material: Steel
Diaphragm Material: Heavy Duty Butyl
Liner Material: Virgin Polypropylene
Application: Plumbing
Shipping Weight: 10lbs
| SKU | WELLX-WX102 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | WELLXTROL |
