V.GLOBE SW WB 316 800 1".
Globe valves are closing-down valves in which the disc moves squarely on and off the seat, making the port opening directly proportional to the travel of the disc. This proportional relationship makes them ideal for applications requiring precise flow regulation. For enhanced control, the disc can be designed in parabolic, needle, or vee-port types. The short travel between open and closed positions also makes globe valves well-suited for frequent on-off service. These valves are unidirectional and are typically installed with fluid pressure applied under the disc.
SIZES:
Depends on product (see item name)
PRESSURE CLASS:
800 to 2500
END CONNECTIONS:
Threaded, Socketweld, Flanged, Buttweld
BONNET DESIGNS:
Bolted, Welded
In stock
Only 1 left
SKU
311-GVSWWB36812
Attachments (1)
Globe valves are closing-down valves in which the disc moves squarely on and off the seat, making the port opening directly proportional to the travel of the disc. This proportional relationship makes them ideal for applications requiring precise flow regulation. For enhanced control, the disc can be designed in parabolic, needle, or vee-port types. The short travel between open and closed positions also makes globe valves well-suited for frequent on-off service. These valves are unidirectional and are typically installed with fluid pressure applied under the disc.
DIAGRAM:
MATERIAL LIST:
DESIGN & CONSTRUCTION:
- API 602, ASME B16.34
- Bolted & welded bonnet
- Reduced and full port
- Threaded, Socketweld, Buttweld, ends class 800 to 1500
- Flanged ends class 150 - 2500
- Bonnet constructed of forged steel with integral backseat
- Nameplate serialized for full traceability
- API 622 and API 624 qualified packing for low emissions
- Forged arrow on the body indicates flow direction

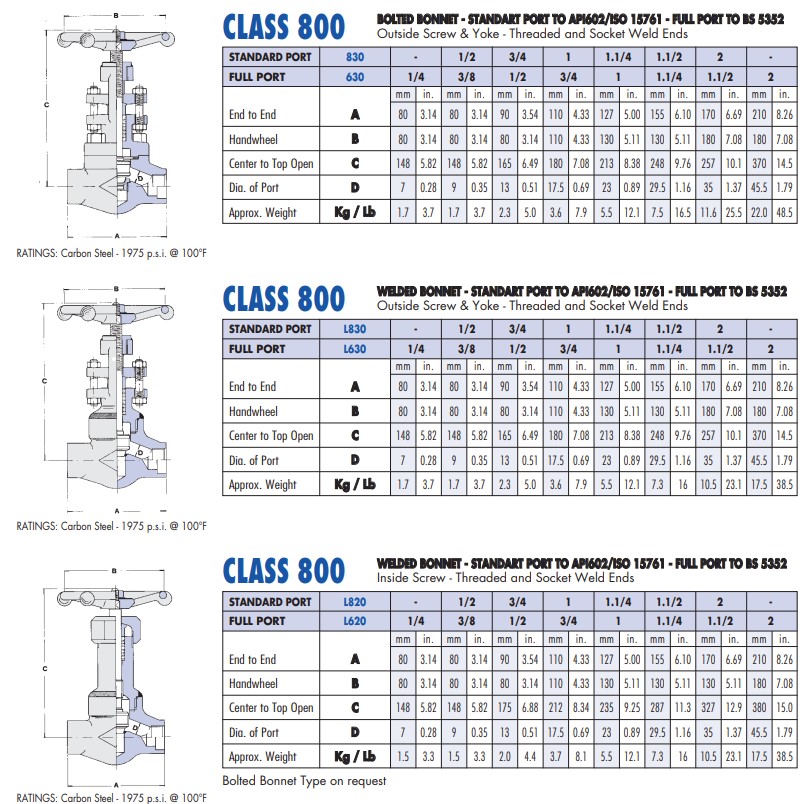

DIMENSIONAL DATA:
| SKU | 311-GVSWWB36812 |
|---|---|
| Weight | 5.000000 |
