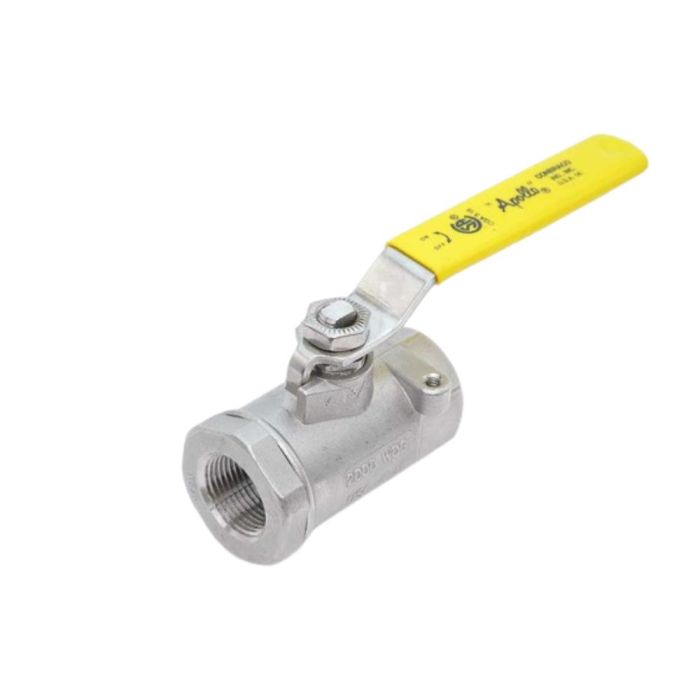

VAL BAL SS NPT 1500 1-1/2
PRODUCT FEATURES
Investment cast components
Reinforced seat
Mounting pad for easy actuator mounting
Blow-out proof stem design
Stainless steel lever and nut
304 stainless steel lever with vinyl grip
150 psig saturated steam
Investment cast components
Reinforced seat
Mounting pad for easy actuator mounting
Blow-out proof stem design
Stainless steel lever and nut
304 stainless steel lever with vinyl grip
150 psig saturated steam
In stock
Only 4 left
SKU
CON-7610701
INCLUDES
(1) Apollo™ 76-107-01, 76-100 Series 2-Piece Standard Configuration Ball Valve, 1-1/2 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
PRODUCT DESCRIPTION
Apollo 76-107-01 Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1-1/2 in Nominal, FNPT End Style, 1500 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 4.34 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Stainless Steel Body, RPTFE/Stainless Steel Trim, Domestic
TECHNICAL SPECIFICATION
SKU: 7610701
Brand: Apollo™
Item Weight: 4.04 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/RPTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.34 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 76-100
Top to Inlet Center: 3-1/4 in
Trim Material: RPTFE/Stainless Steel
Type: 2-Piece
Includes: Adjustable Packing Gland
Domestic/Import: Domestic
Country of Origin: US
Shipping Weight: 5lbs
(1) Apollo™ 76-107-01, 76-100 Series 2-Piece Standard Configuration Ball Valve, 1-1/2 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/RPTFE Softgoods, Domestic
PRODUCT DESCRIPTION
Apollo 76-107-01 Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1-1/2 in Nominal, FNPT End Style, 1500 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 4.34 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Stainless Steel Body, RPTFE/Stainless Steel Trim, Domestic
TECHNICAL SPECIFICATION
SKU: 7610701
Brand: Apollo™
Item Weight: 4.04 lbs
Nominal Size: 1-1/2 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/RPTFE
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 4.34 in
Manufacturer Name: Apollo Conbraco
Media: Water
Series: 76-100
Top to Inlet Center: 3-1/4 in
Trim Material: RPTFE/Stainless Steel
Type: 2-Piece
Includes: Adjustable Packing Gland
Domestic/Import: Domestic
Country of Origin: US
Shipping Weight: 5lbs
| SKU | CON-7610701 |
|---|---|
| Weight | 5.000000 |
| Manufacturer | APOLLO VALVES |
