VALV BALL SS NPT 1000 1/2
PRODUCT FEATURES
2-Piece cast stainless steel body
RPTFE seats and stuffing box ring
Mounting pad for easy actuator mounting
Blow-out proof stem design
Adjustable packing gland
SS lever and nut
1/2" 1000# Full Port Stainless Steel BallVl
2-Piece cast stainless steel body
RPTFE seats and stuffing box ring
Mounting pad for easy actuator mounting
Blow-out proof stem design
Adjustable packing gland
SS lever and nut
1/2" 1000# Full Port Stainless Steel BallVl
In stock
Only 22 left
SKU
CON-7610301
INCLUDES

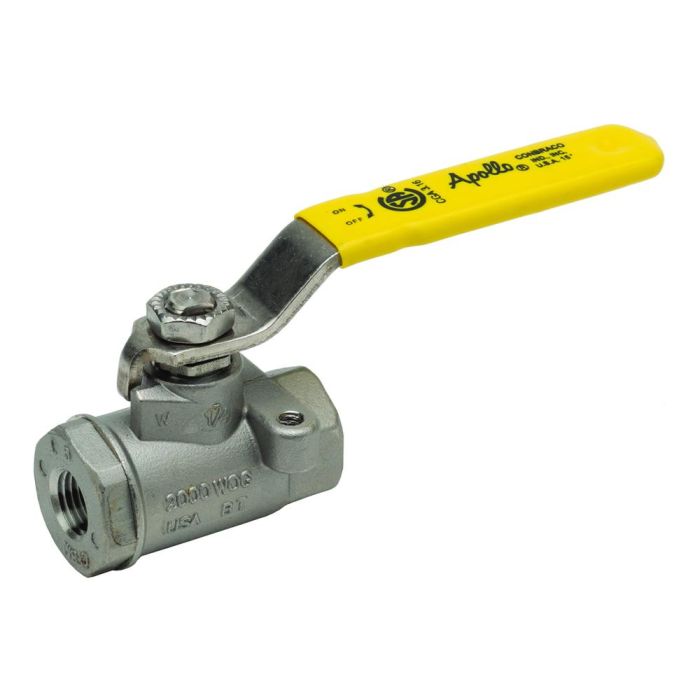

(1) Conbraco / Apollo Valves 76-103-01 1/2" 1000# Full Port Stainless Steel BallVl
PRODUCT DESCRIPTION
Apollo™, 7610301 1/2" SS Ball Valve Std Port 2-Piece cast Brass body RPTFE seats and stuffing box ring Mounting pad for easy actuator mounting Blow-out proof stem design Adjustable packing gland Stainless Steel lever and nut Pressure ratings 1000 psig WOG
TECHNICAL SPECIFICATION
SKU: 76-103-01
Manufacturer: Apollo
Series: 76-100
Connection: Threaded
Material: Stainless Steel
Type: Ball Valve
Option: Lead-Free
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: FNPT
Inlet to Outlet Length: 2.23 in
Media: Water
Nominal Size: 1/2 in
Port Type: Standard
Pressure Rating: 1000 psi CWP
Softgoods Material: MPTFE/PTFE
Top to Inlet Center: 1.12 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Item Weight: 0.63lbs
Shipping Weight: 1lb
(1) Conbraco / Apollo Valves 76-103-01 1/2" 1000# Full Port Stainless Steel BallVl
PRODUCT DESCRIPTION
Apollo™, 7610301 1/2" SS Ball Valve Std Port 2-Piece cast Brass body RPTFE seats and stuffing box ring Mounting pad for easy actuator mounting Blow-out proof stem design Adjustable packing gland Stainless Steel lever and nut Pressure ratings 1000 psig WOG
TECHNICAL SPECIFICATION
SKU: 76-103-01
Manufacturer: Apollo
Series: 76-100
Connection: Threaded
Material: Stainless Steel
Type: Ball Valve
Option: Lead-Free
Actuator Type: Lever Handle
Ball Material: 316 Stainless Steel
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: FNPT
Inlet to Outlet Length: 2.23 in
Media: Water
Nominal Size: 1/2 in
Port Type: Standard
Pressure Rating: 1000 psi CWP
Softgoods Material: MPTFE/PTFE
Top to Inlet Center: 1.12 in
Trim Material: 316 Stainless Steel/PTFE
Type: 2-Piece
Item Weight: 0.63lbs
Shipping Weight: 1lb
| SKU | CON-7610301 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | APOLLO VALVES |
