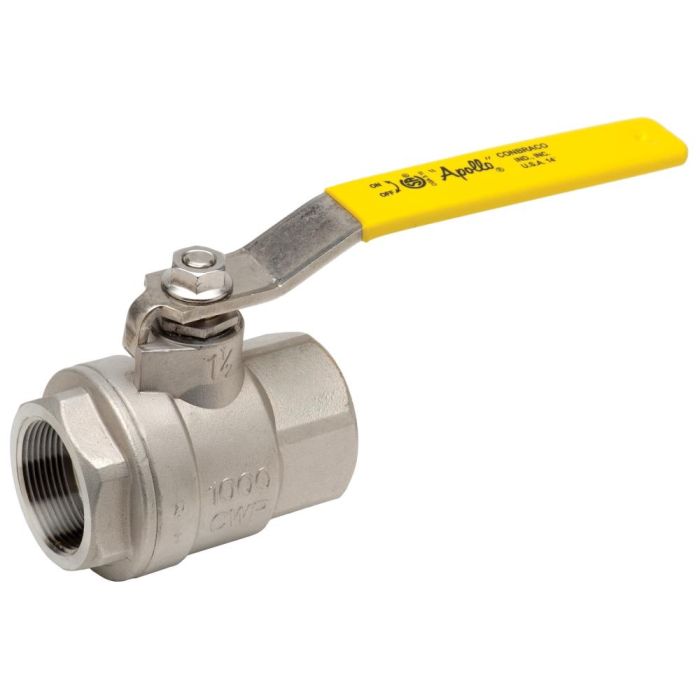

VALV BALL SS NPT 1000 1/2 CON-76F10301
PRODUCT FEATURES
Investment cast components
Blow-out proof stem
Vacuum service to 29 in Hg
ASTM A351-CF8M stainless retainer
ASTM A276-316 stainless steel gland
304 stainless steel lever nut
RPTFE (1/2 to 3 in) body seal
Stainless steel with vinyl lever and grip
Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
150 psig saturated steam
MPTFE stem packing/body seal
Investment cast components
Blow-out proof stem
Vacuum service to 29 in Hg
ASTM A351-CF8M stainless retainer
ASTM A276-316 stainless steel gland
304 stainless steel lever nut
RPTFE (1/2 to 3 in) body seal
Stainless steel with vinyl lever and grip
Complies with Federal Public law 111-380, ANSI 3Rd Party approved and listed
150 psig saturated steam
MPTFE stem packing/body seal
In stock
Only 12 left
SKU
CON-76F10301
INCLUDES
(1) Conbraco / Apollo Valves 76F-103-01 1/2" 1000# Full Port SS BallVl
PRODUCT DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 76F-100-A, 1/2 in Nominal, FNPT, 1000 psig CWP, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.35 in Inlet to Outlet Length, 1.73 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and PTFE Seat Trim, MPTFE, Domestic
TECHNICAL SPECIFICATION
Nominal Size: 1/2 in
Series: 76F-100
CPS Part Number: 56629
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Body Material: Stainless Steel
Brand Name: Apollo™
BuyLine: APOL
Category: Ball Valves
Category Name: Valves & Actuators
Client Name: Consumers Pipe & Supply Co. Inc.
Country of Origin: USA
DESC SIZE: 1/2 in
Description: 76F10301A 1/2 76F-103-01A 316SS FULL PORT THRD BALL VALVE, 1000 WOG
Domestic or Import: Domestic
End Style: FNPT
Includes: Adjustable Packing Gland
Keywords: 76F10301
Manufacturer: Apollo Conbraco
Manufacturer Description: BV,1/2IN NPT,FP,SS,76F SOLD IN BOXES OF 10 ONLY
Manufacturer ID: 6180
Manufacturer Part Number: 76F-103-01
Media: Water
Part Number: PHCP_409837
Part Number Keywords: 76F-103-01 ; 76F10301 ; 670750114403 ; 67075011440
Port Type: Full
Pressure Rating: 1000 psig CWP
Product Name: BALL VALVE
SIZE: 1/2 in
Softgoods Material: MPTFE
Top To Inlet Center: 1.73 in
Trim Material: 316 Stainless Steel Stem and PTFE Seat
Type: Shut-Off Valves
Item Weight: 0.57lbs
Shipping Weight: 1lb
(1) Conbraco / Apollo Valves 76F-103-01 1/2" 1000# Full Port SS BallVl
PRODUCT DESCRIPTION
Apollo™ Ball Valve, 2-Piece, Series: 76F-100-A, 1/2 in Nominal, FNPT, 1000 psig CWP, Full Port, Media: Water, Lever Operated Actuator, 316 Stainless Steel Ball, 2.35 in Inlet to Outlet Length, 1.73 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem and PTFE Seat Trim, MPTFE, Domestic
TECHNICAL SPECIFICATION
Nominal Size: 1/2 in
Series: 76F-100
CPS Part Number: 56629
Actuator Type: Lever Operated
Ball Material: 316 Stainless Steel
Body Material: Stainless Steel
Brand Name: Apollo™
BuyLine: APOL
Category: Ball Valves
Category Name: Valves & Actuators
Client Name: Consumers Pipe & Supply Co. Inc.
Country of Origin: USA
DESC SIZE: 1/2 in
Description: 76F10301A 1/2 76F-103-01A 316SS FULL PORT THRD BALL VALVE, 1000 WOG
Domestic or Import: Domestic
End Style: FNPT
Includes: Adjustable Packing Gland
Keywords: 76F10301
Manufacturer: Apollo Conbraco
Manufacturer Description: BV,1/2IN NPT,FP,SS,76F SOLD IN BOXES OF 10 ONLY
Manufacturer ID: 6180
Manufacturer Part Number: 76F-103-01
Media: Water
Part Number: PHCP_409837
Part Number Keywords: 76F-103-01 ; 76F10301 ; 670750114403 ; 67075011440
Port Type: Full
Pressure Rating: 1000 psig CWP
Product Name: BALL VALVE
SIZE: 1/2 in
Softgoods Material: MPTFE
Top To Inlet Center: 1.73 in
Trim Material: 316 Stainless Steel Stem and PTFE Seat
Type: Shut-Off Valves
Item Weight: 0.57lbs
Shipping Weight: 1lb
| SKU | CON-76F10301 |
|---|---|
| Weight | 1.000000 |
| Manufacturer | APOLLO VALVES |
