VALV BL SS SW 3P SP 1-1/4
PRODUCT FEATURES
01 - standard configuration
Stainless steel trim and hardware
Swing out center section
Pressure balanced solid ball
Compression controlled RPTFE gaskets
Anti-blowout one piece bottom entry stem
Two-position locking device
Adjustable multi-piece PTFE "V" style packing
Fully machined ISO 5211 mounting
Cast bosses on the center-section and end caps for bleed and drain ports
Vacuum service to 29 in Hg
150 psig saturated steam
PTFE packing
INCLUDES
(1) Apollo™ 86A20601 86A-200 86A-200 3-Piece Ball Valve, 1-1/4 in Nominal, Socket Weld End Style, Stainless Steel Body
01 - standard configuration
Stainless steel trim and hardware
Swing out center section
Pressure balanced solid ball
Compression controlled RPTFE gaskets
Anti-blowout one piece bottom entry stem
Two-position locking device
Adjustable multi-piece PTFE "V" style packing
Fully machined ISO 5211 mounting
Cast bosses on the center-section and end caps for bleed and drain ports
Vacuum service to 29 in Hg
150 psig saturated steam
PTFE packing
INCLUDES
(1) Apollo™ 86A20601 86A-200 86A-200 3-Piece Ball Valve, 1-1/4 in Nominal, Socket Weld End Style, Stainless Steel Body
In stock
Only 2 left
SKU
CON-8520601
Attachments (1)
PRODUCT DESCRIPTION

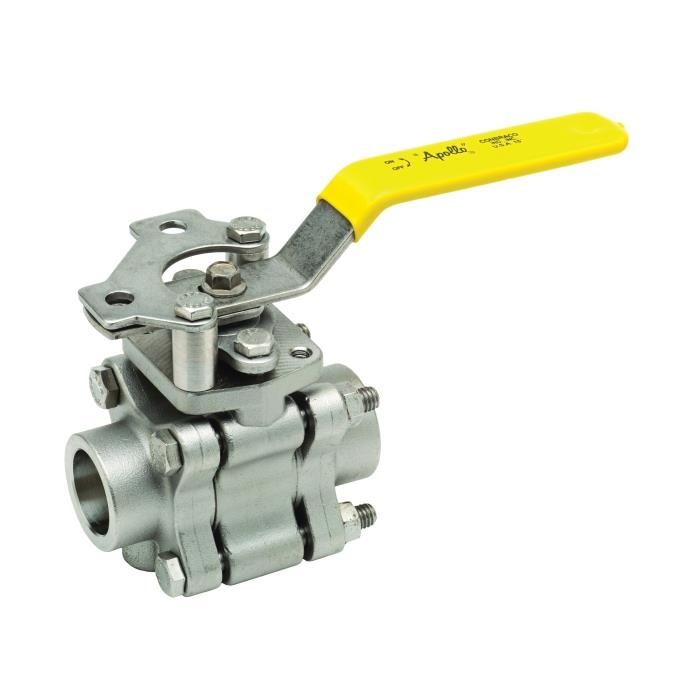

Apollo™ Ball Valve, 3-Piece, Series: 86A-200, 1-1/4 in Nominal, Socket Weld End Style, 1500 psig CWP Pressure, Full Port, Lever Operated Actuator, Stainless Steel Ball, 4-1/2 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
TECHNICAL SPECIFICATIONS
SKU: 86A20601
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: Socket Weld
Inlet to Outlet Length: 4-1/2 in
Nominal Size: 1-1/4 In
Port Type: Full
Pressure Rating: 1500 psig CWP
Series: 86A-200
Softgoods Material: PTFE
Top to Inlet Center: 4.7 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Item Weight: 2.56lbs
Shipping Weight: 3lbs
Apollo™ Ball Valve, 3-Piece, Series: 86A-200, 1-1/4 in Nominal, Socket Weld End Style, 1500 psig CWP Pressure, Full Port, Lever Operated Actuator, Stainless Steel Ball, 4-1/2 in Inlet to Outlet Length, 4.7 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
TECHNICAL SPECIFICATIONS
SKU: 86A20601
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: Socket Weld
Inlet to Outlet Length: 4-1/2 in
Nominal Size: 1-1/4 In
Port Type: Full
Pressure Rating: 1500 psig CWP
Series: 86A-200
Softgoods Material: PTFE
Top to Inlet Center: 4.7 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Item Weight: 2.56lbs
Shipping Weight: 3lbs
| SKU | CON-8520601 |
|---|---|
| Weight | 3.000000 |
| Manufacturer | APOLLO VALVES |
