VBALL FS FP RF 150 LO 3
PRODUCT FEATURES:
Full port design for minimal pressure drop and maximum flow efficiency
ASTM A216 WCB carbon steel body construction
ASME Class 150 flanged connections
Blowout-proof stem design for enhanced safety
Anti-static grounded ball and stem
Chevron-style adjustable stem seals
Slot-vented ball for thermal expansion protection
ISO 5211 actuator mounting pad for automation compatibility
Vacuum service capability up to 29 in. Hg
Rated for saturated steam service up to 150 psig
Suitable for air, oil, water, gas, steam, and industrial fluids
COMMON APPLICATIONS:
Industrial processing plants
Oil and gas pipelines
Chemical processing systems
HVAC and mechanical systems
Steam distribution systems
Compressed air systems
Water treatment facilities
Fire protection systems
In stock
Only 5 left
SKU
CON-88A24024
PRODUCT DESCRIPTION:
The Apollo 88A-200 Series Carbon Steel ASME Class 150 Full Port Flanged Ball Valve is a rugged industrial valve engineered for dependable shutoff and high-flow performance in demanding piping systems. Constructed from durable ASTM A216 WCB carbon steel, this full-port valve minimizes pressure drop while providing efficient flow control for water, oil, gas, steam, compressed air, and chemical applications. Designed with ASME Class 150 flanged connections, blowout-proof stem protection, anti-static features, and ISO 5211 actuator mounting capability, the 88A-200 Series delivers reliable operation, long service life, and easy automation integration in industrial, commercial, and process environments.
STANDARDS:
ASME B16.5
API 607
ISO 10497
TECHNICAL SPECIFICATIONS:
Brand: Apollo Valves
Item Model Number: CON-88A24024
Valve Series: 88A-200
Valve Type: Full Port Flanged Ball Valve
Pressure Class: ASME Class 150
Connection Type: Raised Face Flanged
Port Type: Full Port
Temperature Rating: Up to 400ºF (240ºC)
Steam Rating: Up to 150 PSIG Standard Steam
Vaccum Rating: 29in. Hg
Operation: Lever Operated
Mounting Standard: ISO 5211
Media Compatibility: Water, Oil, Gas, Stem, Air
End Connection: ASME Flange RF
Shipping Weight: 10 lbs

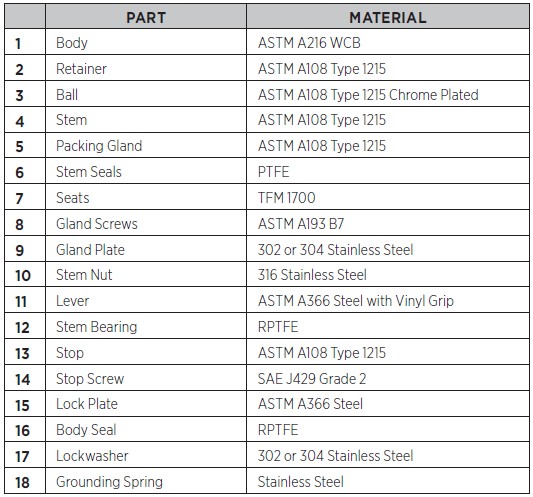

STANDARD MATERIAL LIST:

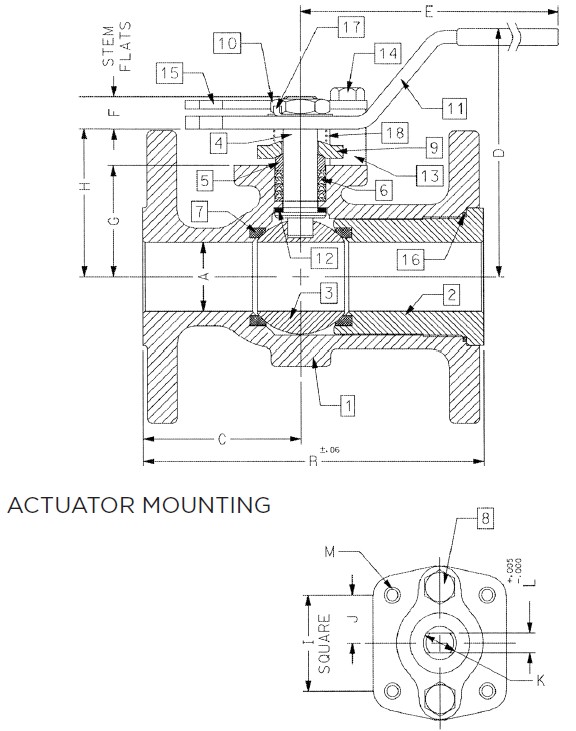

DIAGRAM:

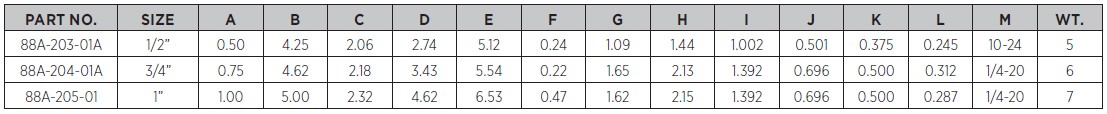

DIMENSIONS:
| SKU | CON-88A24024 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | APOLLO VALVES |
