VBALL FS FP RF 150 LO 6
PRODUCT FEATURES:
Two Position Locking Device (Valves 6” Full Port, 8” Standard Port and smaller)
Chevron Style Adjustable Stem Seals
ISO 5211 Mounting Pad Bolt Pattern
Slot Vented Ball for Thermal Expansion
Rated up to 150 psi Saturated Steam: ASME Class 150, 300, & 600 Valves
Rated up to 250 psi Saturated Steam: ASME Class 300 Valves Require the -65 Option
ASME Class 600 Valves Require the -24-80 Options or -38 Option
Anti-static Grounded Ball and Stem
Blowout-Proof Stem Design
Cast Boss for Bleed / Drain Port
Vacuum Service to 29 inches of Hg
NACE MR0175 (2000) Compliance on all 88A/88B Valves with Stainless Steel Ball & Stem
NACE MR0103 (2003) Compliance on all 88A/88B Valves with Stainless Steel Ball & Stem
In stock
Only 2 left
SKU
CON-88A24C24
PRODUCT DESCRIPTION:
The 88A-200 Carbon Steel Class 150 Standard Port Ball Valve is a superior solution that ensures efficient fluid flow control. This product is fortified with numerous features like a two-position locking device and chevron style adjustable stem seals. With its blowout-proof stem design, anti-static grounded ball and stem, and a cast boss for bleed/drain port, this valve ensures top-tier performance and reliability.
TYPICAL APPLICATIONS:
Oil and gas pipelines
Steam and utility systems
Chemical and petrochemical plants
Industrial water and gas services
Process and power generation facilities
TECHNICAL SPECIFICATIONS:
Brand: Apollo Valves
Item Model Number: 88A24C24
Product Type: Full Port Ball Valve
Series: 88A Series
Valve Size: 6"
Pressure Class: ASME Class 150
Body Material: Carbon Steel
Ball Material: 316 Stainless Steel
Stem Material: 316 Stainless Steel
Seat / Bearing Material: RPTFE
Packing: Graphite
Body - Seal: Sprial - wound graphite
Connection Type: Flanged (2 flange ends)
Port Type: Full Port
Pressure Rating: 150 psi class service
Flow Coeffcient (Cv): 4837
Standards: API 607, API 608, ASME B16.34, NACE MR0175/MR0103
Shipping Weight: 247.5 lbs

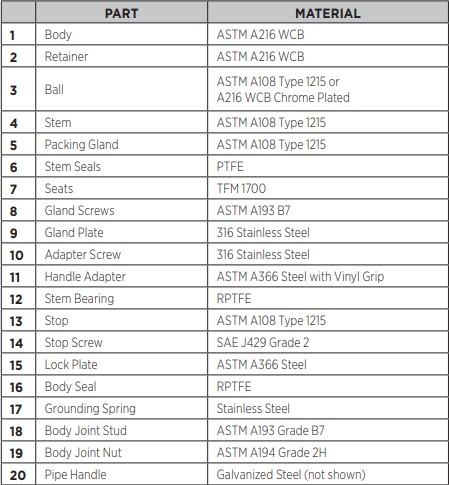

STANDARD MATERIAL LIST:
DIMENSIONS:
| SKU | CON-88A24C24 |
|---|---|
| Weight | 247.500000 |
| Manufacturer | APOLLO VALVES |
