VBALL FS FP RF 300 LO 3
PRODUCT FEATURES:
Full port design for unrestricted flow and minimal pressure loss
ASTM A216 WCB carbon steel body construction
ASME Class 300 raised face flanged connections
Blowout-proof stem for enhanced operational safety
Anti-static grounded ball and stem
Chevron-style adjustable stem seals
Slot-vented ball for thermal expansion protection
ISO 5211 actuator mounting pad
Vacuum service capability up to 29 in. Hg
Rated for saturated steam service
Two-position locking device on applicable sizes
Cast boss for optional bleed/drain port
Automation-ready for pneumatic and electric actuators
Fire-safe configurations available
Available in multiple trim and seat material options
COMMON APPLICATIONS:
Oil and gas processing
Steam systems
Industrial process piping
Chemical plants
Water treatment facilities
HVAC systems
Compressed air systems
Mechanical utility systems
Industrial automation systems
In stock
Only 1 left
SKU
CON-88A94024
PRODUCT DESCRIPTION:

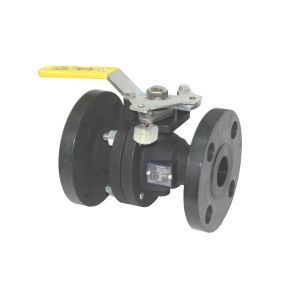

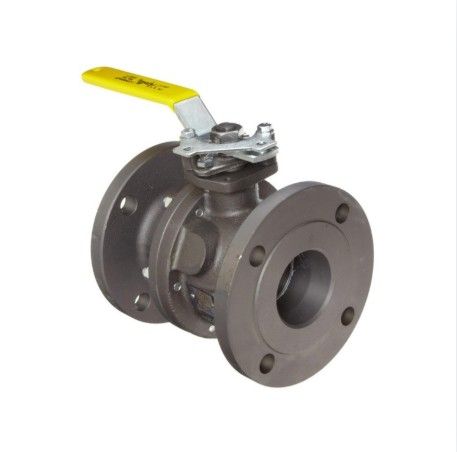

The Apollo 88A-900 Series Carbon Steel ASME Class 300 Flanged Full Port Ball Valve is a high-performance industrial valve designed for reliable shutoff and flow control in high-pressure piping systems. Constructed from durable ASTM A216 WCB carbon steel, this full-port valve provides maximum flow efficiency with minimal pressure loss, making it ideal for steam, oil, gas, water, and industrial process applications. Its ASME Class 300 flanged design, blowout-proof stem, anti-static protection, and ISO 5211 actuator mounting capability ensure dependable operation, enhanced safety, and easy automation integration in demanding industrial environments.
STANDARDS COMPLIANCE:
API 608
ASME B16.5
ASME B16.34
TECHNICAL SPECIFICATIONS:
Brand: Apollo Valves
Valve Series: 88A-900
Pressure Class: ASME Class 300
End Connections: Raised Face Flanged
Port Type: Full Port
Valve Operation: Lever Operated
Mounting Standard: ISO 5211
Temperature Rating: Up to 400ºF
Steam Service Rating: 150 PSIG Saturated Steam
Vacuum Rating: 29 in. Hg

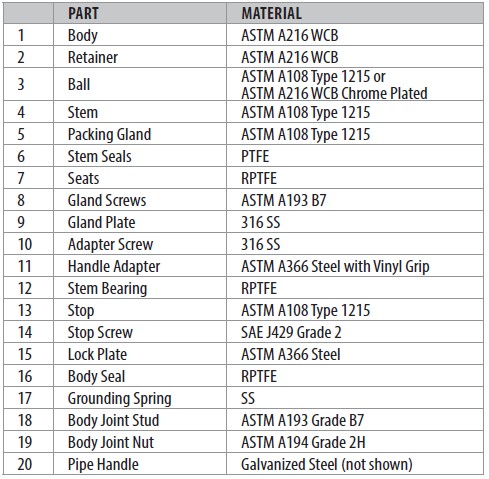

STANDARD MATERIAL LIST:

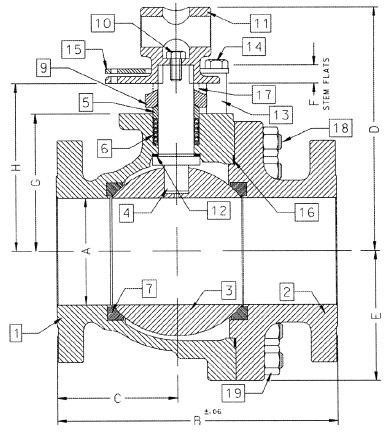

DIAGRAM:

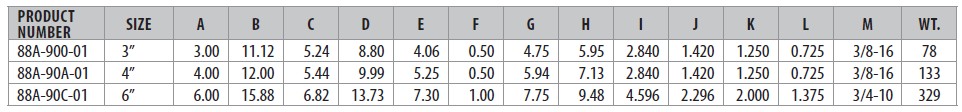

DIMENSIONS:
| SKU | CON-88A94024 |
|---|---|
| Weight | 9999.000000 |
| Manufacturer | APOLLO VALVES |
