VENTILATOR WALL 70CFM
PRODUCT FEATURES:
70 CFM airflow capacity for effective spot ventilation.
Designed for through-the-wall installation.
Suitable for rooms and areas up to approximately 65 sq. ft.
6-inch duct connection.
Galvanized steel housing provides durability and resistance to wear.
Built-in exterior wall cap helps simplify installation.
Includes an integrated bird screen.
White interior grille provides a clean appearance.
Motor features thermal protection and permanent lubrication.
Motor assembly uses a twist-lock design for easy installation and removal.
Housing can accommodate wall thicknesses from approximately 5¼" to 10".
UL Listed.
Suitable for use in hot and cold weather conditions.
In stock
Only 2 left
SKU
BROAN-512M
TTD629.00
INCLUDES:
[1] Ventilator Assembly
[1] Interior Grille
[1] Exterior Wall Cap with Bird Screen
[1] 6" Flexible Ducting
PRODUCT DESCRIPTION:

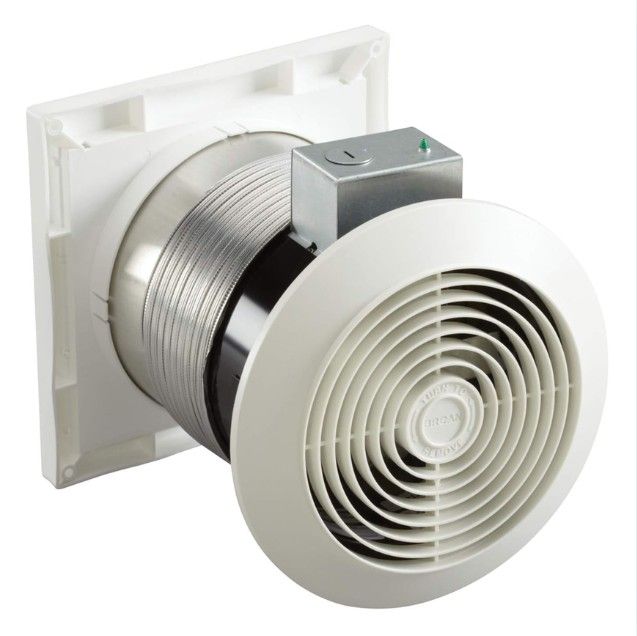

The Broan-NuTone 512M 70 CFM Through-the-Wall Ventilator is a durable wall-mounted ventilation solution designed to remove unwanted heat, humidity, odors, and stale air. Its 70 CFM airflow is suitable for areas up to approximately 65 square feet, including garages, kitchens, laundry rooms, workshops, and recreation rooms. The unit features a galvanized steel housing, exterior wall cap with bird screen, and a 6-inch duct connection for straightforward installation.
APPLICATIONS:
Garages
Kitchens
Laundry rooms
Workshops
Recreation rooms
Utility rooms
Small commercial/utility spaces
Spot ventilation near workbenches
Removal of heat and humidity
Odor and stale-air removal
TECHNICAL SPECIFICATIONS:
Brand: Broan-NuTone
Item Model Number: 512M
Product Type: Exhaust Fan / Through the all Ventilation Fan
Product Color: White
Amperage Rating: 0.7A
Product Dimensions [LxWxH]: 8.5mm x 8.5mm x 9.8mm
Domestic/Import: Import
Duct Diameter: 6"
Flow Rate: 70 CFM
Grille Material: Polymer
Housing Material: Steel
Housing Width: 6"
Humidity Sensing: No
Mounting Type: Wall
Voltage Rating: 120 V AC
Recommended Room Size: Up to 65 sq. ft.
Sound Level: 6.0 Sones
UL Listed: Yes
Energy Star Certified: No
Shipping Weight: 12 lbs
| SKU | BROAN-512M |
|---|---|
| Weight | 12.000000 |
| Manufacturer | BROAN NUTONE |
