VGA 800 BB SWXNPT 316 3/4. TRIM 12

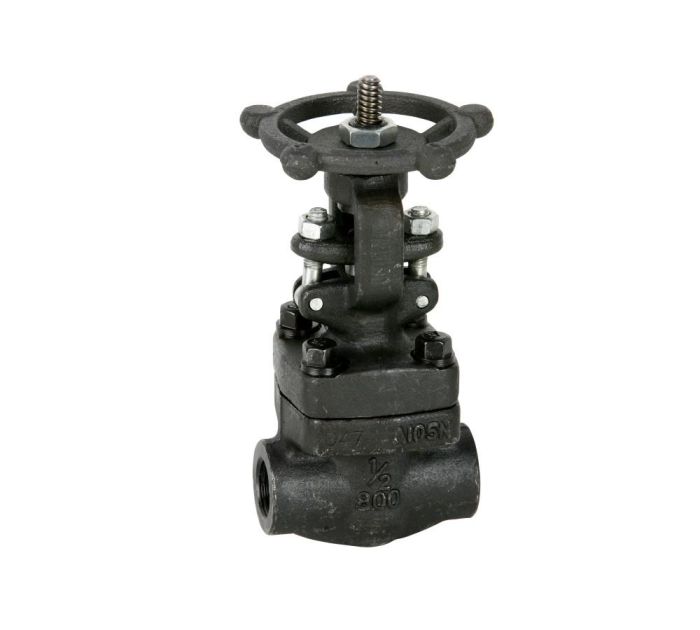

The 1/2" Class 800 forged steel gate valve is designed for shut-off service in high-pressure piping systems. Constructed from ASTM A105NLC forged carbon steel, it offers strength, durability, and reliability in demanding applications. This valve features a Bolted Bonnet design, Socket Weld end connections, and Outside Screw & Yoke (rising stem). Equipped with Trim 8 internals, it ensures dependable sealing and performance. Manufactured in accordance with API 602 and ASME B16.34, it is suitable for oil and gas, chemical, and power generation services.
Sizes
Varies (see item description)
Pressure Class
1500
Design specifications & Compliance
API 602
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
Socket Weld
In stock
Only 1 left
SKU
310-SMM1019760
The 1/2" Class 800 forged steel gate valve is designed for shut-off service in high-pressure piping systems. Constructed from ASTM A105NLC forged carbon steel, it offers strength, durability, and reliability in demanding applications. This valve features a Bolted Bonnet design, Socket Weld end connections, and Outside Screw & Yoke (rising stem). Equipped with Trim 8 internals, it ensures dependable sealing and performance. Manufactured in accordance with API 602 and ASME B16.34, it is suitable for oil and gas, chemical, and power generation services.

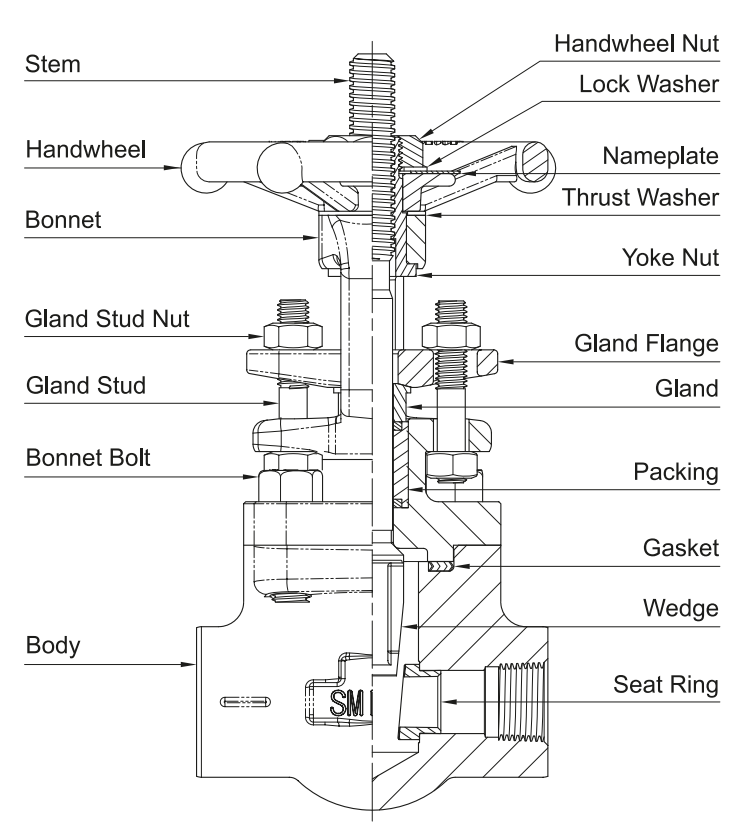

Diagram:

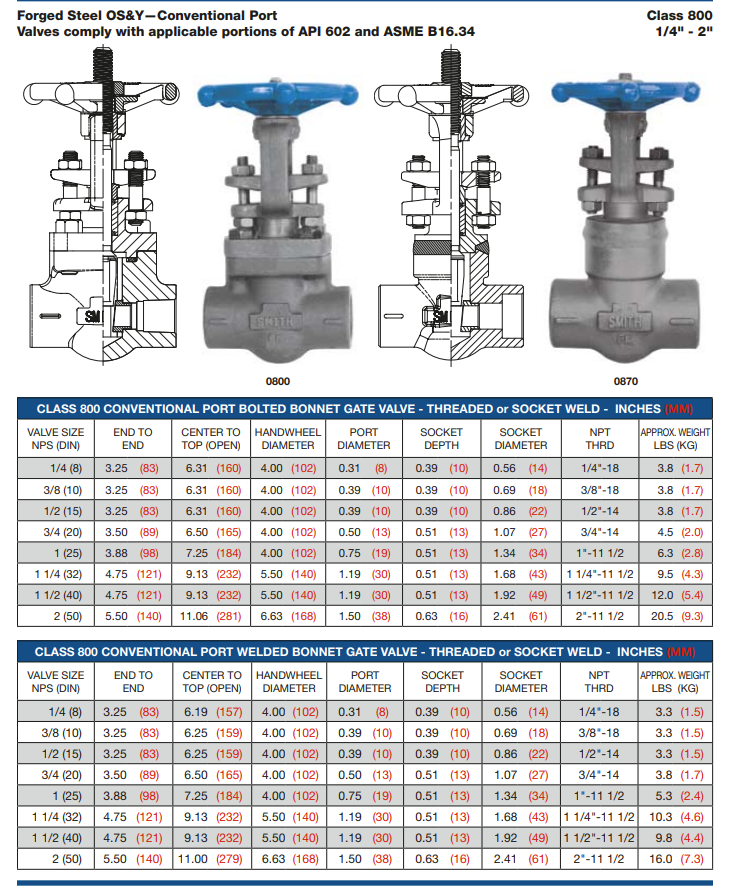

DIMENSIONAL DATA:

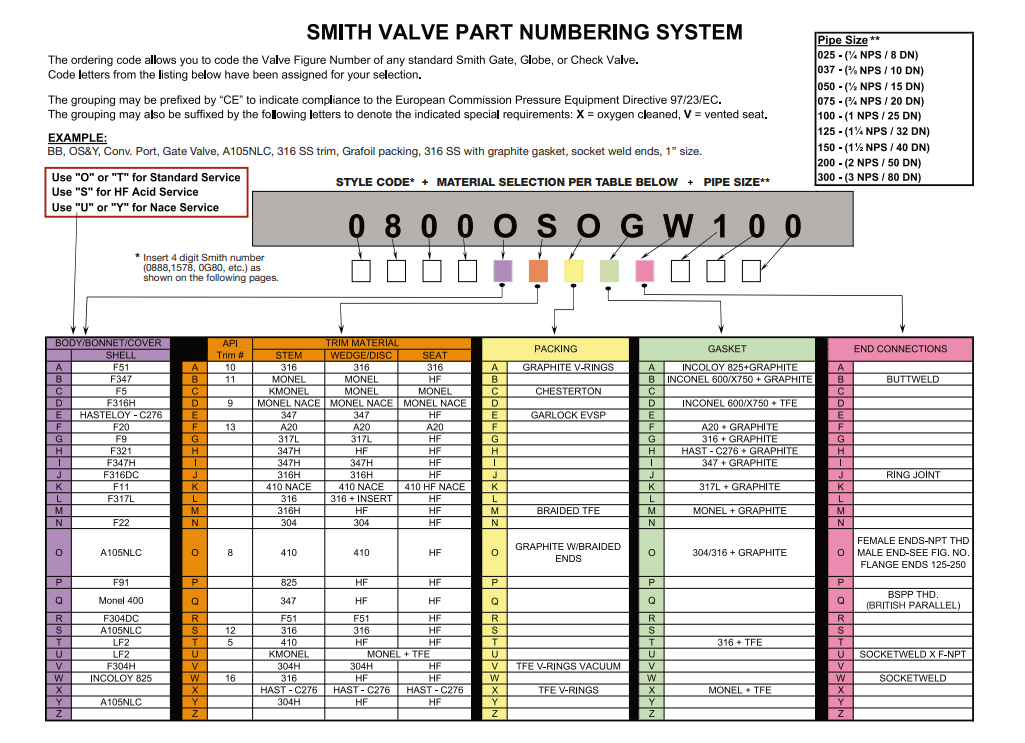

PRODUCT NUMBERING SYSTEM:
| SKU | 310-SMM1019760 |
|---|---|
| Weight | 5.000000 |
| Manufacturer | SMITH VALVES. |
