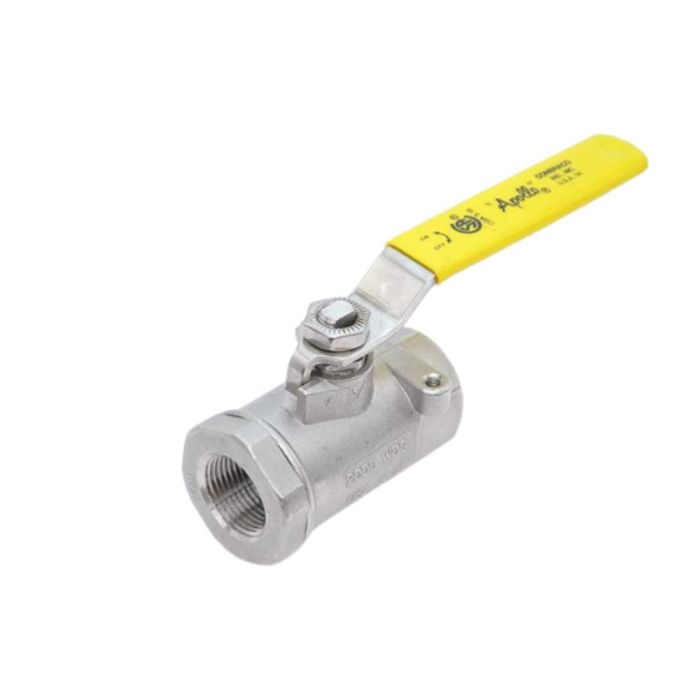

VLV BALL 2000# 316SS 3/4"
PRODUCT FEATURES
01: standard configuration
Investment cast components
Reinforced seats
Mounting pad for easy actuator mounting
Blow-out proof stem design
Adjustable packing gland
Vacuum service to 29 in Hg
2000 psig CWP
304 stainless steel with vinyl grip handle
MPTFE stem packing
ASTM A351-CF8M or A276-316 stainless steel retainer
A276-316 stainless steel gland nut/stem
18-8 stainless steel lever nut
01: standard configuration
Investment cast components
Reinforced seats
Mounting pad for easy actuator mounting
Blow-out proof stem design
Adjustable packing gland
Vacuum service to 29 in Hg
2000 psig CWP
304 stainless steel with vinyl grip handle
MPTFE stem packing
ASTM A351-CF8M or A276-316 stainless steel retainer
A276-316 stainless steel gland nut/stem
18-8 stainless steel lever nut
In stock
Only 4 left
SKU
CON-7610401A
INCLUDES
(1) 3/4" Apollo 76-104-01A - Stainless Steel, Standard Port, NPT, Ball Valve, with Mounting Pad
PRODUCT DESCRIPTION
Apollo™ 2-Piece Ball Valve, Series: 76-100, 3/4 in Nominal, FNPT, 150 psig Saturated Steam Pressure Rating, Standard Port, 316 Stainless Steel Ball, 2.96 in Inlet to Outlet Length, 2.03 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem Trim, Softgoods Material: RPTFE Seat/PTFE Seal, Domestic
TECHNICAL SPECIFICATION
SKU: 7610401A
Brand: Apollo™
Item Weight: 1.27lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 150 psi
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.96 in
Manufacturer Name: Apollo Conbraco
Series: 76-100
Top to Inlet Center: 2.03 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Mounting Pad, Adjustable Packing Gland
Domestic/Import: Domestic
Country of Origin: US
Shipping Weight:2lbs
(1) 3/4" Apollo 76-104-01A - Stainless Steel, Standard Port, NPT, Ball Valve, with Mounting Pad
PRODUCT DESCRIPTION
Apollo™ 2-Piece Ball Valve, Series: 76-100, 3/4 in Nominal, FNPT, 150 psig Saturated Steam Pressure Rating, Standard Port, 316 Stainless Steel Ball, 2.96 in Inlet to Outlet Length, 2.03 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Stem Trim, Softgoods Material: RPTFE Seat/PTFE Seal, Domestic
TECHNICAL SPECIFICATION
SKU: 7610401A
Brand: Apollo™
Item Weight: 1.27lbs
Nominal Size: 3/4 in
End Style: FNPT
Pressure Class: 250 lb
Pressure Rating: 150 psi
Body Material: Stainless Steel
Port Type: Standard
Softgoods Material: MPTFE/PTFE
Ball Material: 316 Stainless Steel
Inlet to Outlet Length: 2.96 in
Manufacturer Name: Apollo Conbraco
Series: 76-100
Top to Inlet Center: 2.03 in
Trim Material: 316 Stainless Steel/RPTFE
Type: 2-Piece
Includes: Mounting Pad, Adjustable Packing Gland
Domestic/Import: Domestic
Country of Origin: US
Shipping Weight:2lbs
| SKU | CON-7610401A |
|---|---|
| Weight | 2.000000 |
| Manufacturer | APOLLO VALVES |
