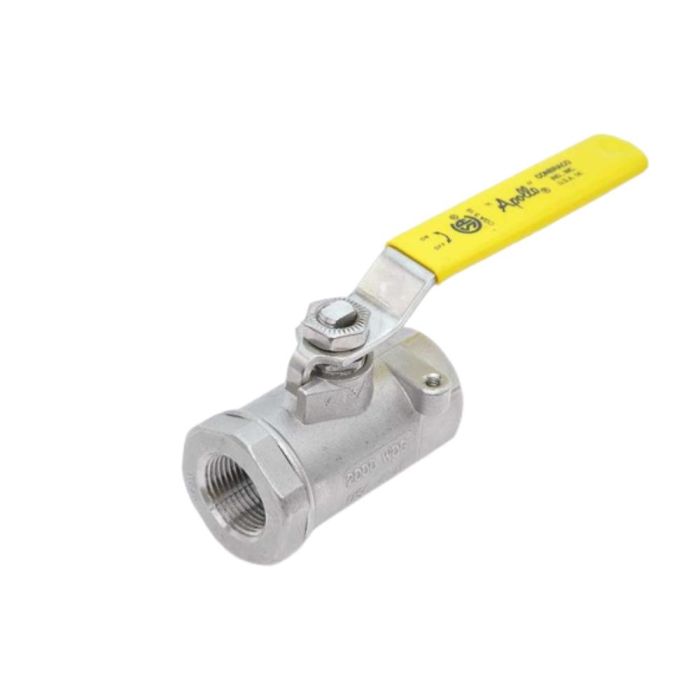

VLV BALL FNPT 2M SS 1/2" W/MOUNTING PAD FULL PORT
PRODUCT FEATURES
Investment cast components
Mounting pad for easy actuator mounting
Blow-out proof stem design
Stainless steel lever and nut
Vacuum service to 29 in Hg
304 stainless steel with vinyl lever and grip
18-8 stainless steel lever nut
PTFE body seal
150 psig saturated steam
MPTFE stem packing and PTFE body seal
Investment cast components
Mounting pad for easy actuator mounting
Blow-out proof stem design
Stainless steel lever and nut
Vacuum service to 29 in Hg
304 stainless steel with vinyl lever and grip
18-8 stainless steel lever nut
PTFE body seal
150 psig saturated steam
MPTFE stem packing and PTFE body seal
In stock
Only 2 left
SKU
CON-7610301A
INCLUDES
(1) Apollo™ 76-103-01A, 76-100 Series 2-Piece Standard Configuration Ball Valve, 1/2 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
PRODUCT DESCRIPTION
Apollo 76-103-01-A Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1/2 in Nominal, FNPT End Style, 2000 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.12 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, Domestic
TECHNICAL SPECIFICATIONS
SKU: 7610301A
Item: Ball Valve
Body Material: CF8M, 316 Stainless Steel
Port: Standard
Connection Type: Threaded (NPT)
Size: 1/2"
Max. Pressure: 2000 CWP
Ball Material: 316 Stainless Steel
Handle Material: 304 Stainless Steel
Handle Type: Lever
Seat Material: RPTFE
Stem Packing: MPTFE
Stem Bearing: RPTFE
Stem Material: 316 Stainless Steel
Body Seal: PTFE
Item Weight: 0.63lbs
Shipping Weight: 1lb
(1) Apollo™ 76-103-01A, 76-100 Series 2-Piece Standard Configuration Ball Valve, 1/2 in Nominal, FNPT End Style, 150 lb, Stainless Steel Body, Standard Port, MPTFE/PTFE Softgoods, Domestic
PRODUCT DESCRIPTION
Apollo 76-103-01-A Standard Configuration Ball Valve, 2-Piece, Series: 76-100, 1/2 in Nominal, FNPT End Style, 2000 CWP (psig) / 150 psig Saturated Steam Pressure, Media: Water, Lever Handle Actuator, 316 Stainless Steel Ball, 2.23 in Inlet to Outlet Length, 1.12 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel/PTFE Trim, Domestic
TECHNICAL SPECIFICATIONS
SKU: 7610301A
Item: Ball Valve
Body Material: CF8M, 316 Stainless Steel
Port: Standard
Connection Type: Threaded (NPT)
Size: 1/2"
Max. Pressure: 2000 CWP
Ball Material: 316 Stainless Steel
Handle Material: 304 Stainless Steel
Handle Type: Lever
Seat Material: RPTFE
Stem Packing: MPTFE
Stem Bearing: RPTFE
Stem Material: 316 Stainless Steel
Body Seal: PTFE
Item Weight: 0.63lbs
Shipping Weight: 1lb
| SKU | CON-7610301A |
|---|---|
| Weight | 1.000000 |
| Manufacturer | APOLLO VALVES |
