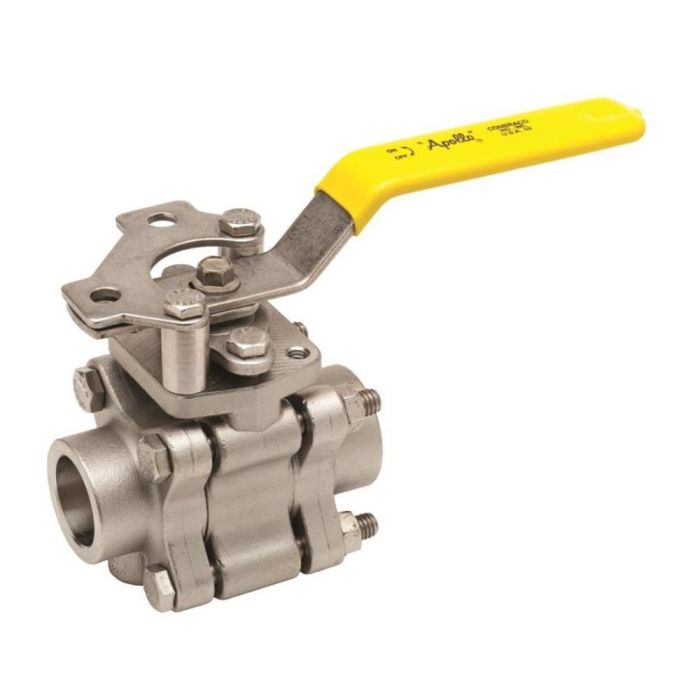

VLV BALL SW 1M 316 1/2"
PRODUCT FEATURES
01 - standard configuration
Stainless steel trim and hardware
Swing out center section
Pressure balanced solid ball
Compression controlled RPTFE gaskets
Anti-blowout one piece bottom entry stem
Two-position locking device
Adjustable multi-piece PTFE "V" style packing
Fully machined ISO 5211 mounting
Cast bosses on the center-section and end caps for bleed and drain ports
Vacuum service to 29 in Hg
150 psig saturated steam
PTFE packing
01 - standard configuration
Stainless steel trim and hardware
Swing out center section
Pressure balanced solid ball
Compression controlled RPTFE gaskets
Anti-blowout one piece bottom entry stem
Two-position locking device
Adjustable multi-piece PTFE "V" style packing
Fully machined ISO 5211 mounting
Cast bosses on the center-section and end caps for bleed and drain ports
Vacuum service to 29 in Hg
150 psig saturated steam
PTFE packing
In stock
Only 10 left
SKU
CON-86A20301
INCLUDES
(1) Apollo™ 86A20301 86A-200 86A-200 3-Piece Ball Valve, 1/2 in Nominal, Socket Weld End Style, Stainless Steel Body
PRODUCT DESCRIPTION
Apollo™ Ball Valve, 3-Piece, Series: 86A-200, 1/2 in Nominal, Socket Weld End Style, 1500 psig CWP Pressure, Full Port, Lever Operated Actuator, Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
TECHNICAL SPECIFICATIONS
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: Socket Weld
Inlet to Outlet Length: 2.8 in
Nominal Size: 1/2 In
Port Type: Full
Pressure Rating: 1500 psig CWP
Series: 86A-200
Softgoods Material: PTFE
Top to Inlet Center: 3.02 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Item Weight: 6.9lbs
Shipping Weight: 7lbs
(1) Apollo™ 86A20301 86A-200 86A-200 3-Piece Ball Valve, 1/2 in Nominal, Socket Weld End Style, Stainless Steel Body
PRODUCT DESCRIPTION
Apollo™ Ball Valve, 3-Piece, Series: 86A-200, 1/2 in Nominal, Socket Weld End Style, 1500 psig CWP Pressure, Full Port, Lever Operated Actuator, Stainless Steel Ball, 2.8 in Inlet to Outlet Length, 3.02 in Top to Inlet Center, Stainless Steel Body, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
TECHNICAL SPECIFICATIONS
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Body Material: Stainless Steel
Domestic/Import: Domestic
End Style: Socket Weld
Inlet to Outlet Length: 2.8 in
Nominal Size: 1/2 In
Port Type: Full
Pressure Rating: 1500 psig CWP
Series: 86A-200
Softgoods Material: PTFE
Top to Inlet Center: 3.02 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Item Weight: 6.9lbs
Shipping Weight: 7lbs
| SKU | CON-86A20301 |
|---|---|
| Weight | 7.000000 |
| Manufacturer | APOLLO VALVES |
