VLV BALL SW 1M 316 2"
PRODUCT FEATURES
Swing out center section
Pressure balanced solid ball
Anti-blowout one piece bottom entry stem
Two-position locking device
Adjustable multi-piece PTFE V style packing
Cast bosses on the center-section and end caps for bleed and drain ports
Vacuum service to 29 in Hg
150 psig saturated steam
Swing out center section
Pressure balanced solid ball
Anti-blowout one piece bottom entry stem
Two-position locking device
Adjustable multi-piece PTFE V style packing
Cast bosses on the center-section and end caps for bleed and drain ports
Vacuum service to 29 in Hg
150 psig saturated steam
In stock
Only 3 left
SKU
CON-86A20801
INCLUDES

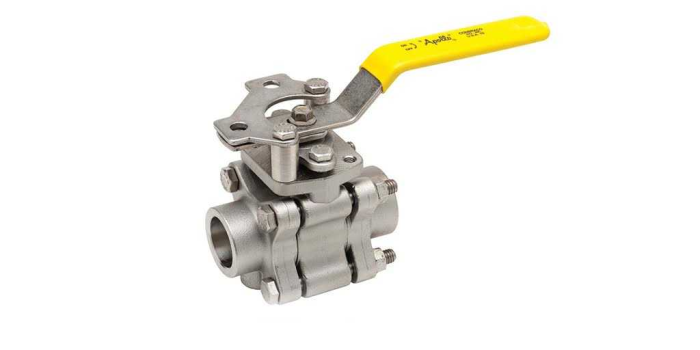

(1) Apollo™ 86A-208-01 86A-200 3-Piece Ball Valve With Enclosed Fasteners, 2 in Nominal, Socket Weld End Style, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
PRODUCT DESCRIPTION
Apollo™, 86A20801, Ball Valve, 3-Piece, Series: 86A-200, 2 in Nominal, Socket Weld End Style, 1500 psi CWP Pressure, Full Port, Media: Gas/Water, 2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 5.86 in Inlet to Outlet Length, 5.47 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Standards and Approvals: API 608 | ASME B16.11/B16.34 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | CE Marked | CGA 3.16-M88 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
TECHNICAL SPECIFICATIONS
Brand: Apollo™
Item Weight: 27.6 lbs
Nominal Size: 2 in
End Style: Socket Weld
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 5.86 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 2 in
Series: 86A-200
Top to Inlet Center: 5.47 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Domestic/Import: Domestic
Country of Origin: US
Shipping Weight: 28lbs
(1) Apollo™ 86A-208-01 86A-200 3-Piece Ball Valve With Enclosed Fasteners, 2 in Nominal, Socket Weld End Style, Stainless Steel Body, Full Port, PTFE Softgoods, Domestic
PRODUCT DESCRIPTION
Apollo™, 86A20801, Ball Valve, 3-Piece, Series: 86A-200, 2 in Nominal, Socket Weld End Style, 1500 psi CWP Pressure, Full Port, Media: Gas/Water, 2 in Orifice, Lever Operated Actuator, Stainless Steel Ball, 5.86 in Inlet to Outlet Length, 5.47 in Top to Inlet Center, 316 Stainless Steel Trim, PTFE Softgoods, Domestic
Standards and Approvals: API 608 | ASME B16.11/B16.34 | ASTM A351 CF8M Body | ASTM A276 Ball/Stem | CE Marked | CGA 3.16-M88 | NACE MR0175/MR0103 | PROP65: Cancer and Reproductive Harm
TECHNICAL SPECIFICATIONS
Brand: Apollo™
Item Weight: 27.6 lbs
Nominal Size: 2 in
End Style: Socket Weld
Pressure Rating: 1500 psi CWP
Body Material: Stainless Steel
Port Type: Full
Softgoods Material: PTFE
Actuator Type: Lever Operated
Ball Material: Stainless Steel
Inlet to Outlet Length: 5.86 in
Manufacturer Name: Apollo Conbraco
Media: Gas/Water
Orifice Size: 2 in
Series: 86A-200
Top to Inlet Center: 5.47 in
Trim Material: 316 Stainless Steel
Type: 3-Piece
Includes: Enclosed Fastener
Domestic/Import: Domestic
Country of Origin: US
Shipping Weight: 28lbs
| SKU | CON-86A20801 |
|---|---|
| Weight | 28.000000 |
| Manufacturer | APOLLO VALVES |
