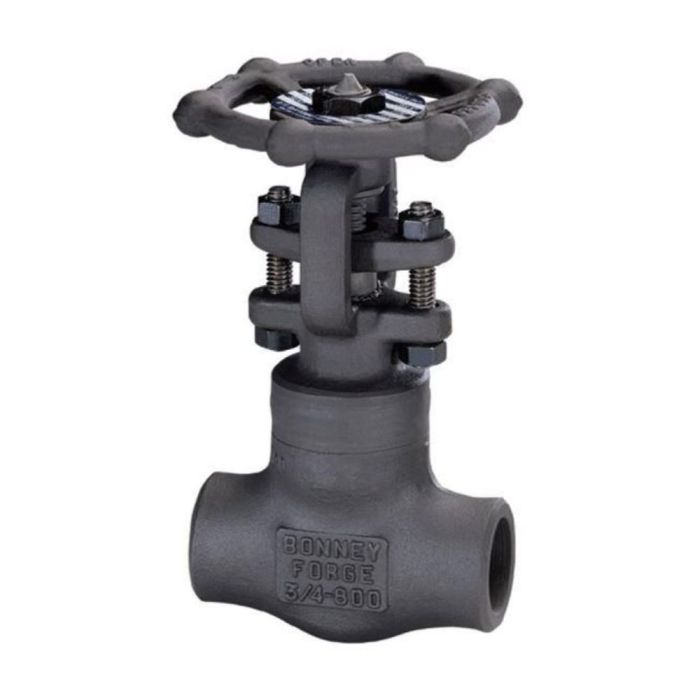

VLV GATE 800 WB SW 3/4. A105NLC OS&Y TR8
This forged steel gate valve is designed for reliable shutoff service in demanding applications. It features a welded bonnet (WB) construction for secure sealing, with available end connections such as socketweld (SW), threaded (NPT). The outside screw & yoke (OS&Y) design provides clear visual stem position indication and protects threads from process fluid. Trim options are available for improved durability, sealing performance, and extended service life.
Sizes
Varies (see item description)
Pressure Class
800
Design specifications & Compliance
API 602
ASME B16.34
NACE MR-0175
NACE MR-0103
End Connections
Threaded
In stock
Only 1 left
SKU
310-SM600301
This forged steel gate valve is designed for reliable shutoff service in demanding applications. It features a welded bonnet (WB) construction for secure sealing, with available end connections such as socketweld (SW), threaded (NPT). The outside screw & yoke (OS&Y) design provides clear visual stem position indication and protects threads from process fluid. Trim options are available for improved durability, sealing performance, and extended service life.
Diagram:
DIMENSIONAL DATA:
PRODUCT NUMBERING SYSTEM:
| SKU | 310-SM600301 |
|---|---|
| Weight | 5.000000 |
| Manufacturer | SMITH VALVES. |
