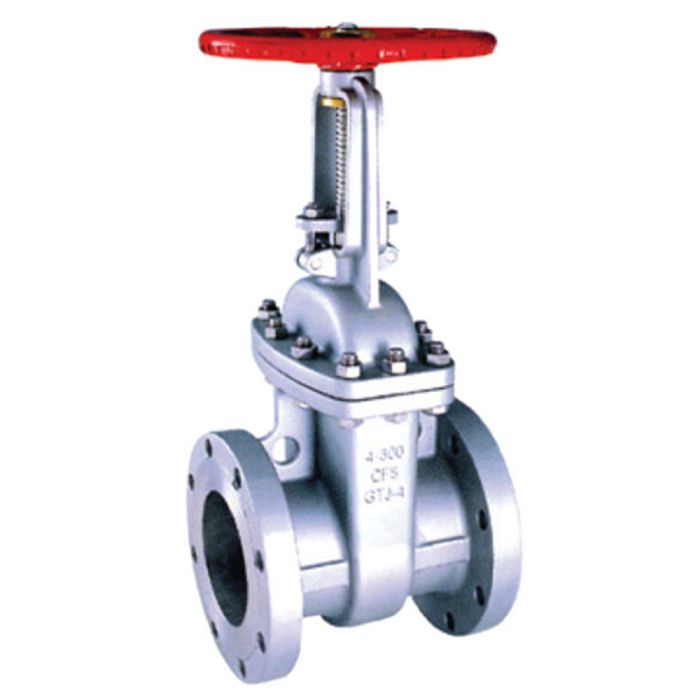

VLV GATE RF 150# 316 6". BB TRIM 12 CF8M
Stainless steel gate valves are utilized in the chemical, petrochemical, oil & gas, food, paper, and pharmaceutical processing industries worldwide. This valve is manufactured with a forged body construction suitable for Class 150 service, with a 6-inch size. Shell materials are in accordance with ASTM A351 Grade CF8M, with other stainless steel grades available upon request. Stainless steel valves are designed and manufactured in conformity with API, ANSI, BS, and other recognized standards, ensuring quality that meets the stringent requirements of industrial applications.
Design Features:
-
The valve incorporates an H-shaped flexible wedge for sizes 3" and larger in Class 150 service.
-
The H-shaped wedge provides mechanical flexibility, ensuring secure contact with the body seat, reducing seat wear, lowering operating torque, and achieving a tighter closure.
-
This design is particularly important for large gate valves operating under high pressure and temperature, where temporary deformation may occur.
End Connections:
-
R.F. Flanged Ends to ASME B16.5
-
B.W. Ends to ASME B16.25
-
R.T.J. Flanged Ends to ASME B16.5
-
Consult us for larger sizes
Stainless steel valves are specialized products, produced through careful design, material selection, manufacturing, quality control, and experience to ensure a reliable final product.
In stock
Only 2 left
SKU
310-VGS15F62NG
Stainless Steel Gate Valve Description
Stainless steel gate valves are utilized in the chemical, petrochemical, food, paper, and pharmaceutical processing industries worldwide. This 6" flanged gate valve rated at 150# is constructed with a 316 stainless steel body and CF8M trim (Trim 12), designed to provide reliable performance in demanding applications. Stainless steel valves are specialized products developed through rigorous design, material selection, manufacturing, and quality control processes to meet stringent industrial requirements.
VALVE SHELL MATERIALS:
-
Shell material: ASTM A351 Grade 316
-
Optional materials: CF8, CF3, CF3M, CF8C, CN7M, A890 Gr 4A (UNS J92205), A890 Gr 6A (UNS J93380)
ASTM DESIGNATION & MAXIMUM WORKING TEMPERATURE ?(?):
| ASTM Grade | Max Working Temperature ? (?) | Notes |
|---|---|---|
| A351 Gr. 316 | 1500? (816?) | At temperatures over 1000?, use only if carbon content ?0.04% |
| A351 Gr. CF8M | 1500? (816?) | ? |
| A351 Gr. CF8 | 1500? (816?) | ? |
| A351 Gr. CF3 | 800? (427?) | – |
| A351 Gr. CF3M | 850? (454?) | – |
| A351 Gr. CF8C | 1500? (816?) | ? |
| A351 Gr. CN7M | 300? (149?) | – |
| A890 Gr 4A (UNS J92205) | 600? (316?) | – |
| A890 Gr 6A (UNS J93380) | 600? (316?) | – |
? At temperatures over 1000?, use material only when the carbon content is 0.04% or higher.
OPTIONAL BONNET FLANGE GASKET MATERIAL:
Depending on service conditions, various materials are available optionally for flange gasket and stem packing.
-
Gasket materials:
-
Glass fiber sheet
-
Spiral wound material (Graphite or PTFE)
-
PTFE
-
Metal ring
-
Graphite
-
-
Packing materials:
-
PTFE
-
Graphite
-
Glass fiber sheet
-
H-SHAPED FLEXIBLE WEDGE (OPTIONAL):
-
PK adopts an H-shaped flexible wedge for sizes 3" and larger for Class 150, and 2" and higher for Class 300/600.
-
Features: Mechanical flexibility to adjust to body seat shape for secure contact.
-
Advantages: Reduces operating torque, decreases seat wear, and ensures tighter valve closing, especially under high pressure and temperature conditions where temporary deformation may occur.
| SKU | 310-VGS15F62NG |
|---|---|
| Weight | 5.000000 |
| Manufacturer | VELAN VALVES. |
