VSCHK 800# NPT 316 1", A182F316 OS&Y TR12
Smith Valves check valves are industrial non-return valves designed to automatically allow fluid to flow in one direction while preventing reverse flow in a piping system. These valves operate using internal components such as a piston or disc that responds to pressure changes in the pipeline, opening with forward flow and closing when flow stops or reverses. Built for demanding industrial environments, Smith check valves are typically manufactured from durable materials such as forged carbon steel and stainless steel, providing reliable performance in high-pressure and high-temperature applications. They are commonly used in industries such as oil and gas, petrochemical processing, and power generation to protect pumps, compressors, and other equipment from potential damage caused by backflow.
SIZES:
1/2" - 2"
STYLES:
SW80, SW81, SW83, SW86
PRESSURE CLASS:
150, 300, 600, 800
DESIGN SPECIFICATIONS & COMPLIANCE:
API 598/602
ASME B16.34
NACE MR-0175/0103
END CONNECTIONS:
Threaded
Socketweld
Flanged
MATERIALS:
A105
LF2
F316DC
In stock
Only 1 left
SKU
312-SW80JSOG100
Smith Valves check valves are industrial non-return valves designed to automatically allow fluid to flow in one direction while preventing reverse flow in a piping system. These valves operate using internal components such as a piston or disc that responds to pressure changes in the pipeline, opening with forward flow and closing when flow stops or reverses. Built for demanding industrial environments, Smith check valves are typically manufactured from durable materials such as forged carbon steel and stainless steel, providing reliable performance in high-pressure and high-temperature applications. They are commonly used in industries such as oil and gas, petrochemical processing, and power generation to protect pumps, compressors, and other equipment from potential damage caused by backflow.

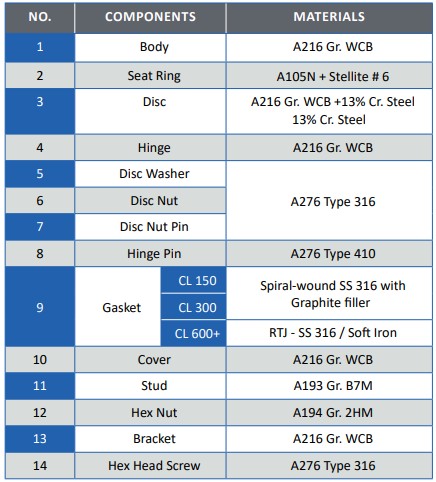

BILL OF MATERIALS:

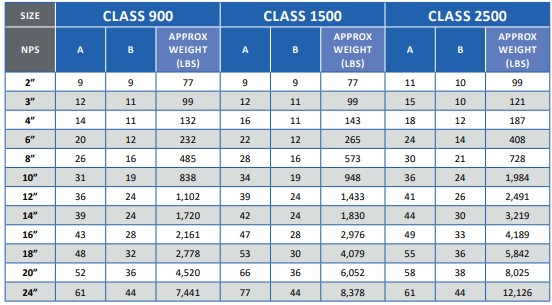

CHECK VALVE WEIGHTS AND DIMENSIONS:

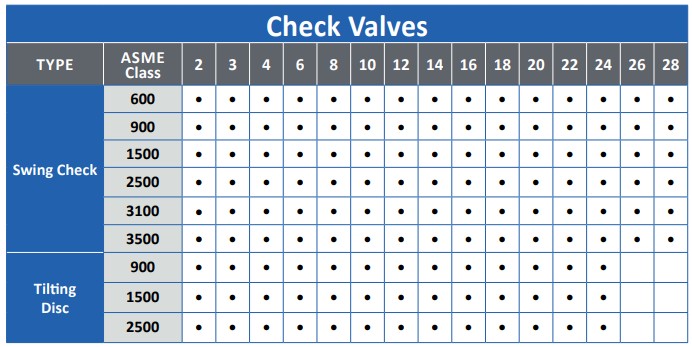

PRESSURE SEAL BONNET VALVES:

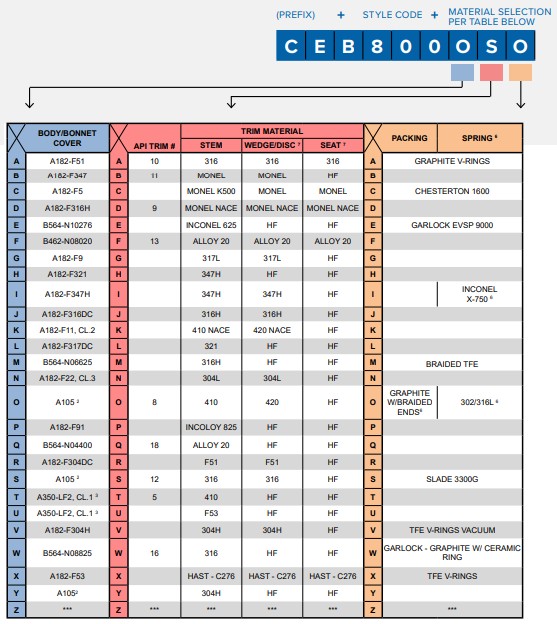

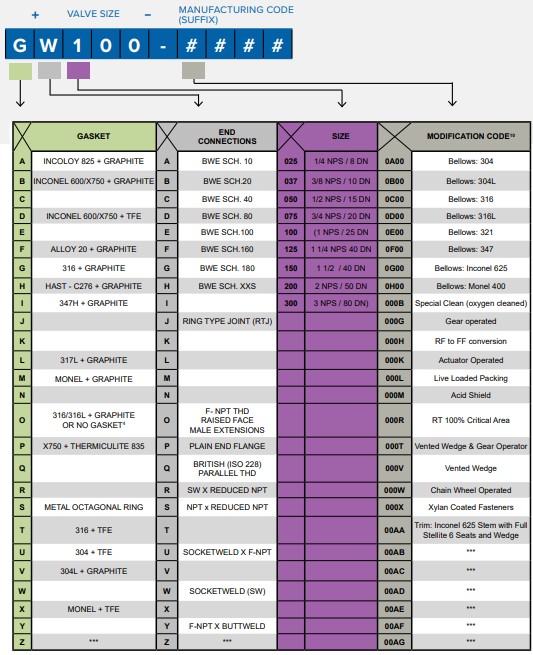

PART NUMBERING SYSTEM:
| SKU | 312-SW80JSOG100 |
|---|---|
| Manufacturer | SMITH VALVES. |
