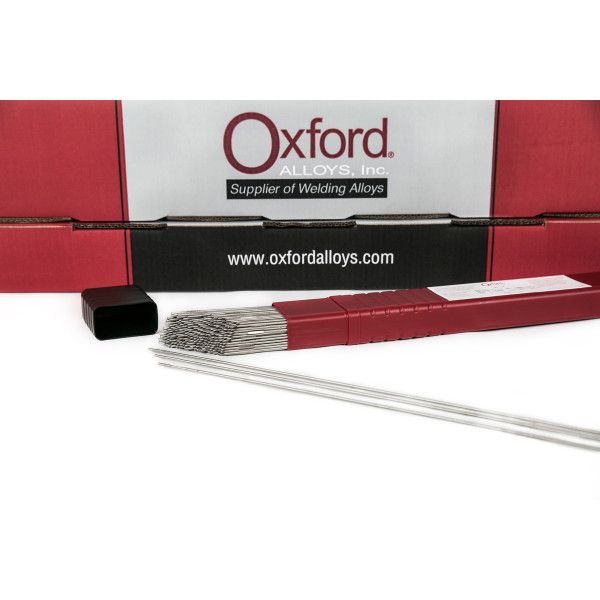

ROD TIG ER4043 3/32"X36"
PRODUCT FEATURES:
A 5% silicon aluminum recommended for welding 3003, 3004, 5052, 6067,6063 and castina allovs 43,355,356 and 214.
Has a melting range of 1065 - ll70°F and a density of .097 lbs/cu in. The post -anodizing color tint of the weld area is gray.
TIG Wire marked with AWS classification
Ultra clean finishing
Certified Material Test Reports on all heats
In stock
Only 156 left
SKU
OX-4043332X36
TTD99.00
PRODUCT DESCRIPTION:
Oxford Alloys 4043 TIG Welding Wire is a 5% silicon aluminum filler metal designed for welding heat-treatable base alloys, particularly the 6XXX series. Its high silicon content enhances fluidity and reduces cracking, making it ideal for applications requiring a smooth bead appearance and minimal post-weld cleanup.
MECHANICAL PROPERTIES:
Tensile Strength:27,115 psi (187 MPa)
Yield Strength:18,125 psi (125 MPa)
Elongation: 8%
WELDING PARAMETERS:
Amperage Range (TIG): 125–160 amps
Voltage: 15–20 volts
Shielding Gas: 100% Argon
Welding Positions: All positions
APPLICATIONS:
Heat-treatable aluminum alloys (e.g., 6061, 6063)
Aluminum/silicon cast alloys (e.g., grades 43, 355, 356, 214)
Automotive parts, truck trailers, and bicycles
Repair welding of aluminum castings
CHEMICAL COMPOSITION:
SI: 4.5 - 6.0
Fe: 0.8 max
Cu: 0.30 max
Mn: 0.05 max
Mg: 0.05 max
Zn: 0.10 max
Ti: 0.20 max
Al: Bal.
PACKAGING:
Diameter: 3/32"
Length: 36"
Weight: 10
| SKU | OX-4043332X36 |
|---|---|
| Weight | 10.000000 |
| Manufacturer | OXFORD ALLOY |
